The VIP-EXT-T400-1 4K HDMI & USB/KM CAT and Fiber AV over IP Extender Solution provides UltraHD/4K60 4:4:4 HDR video, audio, RS-232, IR, and USB 1.1, 2.0, and USB camera signal transport over IP networks. The VIP-T400 AV over IP Extender Solution can be used as a point-to-point extension system supporting distances up to 120 meters over CAT6a, and up to 2 kilometers over SFP Single Mode Fiber, and is also compatible with MultiMode SFP for shorter distances. The VIP-T400 is designed to handle multiple signals types for applications that require reliable distribution, switching, matrixing, and layered matrix switching. The VIP-T400 supports audio insertion and extraction. Multiple control options are available including the VIP-T400's own rich API, PureLink’s VPX IP Video Management Software, and QSC plugin. Providing complete and reliable AV over IP extension, the VIP-T400 is the ideal solution for your application. The VIP-T400 is TAA compliant, making it perfect for Government and Military applications and critical viewing 24/7/365 installations.
Key Features
- 4K60 4:4:4 HDR
- Ultra-low latency (<17mS)
- Data rate 300 Mbps typical; 50-850 Mbps range, variable
- Fiber or CAT transport – 1G port
- Extend signals up to 120 meters over CAT6, 240 meters using a network switch, and up to 2km with SFP fiber single mode
- HDCP 2.2 compliant
- USB 1.1 and 2.0 including USB camera support
- Comprehensive diagnostics via API - device discovery, signal data, and EDID
- Supports instant switching (same resolutions)
- Multiple control interfaces - built-in web interface, front panel buttons, VPX Management Software, QSC modules, and 3rd party control development via API
- Built-in video wall processing (up to 8x8)

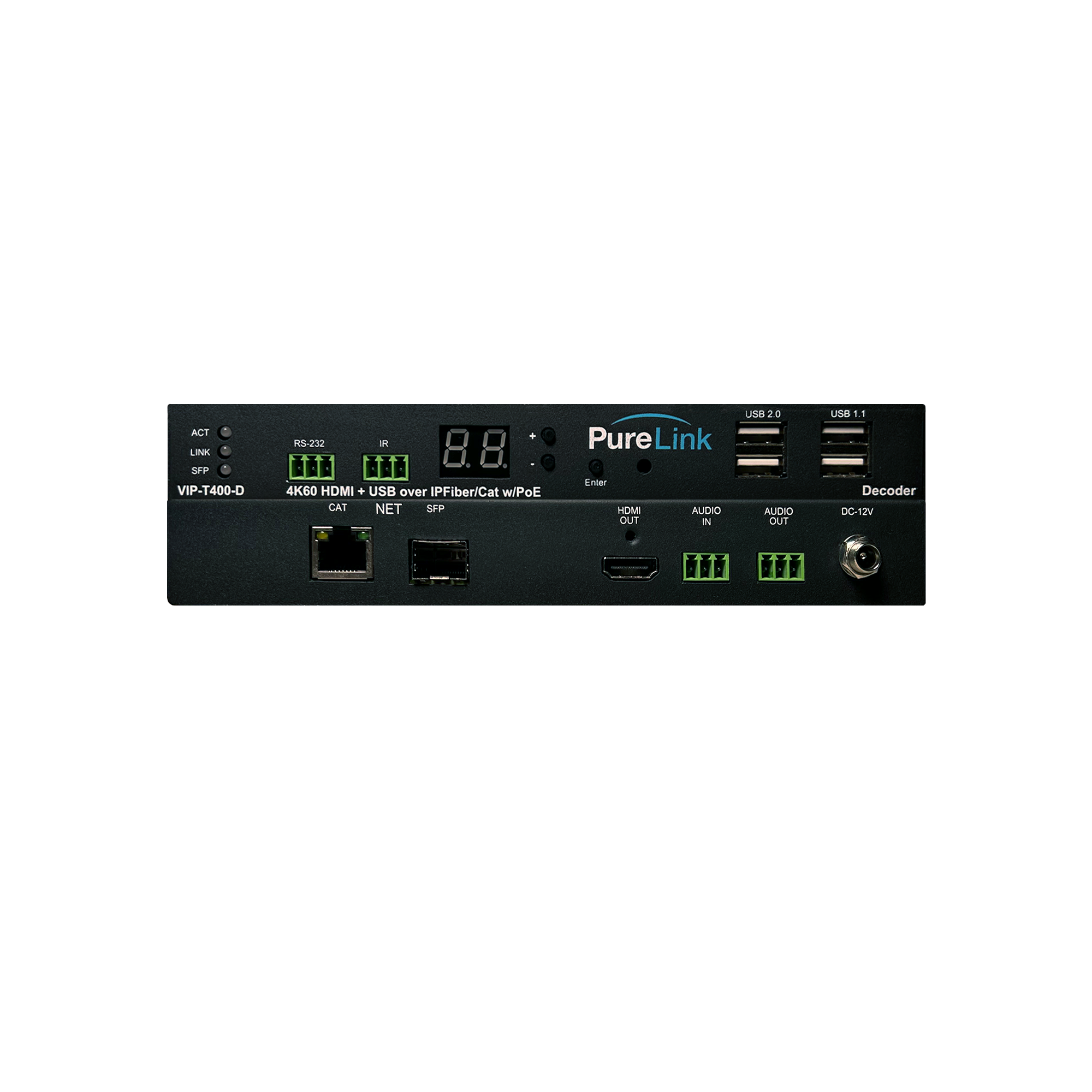

- Built-in scaler on the receiver (decoder)
- Image rotation; 90, 180 degrees
- IR and RS-232 extension
- TCP/IP to RS-232

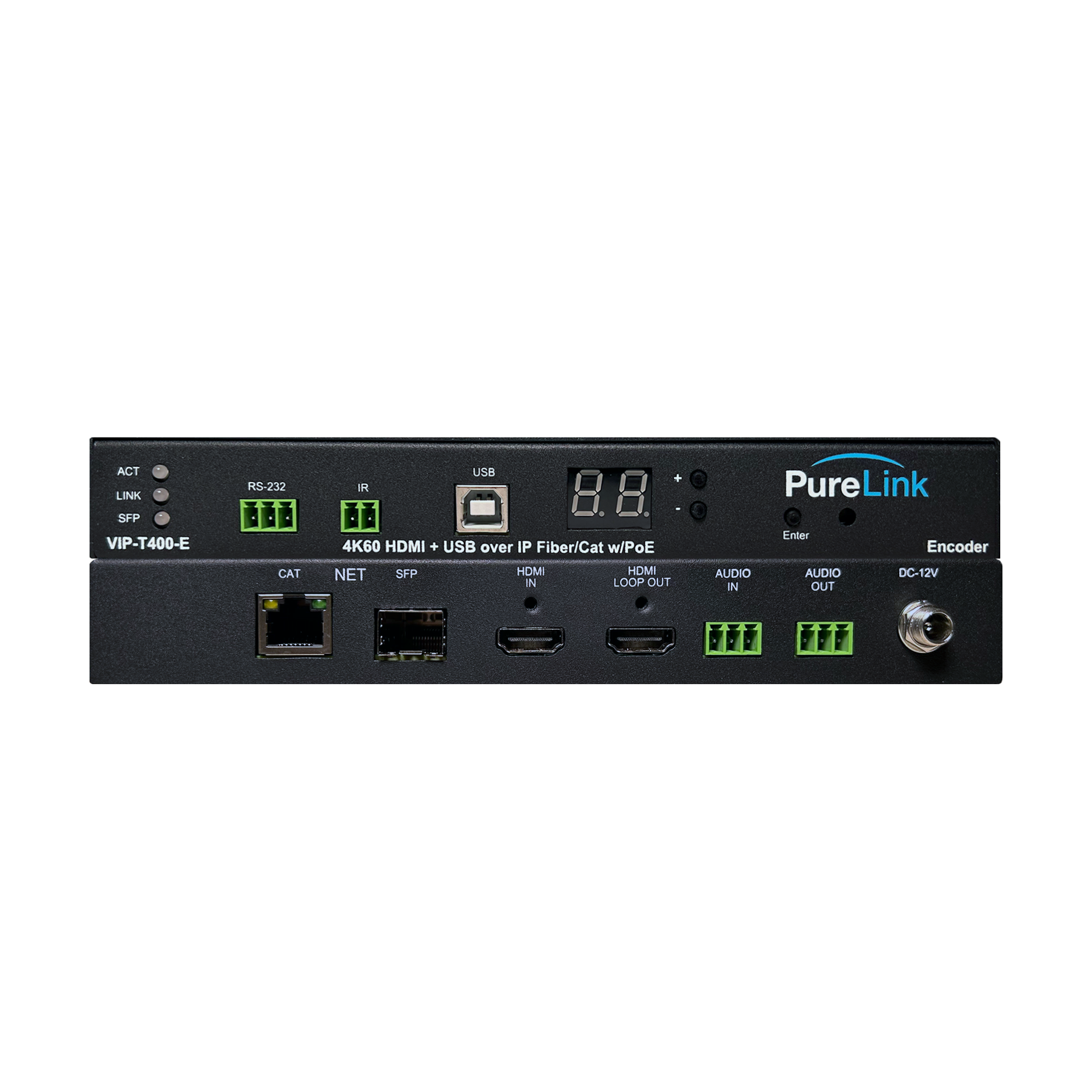

- HDMI loop-out on TX (encoder)
- Powered by included AC power adapter, or via PoE 802.3af (8.5W)
- Supports Dolby, DTS, and LPCM audio and more
- Matrix switching systems up to 999 sources and 65K displays

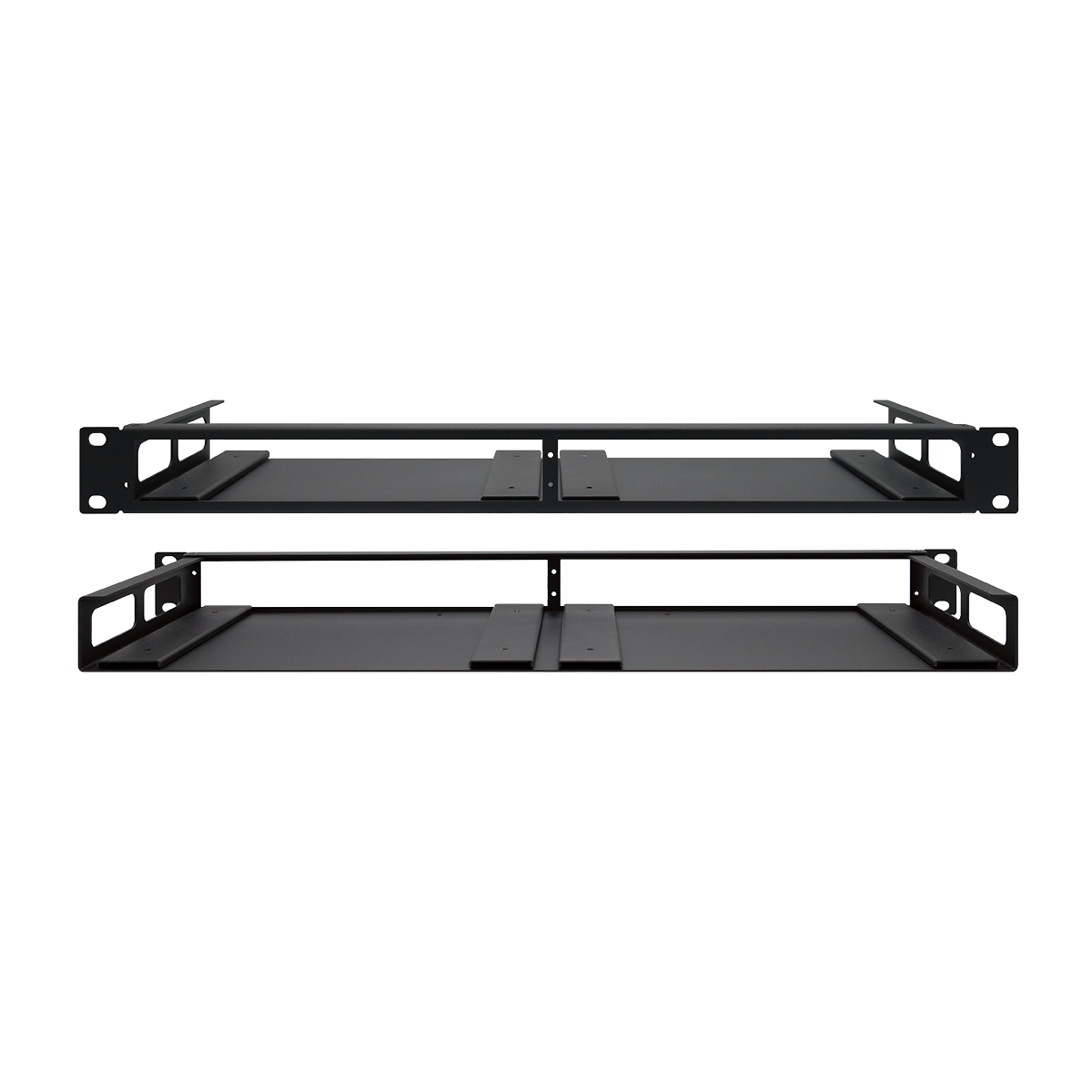

- Rack-mount options available
Specifications
| Performance |
|
| Supported Distance |
Up to 120 m via CAT6a; up to 2 km via single-mode SFP |
| Supported Resolutions |
Up to 4K UHD 4:4:4@60Hz |
| Compliance |
HDCP 2.2 |
| Video Input Format |
HDMI 2.0, Dolby Vision |
| Video Output Format |
HDMI 2.0, Dolby Vision |
| Supported Audio Formats |
5.1-channel and 7.1-channel LPCM, 5.1-channel Dolby, Dolby Pro Logic, DTS, 7.1-channel Dolby TrueHD, DTS-HD, Dolby Atmos, DTS:X |
| IR Receiver (Internal) |
3-pin Mini-Phoenix connector |
| Power Consumption |
8.5W |
| Power Supply |
DC 12V, 1,500mA |
| RS-232 |
Extension and access via TCP/IP |
| IR Extension |
Bidirectional |
| PoE (Power over Ethernet) |
IEEE 802.3af |
| HDR Support |
HDR, HDR10, HDR10+ |
| Data Rate |
50–850 Mbps; 300 Mbps typical |
Connections |
|
| Outputs |
1 × HDMI |
| Control Ports |
RS-232: 1 × 3-pin Mini-Phoenix; relays: 2 × 2-pin Mini-Phoenix; digital I/O: 2 × Mini-Phoenix |
| Audio Input Type(s) |
Analog stereo via 3-pin Mini-Phoenix |
| Audio Output Type(s) |
Analog stereo via 3-pin Mini-Phoenix, S/PDIF with ARC |
Software |
|
| VPX Software Suite |
Compatible |
| OS Compatibility |
Q-SYS modules available |
Power |
|
| Power Supply |
DC 12V, 5A, 20W |
Enclosure |
|
| Product Dimensions |
8.125 × 5.5 × 1 in / 20.5 × 14 × 2.54 cm |
Warranty |
|
| Warranty |
Limited Warranty, 3 Years |
TAA
