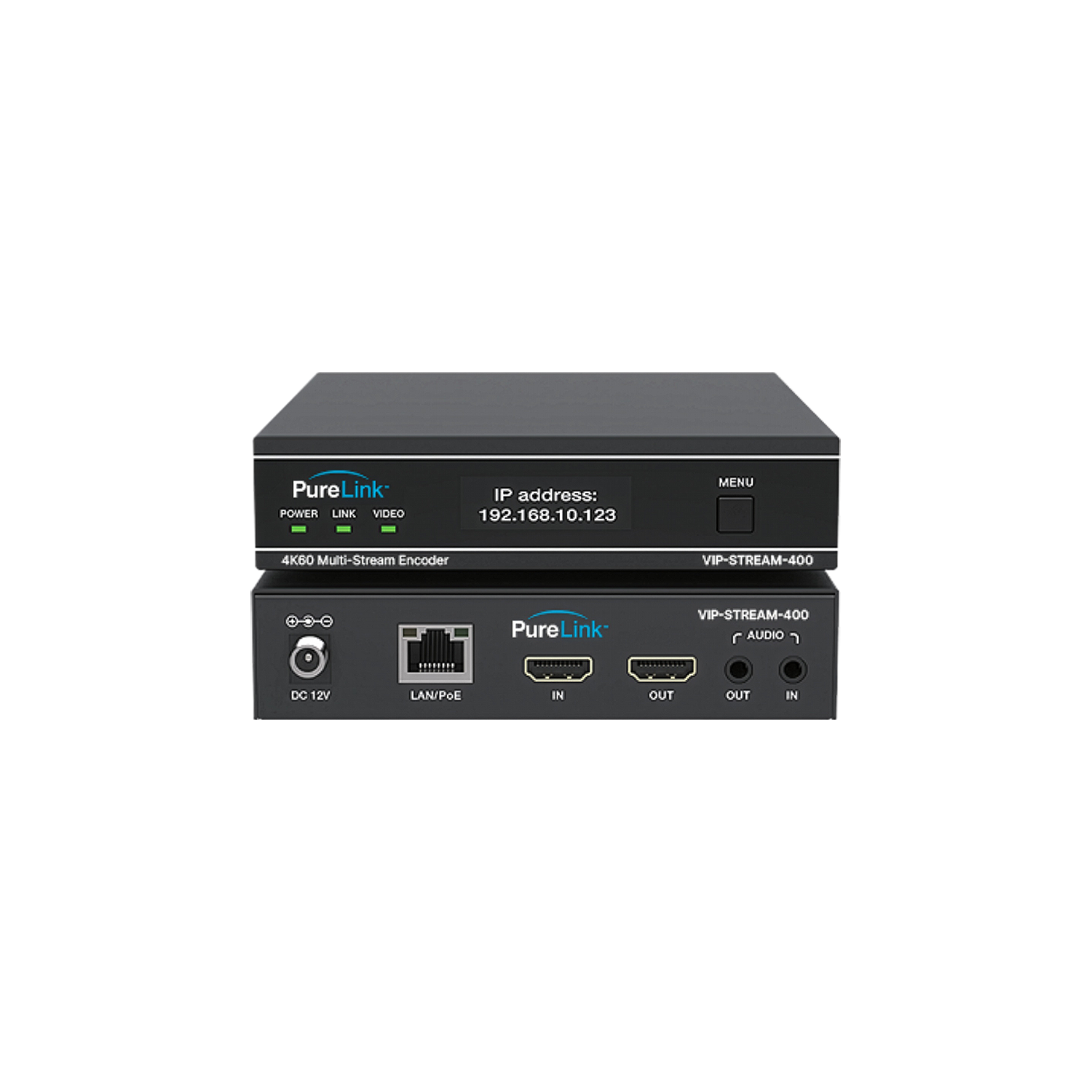

Turn a single 4K60 HDMI source into multiple simultaneous network streams with the VIP-STREAM-400. Designed for flexible video distribution, it encodes HDMI 2.0 video and audio using H.264 or H.265 and produces multiple simultaneous streams.

Choose from RTSP, RTMP, RTMPS, TS, as well as multicast or unicast, and audio-only SDP output formats to deliver content across different streaming workflows. Efficient H.264/H.265 encoding allows streams to operate over 100M network ports, while NTP synchronization provide accuracy for videowall applications. Intuitive transport controls make it easy to start, stop, and pause streams from the built in web interface, or with our iCON EZControl™, or other third party control systems.

Beyond streaming, the VIP-STREAM-400 includes unbalanced two-channel audio embedding and extraction, plus an HDMI loop output for local monitoring of the source signal. PoE simplifies and minimizes power connections, while a rich API enables control through PureLink’s iCON EZControl or compatible third-party control systems.

Key Features

• Encode and distribute HDMI video up to 4K60 over IP networks
• Generate simultaneous streams from a single source
• Stream simultaneously at 4K60, 1080p30, and 720 thumbnail preview at 5 Hz
• H.264 and H.265 encoding for efficient network transport
• RTSP, RTMP, RTMPS, TS, and audio-only SDP stream outputs
• Deploy streams over 100M network ports
• NTP synchronization
• Intuitive Start/Stop/Pause Transport controls
• Unbalanced two-channel audio embedding and extraction
• HDMI loop output for local source monitoring
• PoE for streamlined installation
• API control through PureLink iCON EZControl™ or third-party controllers


Specifications
