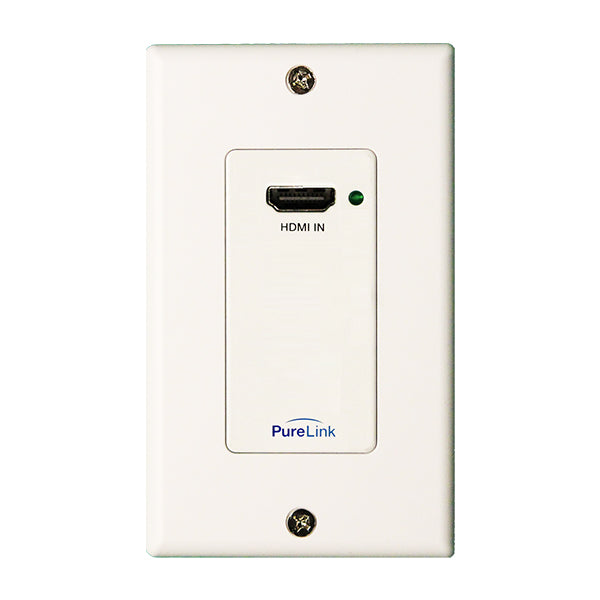

The VIP-101-E-WP Transmitter encodes HDMI video and audio over IP in a convenient wall plate form factor.  The VIP-101-E-WP is compatible with the VIP-100 II IP distribution system offering point-to-point extension over distances up to 394 ft. (120 m), as well as a point-to-many, many to point, and matrix connections (up to 64×190 matrix, or even a 64 x 65K system based on Class B networks).

• Support resolutions up to Full HD/1080p
• LED channel display
• Front panel channel plus/minus buttons
• IR remote control for familiar channel selection
• PoE (Power over Ethernet) – power encoders/decoders from 802.3af PoE network switches
• RS232 & IR extension/distribution
• HDMI Loop out on Transmitter
• HDCP compliant
• Point-to-point or matrix system:
  – up to 64 x 190 matrix (hardware) on Class C networks
  – up to 64x 65K on Class B networks
• HDCP compliant

Specifications
