PushGo Telluride transforms restaurants, worship spaces, and fitness centers into modern broadcast-ready environments with scalable AV over IP video and audio distribution. Delivered fully pre-configured and ready for same-day installation, this complete system provides everything needed to route multiple sources across displays throughout your venue.
With advanced AV over IP technology, Telluride streams high-quality video and audio across standard network infrastructure, enabling cameras, presentations, live television, or media players to be displayed anywhere—from dining areas and sanctuaries to workout floors and gathering spaces. The system starts with a base configuration of 8 sources and 8 displays, and can be fully customized to meet your exact IO requirements, accommodating any expansion your facility needs.
The intuitive 10” touchscreen interface makes it easy to manage sources, switch video feeds, and control the system with a single point of touch, as well as lock out unauthorized users. PushGo Telluride offers a scalable, expandable solution for venues seeking flexible AV deployment that grows with their space and audience.
Customization Available: Each PushGo package can be tailored to your specific needs, including interface or hardware options. Contact us for more details on how to customize your system.
Key Features
- Fully pre-programmed and ready to use
- Plug-and-play for same-day setup
- Premium 10” touchscreen with complete automation / control of your AV system
- Base configuration supports 8 sources to 8 displays, fully configurable to meet custom IO requirements
- Professional AV over IP switching with scalable network architecture for growing environments
- Full HD streaming across network infrastructure
- Multi-display routing across large spaces
- Integrated audio embedding and de-embedding for easy sound system integration
- Includes all essential hardware and cables
- Ideal for restaurants, worship spaces, fitness centers, and hospitality environments
Specifications
PureLink iCON-T10 Tabletop Touchscreen Controller
| Standards & Compliance |
|
| Compliance |
TAA |
| Regulatory Certifications |
CE, FCC, RoHS, UL |
| Communications & Control |
|
| Programming |
iCON EZControl IDE |
| Control Protocol |
LAN (TCP/IP), RS-485 (bidirectional) |
| Control Ports |
LAN, RS-485 |
| Control Connector Type |
RJ45, 3.81mm Phoenix connector (3-pin) |
| Mechanical Features |
|
| Touch Panel Size |
10 in |
| Touch Panel Resolution |
1280 × 800 |
| Network Port |
1 × LAN (RJ45) |
| RS-232/485 Port |
1 × 3.81mm Phoenix connector (3-pin) |
| Debug |
1 × Micro USB |
| Power |
|
| Power Input |
PoE (IEEE 802.3af), DC 24V/1A via 2-pin Phoenix |
| Power Supply |
Alternative Power: AC 100–240V |
| Power Consumption |
6W max |
| Environment |
|
| Operating Temperature |
32° to 104°F / 0° to 40°C |
| Relative Humidity |
10–90% RH, non-condensing |
| Enclosure |
|
| Mounting Option |
Table |
| Product Dimensions (W × D × H) |
9.66 in × 6.46 in × 1.06 in / 245.4mm × 164mm × 27mm |
| Weight |
1.96 lbs / 887g |
| Warranty |
|
| Parts |
1 Year |
| Labor |
1 Year |
PureLink iCON-E1 Control Expander
| Standards & Compliance |
|
| Compliance |
TAA |
| Regulatory Certifications |
FCC, CE, RoHS, UKCA |
| Communications & Control |
|
| Programming |
iCON EZControl IDE |
| Control Protocol |
LAN (TCP/IP), RS-232 (bidirectional), RS-485 (bidirectional), IR, I/O, Relay |
| Control Ports |
LAN, RS-232, RS-485, IR, I/O |
| Control Connector Type |
RJ45, 3.81mm Mini Phoenix, 5-pin 3.81mm Mini Phoenix, 2-pin 3.81mm Mini Phoenix |
| Power |
|
| Power Input |
PoE (IEEE 802.3af), DC 12–24V/1A via 2-pin Phoenix |
| Power Supply |
AC 100–240V, 50/60Hz |
| Power Consumption |
0.48W max |
| Environment |
|
| Operating Temperature |
32° to 104°F / 0° to 40°C |
| Storage Temperature |
4° to 140°F / 0° to 60°C |
| Relative Humidity |
20–90% RH, non-condensing |
| Enclosure |
|
| Rack Mounting Option |
No |
| Product Dimensions (W × D × H) |
5.79 in × 5.12 in × 1.65 in / 147mm × 130mm × 42mm |
| Weight |
1.48 lbs / 673g |
| Warranty |
|
| Parts |
3 Years |
| Labor |
3 Years |

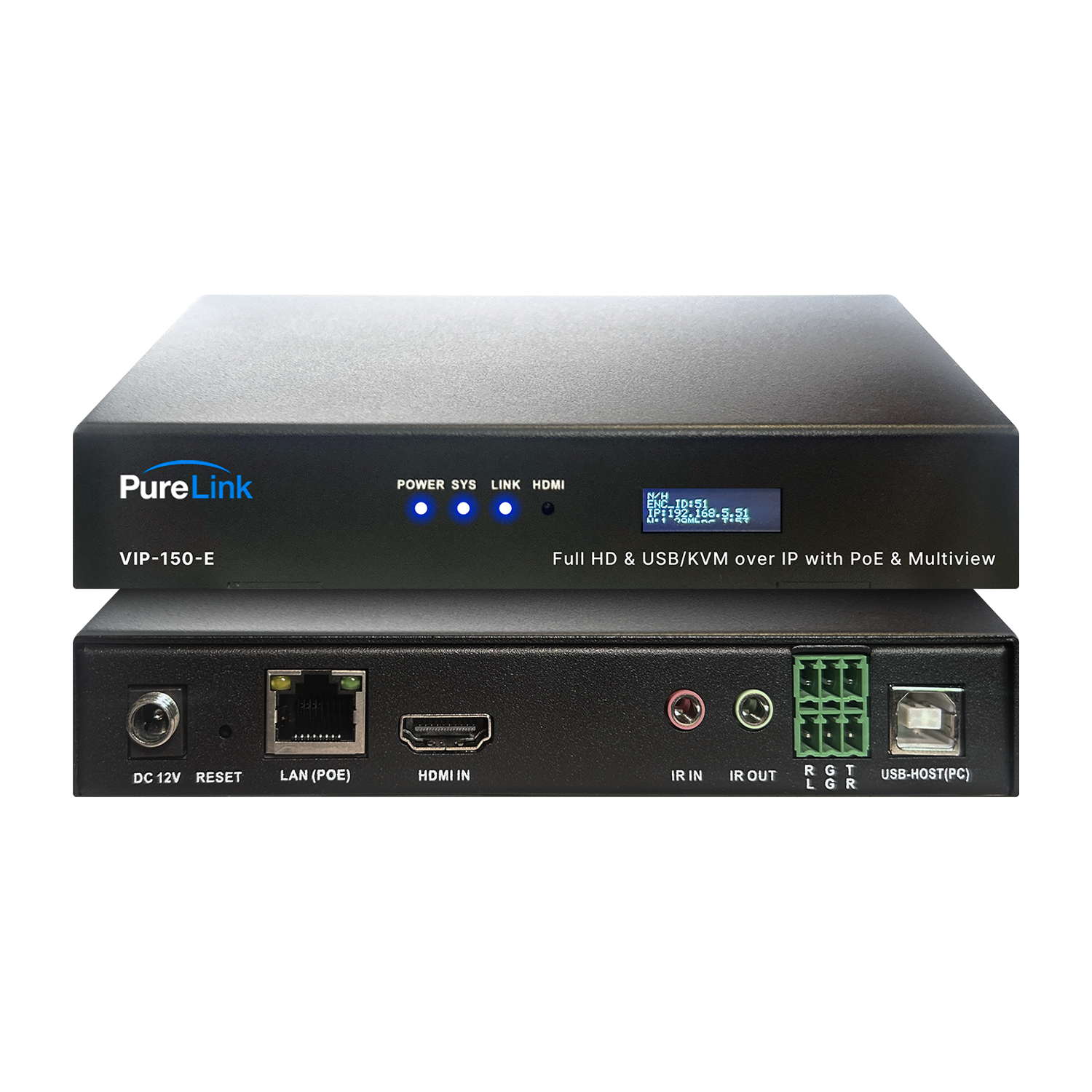

PureLink VIP-150-E AV over IP Encoder
| Standards & Compliance |
|
| Signal Standards |
CAT6A, CAT5e, HDMI 1.4 |
| Connections |
|
| HDMI Input |
1 × HDMI IN (Type A, 19-pin female) |
| USB Device |
1 × USB-B |
| IR In |
1 × 3.5mm TRS |
| Audio In |
1 × 3.5mm 3-pin Phoenix |
| CATx |
1 × LAN (RJ45) |
| RS-232 |
1 × 3.5mm 3-pin Phoenix |
| IR Out |
1 × 3.5mm TRS |
| Performance |
|
| Audio Formats |
LPCM, PCM |
| Codec |
H.264/H.265 |
| Max Video Resolution |
1920 × 1080p60 |
| Max Distance |
100 m via CAT6A |
| HDCP |
HDCP 1.4 |
| IR Extension |
3.5mm 3-pin Phoenix |
| Web GUI |
PureLink PCManagerTool |
| Latency |
80–120 ms |
| PoE (Power over Ethernet) |
Yes |
| Power Supply (Optional) |
DC 12V input |
| RS-232 |
Bidirectional RS-232, RS-232 extension |
| IR Bandwidth |
7 Mbps |
| Control & Communication |
|
| Control Ports |
RS-232, IR, UDP |
| API |
JSON |
| Control Software |
iCON, iCON Lite |
| RS-232 Support |
Yes |
| Power |
|
| Power Input |
PoE (IEEE 802.3af) |
| Power Supply |
DC 12V/1.5A |
| Enclosure |
|
| Rack Mounting Option |
Rack ears |
| Product Dimensions (W × D × H) |
6.1 in × 3.7 in × 1 in / 155mm × 95mm × 25mm |
| Weight |
1.5 lbs / 680.38g |
| Warranty |
|
| Parts |
3 Years |
| Labor |
3 Years |

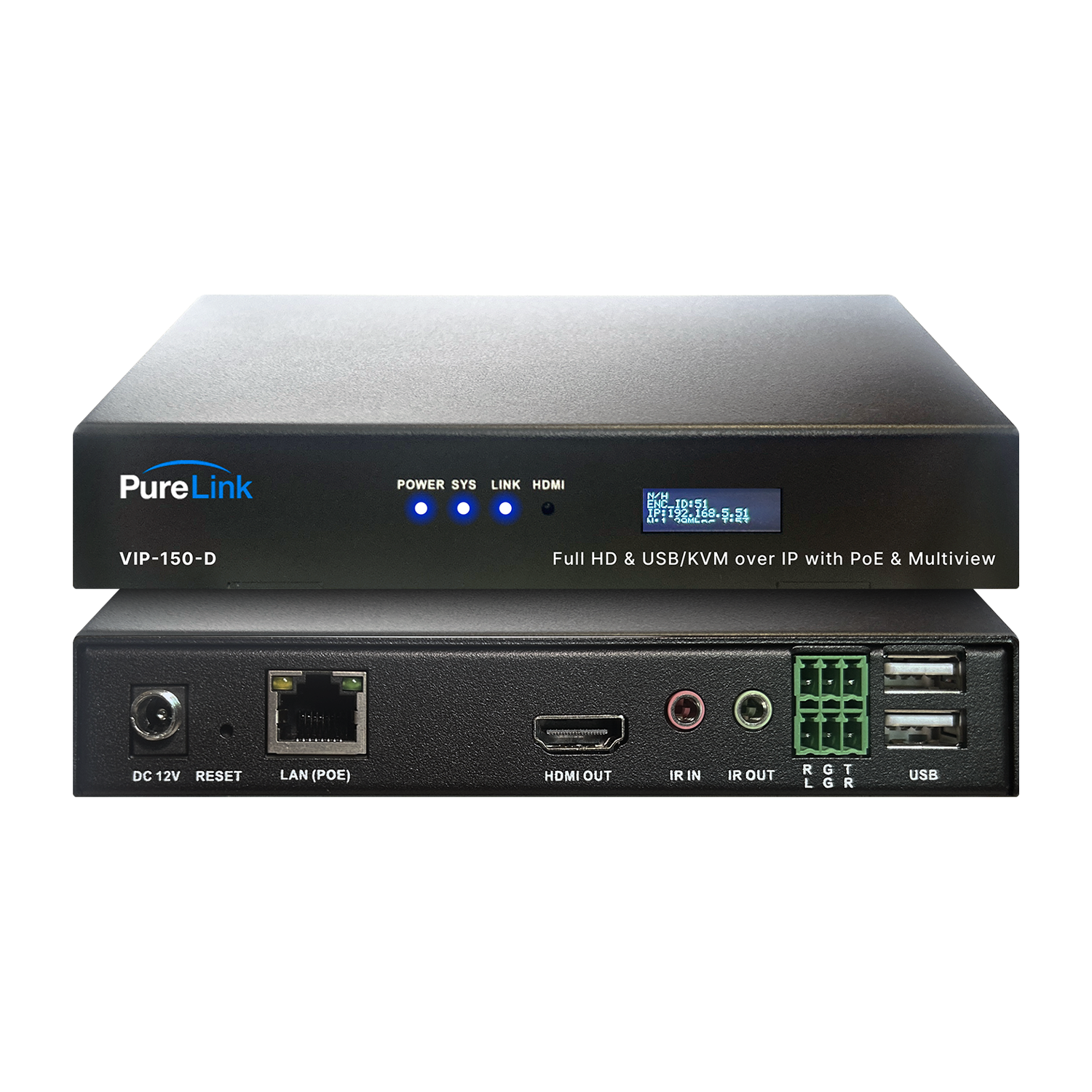

PureLink VIP-150-D AV over IP Decoder
| Standards & Compliance |
|
| Signal Standards |
CAT6A, CAT5e, HDMI 1.4 |
| Connections |
|
| USB Devices |
2 × USB-A |
| IR In |
1 × 3.5mm TRS |
| Audio In |
1 × 3.5mm TRS |
| HDMI Output |
1 × HDMI OUT (Type A, 19-pin female) |
| CATx |
1 × LAN (RJ45) |
| RS-232 |
1 × 3.5mm Phoenix connector (3-pin) |
| IR Out |
1 × 3.5mm TRS |
| LAN (PoE) |
IEEE 802.3af |
| Performance |
|
| Audio Formats |
LPCM, PCM |
| Codec |
H.264/H.265 |
| Max Video Resolution |
1920 × 1080p60 |
| Max Distance |
100 m via CAT6A |
| HDCP |
HDCP 1.4 |
| IR Extension |
3.5mm 3-pin Phoenix |
| Web GUI |
PureLink PCManagerTool |
| Latency |
80–120 ms |
| PoE (Power over Ethernet) |
Yes |
| Power Supply (Optional) |
DC 12V input |
| RS-232 |
Bidirectional RS-232, RS-232 extension |
| IR Bandwidth |
7 Mbps |
| Control & Communication |
|
| Control Ports |
RS-232, IR, UDP |
| API |
JSON |
| Control Software |
iCON, iCON Lite |
| RS-232 Support |
Yes |
| Power |
|
| Power Input |
PoE (IEEE 802.3af) |
| Power Supply |
DC 12V/1.5A |
| Environment |
|
| Operating Temperature |
-4° to 140°F / -20° to 60°C |
| Relative Humidity |
10–90% RH, non-condensing |
| Enclosure |
|
| Rack Mounting Option |
Rack ears |
| Product Dimensions (W × D × H) |
6.1 in × 3.7 in × 1 in / 155mm × 95mm × 25mm |
| Warranty |
|
| Parts |
3 Years |
| Labor |
3 Years |

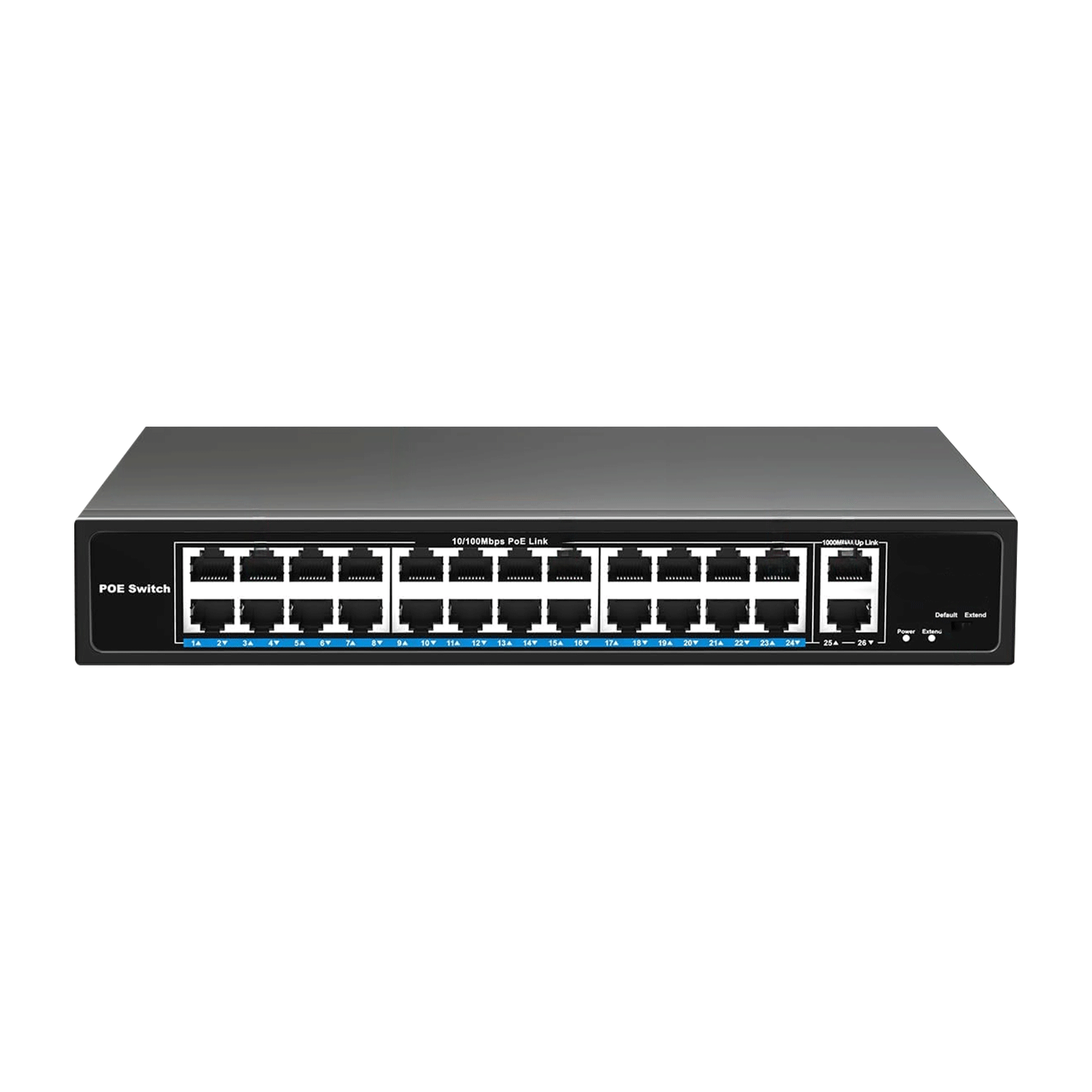

NICGIGA 24-Port PoE Network Switch
| Connector Types & Features |
|
| Ports |
24 × PoE+ ports, 2 × Gigabit RJ45 ports |
| PoE+ Ports |
8 × 10/100/1000Mbps RJ45 ports supporting PoE |
| Switching Capacity |
12 Gbps |
| Power |
|
| Power Input |
110–240VAC, 50Hz |
| Power Consumption |
120W max; PoE: 30W max |
| Environment |
|
| Operating Temperature |
50° to 131°F / 10° to 55°C |
| Enclosure |
|
| Product Dimensions (W × D × H) |
6.2 in × 4.0 in × 1.0 in / 158mm × 101mm × 25mm |
| Weight |
2.6 lbs / 1.2kg |
| Warranty |
|
| Parts |
1 Year |
| Labor |
1 Year |
