PushGo Aspen transforms conference rooms and training spaces into fully equipped, connected meeting environments with a complete all-in-one meeting system. Designed as a “meeting space system in a box,” PushGo Aspen combines control, video routing, audio, switching, and cabling into a single solution for versatile collaboration.

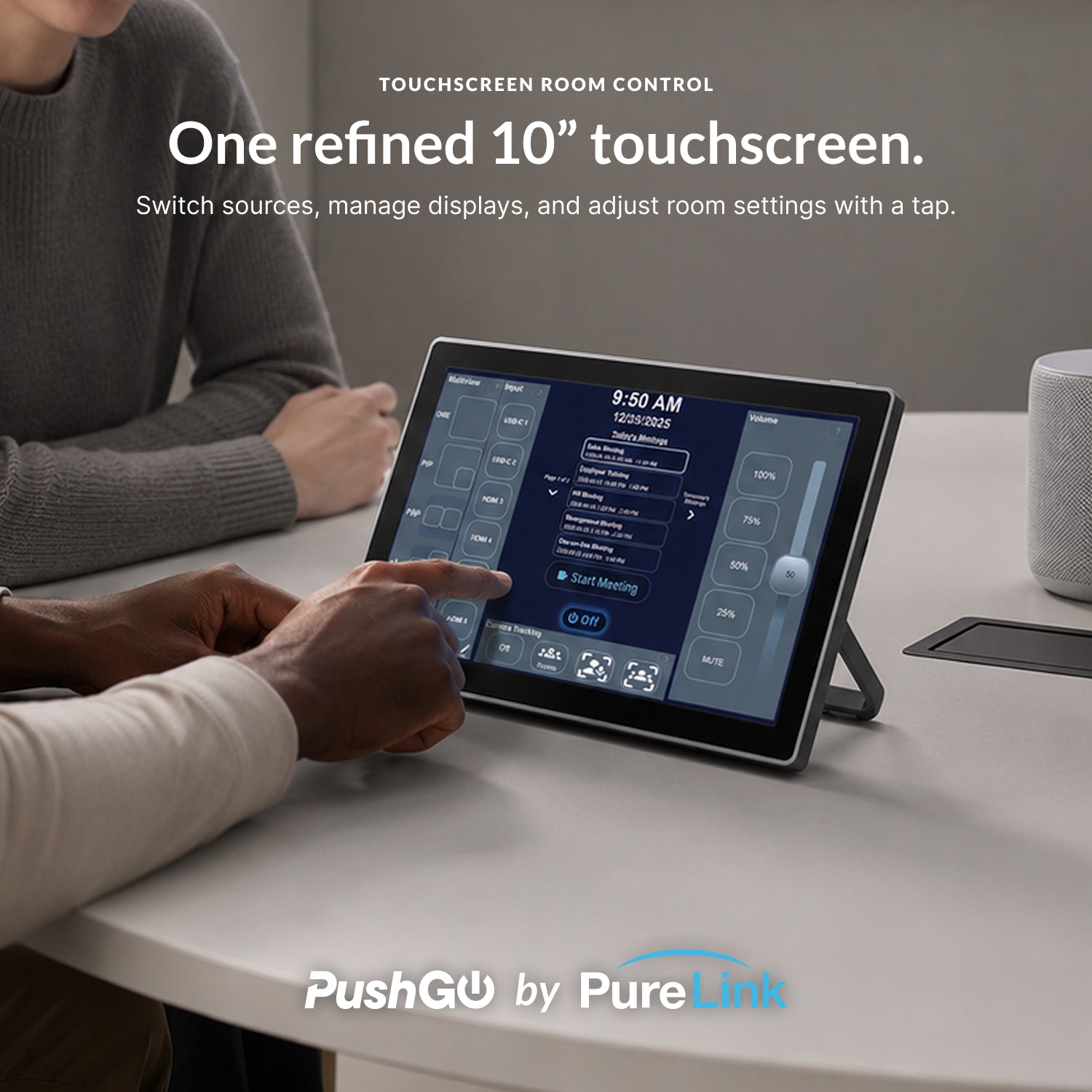

Delivered pre-configured and pre-programmed, PushGo Aspen arrives ready for same-day installation, so rooms can be operational immediately with reliable performance. Its 10-inch touchscreen provides intuitive control for switching sources, managing displays, and adjusting lighting or shades. Ultra-clear video and rich audio deliver polished, professional presentations every time.

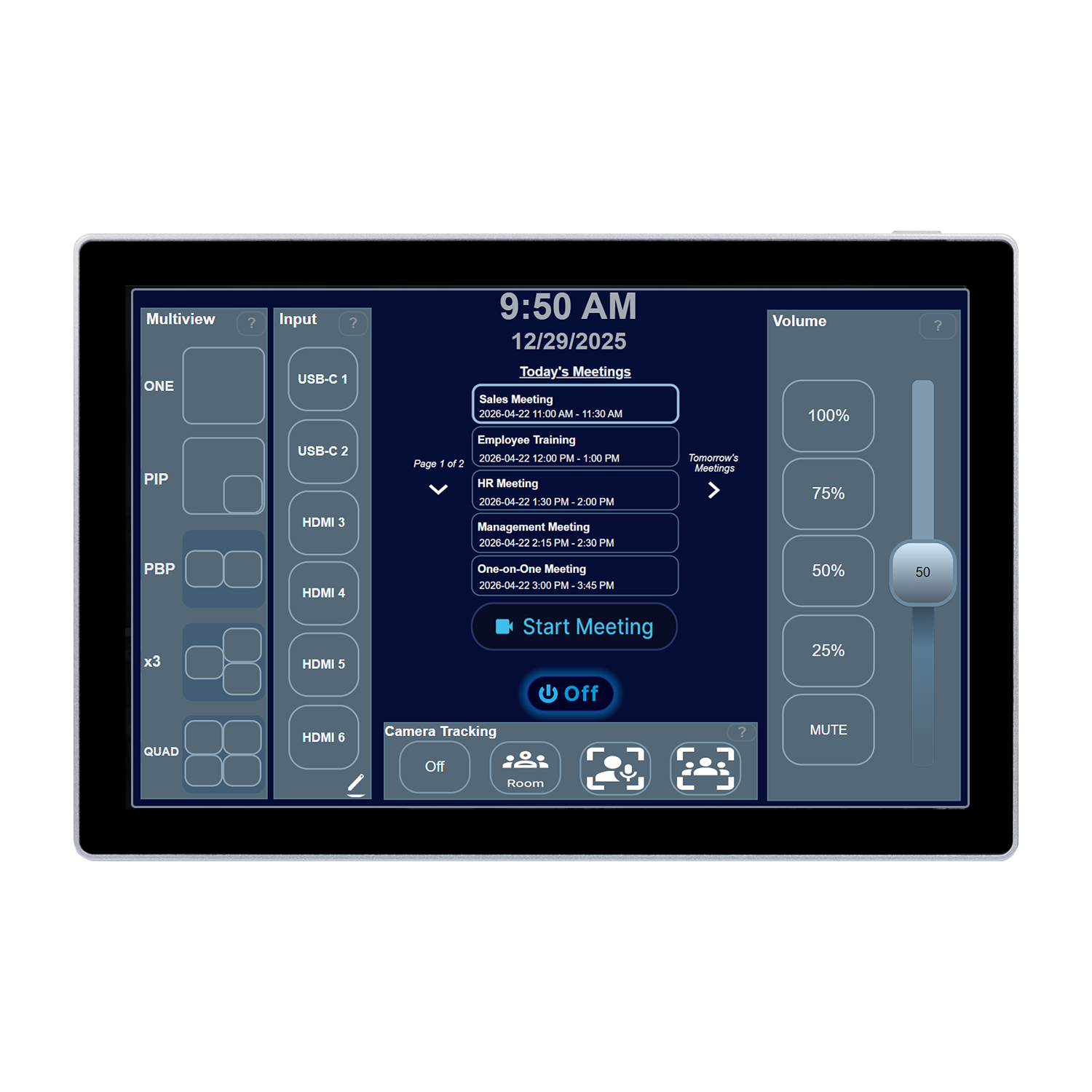

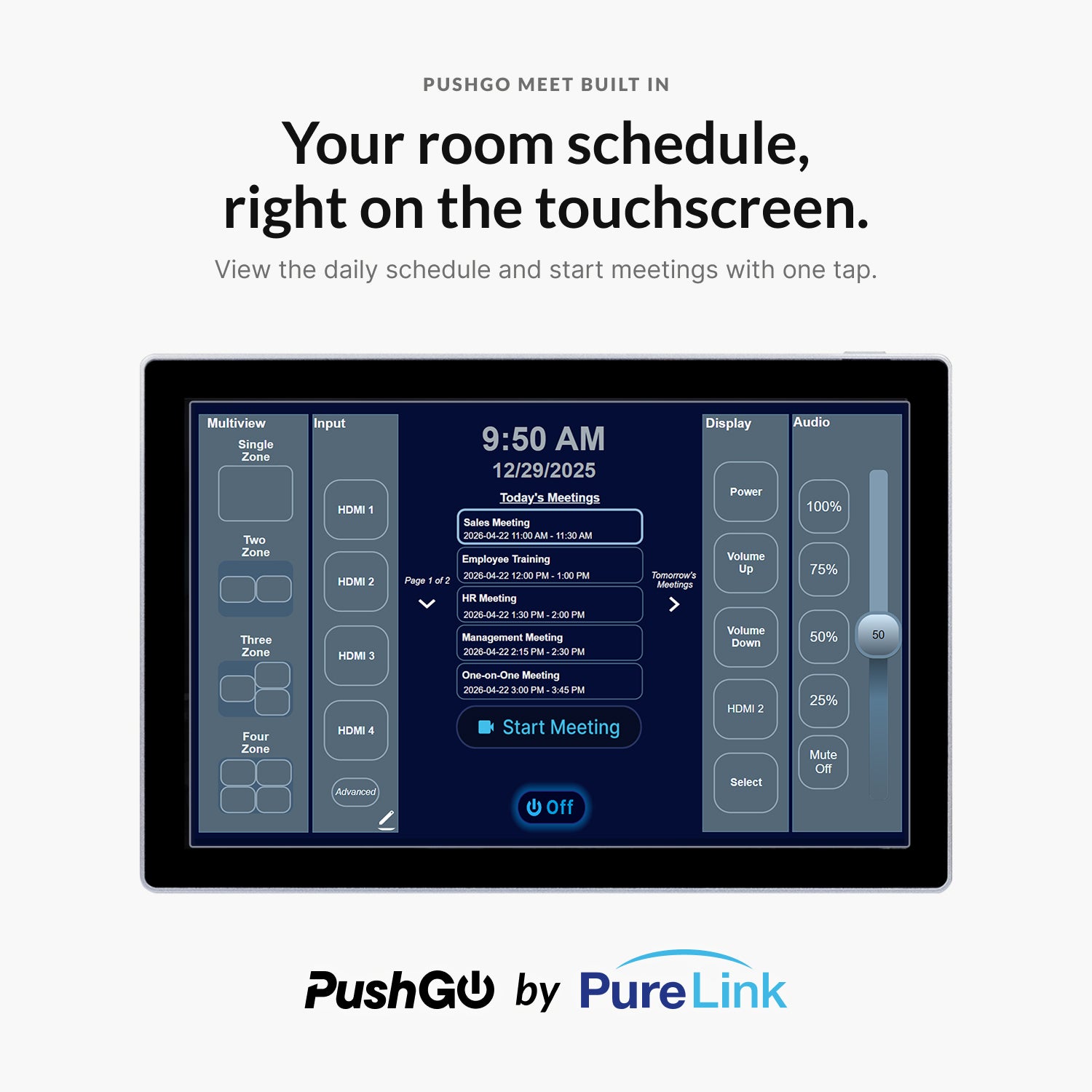

With PushGo Meet now built in, Aspen also brings your daily meeting schedule directly to the touchscreen. Once connected to your Outlook or Google Calendar account, your meetings appear directly on the PushGo touchscreen so you can start sessions with a single tap, stay aligned with real-time updates, and move through your day without interruption.

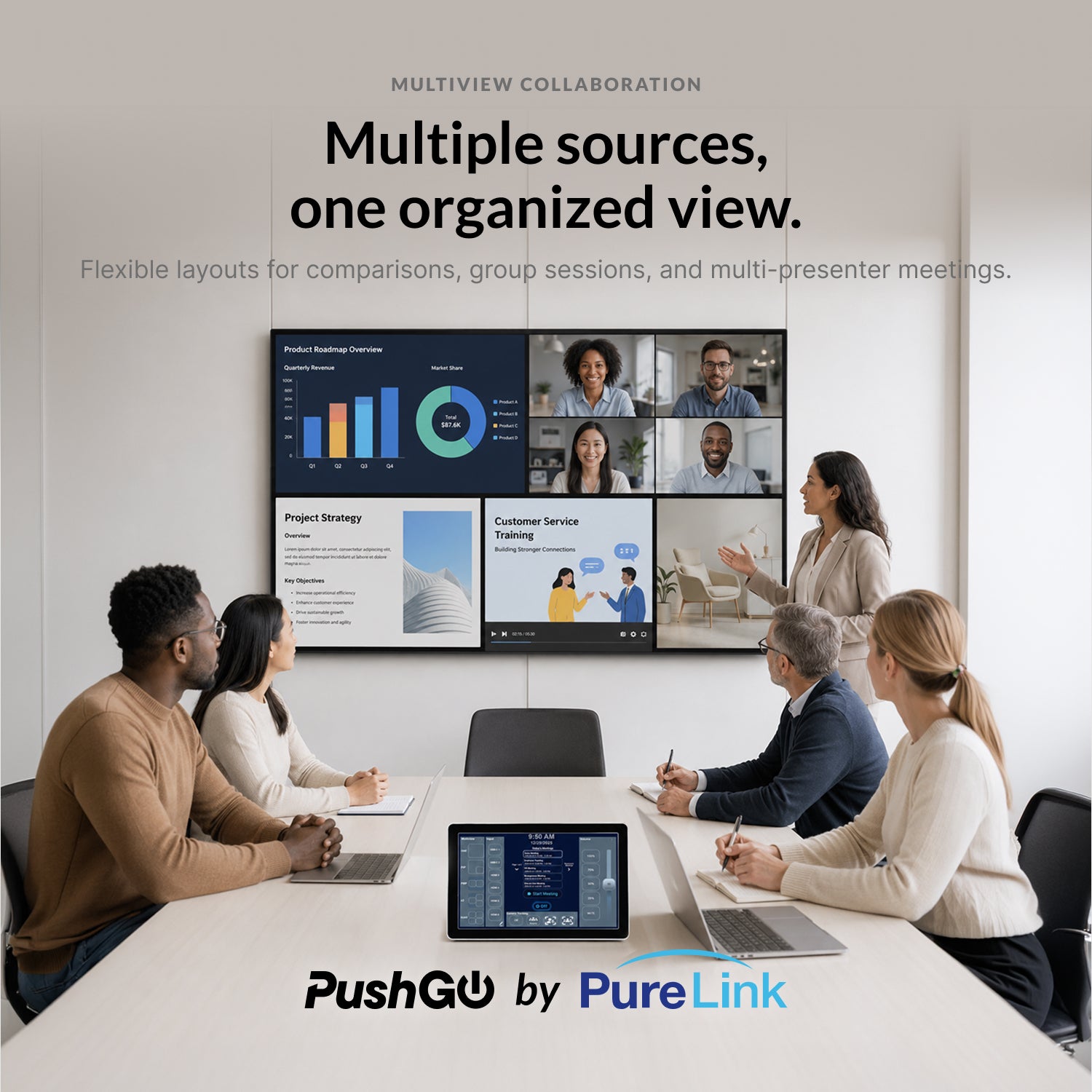

Aspen also supports multiple connected devices and flexible multiview layouts, allowing side-by-side comparisons, multi-presenter sessions, and interactive group discussions.
By combining all-in-one simplicity with advanced collaboration capabilities, PushGo Aspen delivers seamless, high-performance meeting experiences for larger and more versatile rooms.
Customization Available: Each PushGo package can be tailored to your specific needs, including interface or hardware options. Contact us for more details on how to customize your system.
Key Features
- Fully pre-configured and ready to perform
- Plug-and-play design for same-day setup
- Premium 10” touchscreen control for sources, displays, and room settings
- Ultra-clear video and rich audio output
- Supports up to six HDMI or USB-C devices
- Flexible multiview layouts for screen sharing of multiple sources
- Built-in calendar-connected meeting control with PushGo Meet
- Connects with Outlook and Google Calendar after account setup
- Daily meeting schedule displayed directly on the PushGo touchscreen
- One-touch meeting start from the touchscreen
- Real-time schedule updates for newly added, moved, or canceled meetings
- View current and upcoming meetings at a glance
- Compatible with Zoom, Microsoft Teams, Webex, and more
- Includes all essential hardware and cables
- Complimentary logo branding on touchscreen
- Ideal for conference rooms, training spaces, and offices
Specifications
PureLink iCON-T10 Tabletop Touchscreen Controller
| Standards & Compliance |
|
| Compliance |
TAA |
| Regulatory Certifications |
CE, FCC, RoHS, UL |
| Communications & Control |
|
| Programming |
iCON EZControl IDE |
| Control Protocol |
LAN (TCP/IP), RS-485 (bidirectional) |
| Control Ports |
LAN, RS-485 |
| Control Connector Type |
RJ45, 3.81mm Phoenix connector (3-pin) |
| Mechanical Features |
|
| Touch Panel Size |
10 in |
| Touch Panel Resolution |
1280 × 800 |
| Network Port |
1 × LAN (RJ45) |
| RS-232/485 Port |
1 × 3.81mm Phoenix connector (3-pin) |
| Debug |
1 × Micro USB |
| Power |
|
| Power Input |
PoE (IEEE 802.3af), DC 24V/1A via 2-pin Phoenix |
| Power Supply |
Alternative Power: AC 100–240V |
| Power Consumption |
6W max |
| Environment |
|
| Operating Temperature |
32° to 104°F / 0° to 40°C |
| Relative Humidity |
10–90% RH, non-condensing |
| Enclosure |
|
| Mounting Option |
Table |
| Product Dimensions (W × D × H) |
9.66 in × 6.46 in × 1.06 in / 245.4mm × 164mm × 27mm |
| Weight |
1.96 lbs / 887g |
| Warranty |
|
| Parts |
1 Year |
| Labor |
1 Year |
PureLink iCON-E1 Control Expander
| Standards & Compliance |
|
| Compliance |
TAA |
| Regulatory Certifications |
FCC, CE, RoHS, UKCA |
| Communications & Control |
|
| Programming |
iCON EZControl IDE |
| Control Protocol |
LAN (TCP/IP), RS-232 (bidirectional), RS-485 (bidirectional), IR, I/O, Relay |
| Control Ports |
LAN, RS-232, RS-485, IR, I/O |
| Control Connector Type |
RJ45, 3.81mm Mini Phoenix, 5-pin 3.81mm Mini Phoenix, 2-pin 3.81mm Mini Phoenix |
| Power |
|
| Power Input |
PoE (IEEE 802.3af), DC 12–24V/1A via 2-pin Phoenix |
| Power Supply |
AC 100–240V, 50/60Hz |
| Power Consumption |
0.48W max |
| Environment |
|
| Operating Temperature |
32° to 104°F / 0° to 40°C |
| Storage Temperature |
4° to 140°F / 0° to 60°C |
| Relative Humidity |
20–90% RH, non-condensing |
| Enclosure |
|
| Rack Mounting Option |
No |
| Product Dimensions (W × D × H) |
5.79 in × 5.12 in × 1.65 in / 147mm × 130mm × 42mm |
| Weight |
1.48 lbs / 673g |
| Warranty |
|
| Parts |
3 Years |
| Labor |
3 Years |

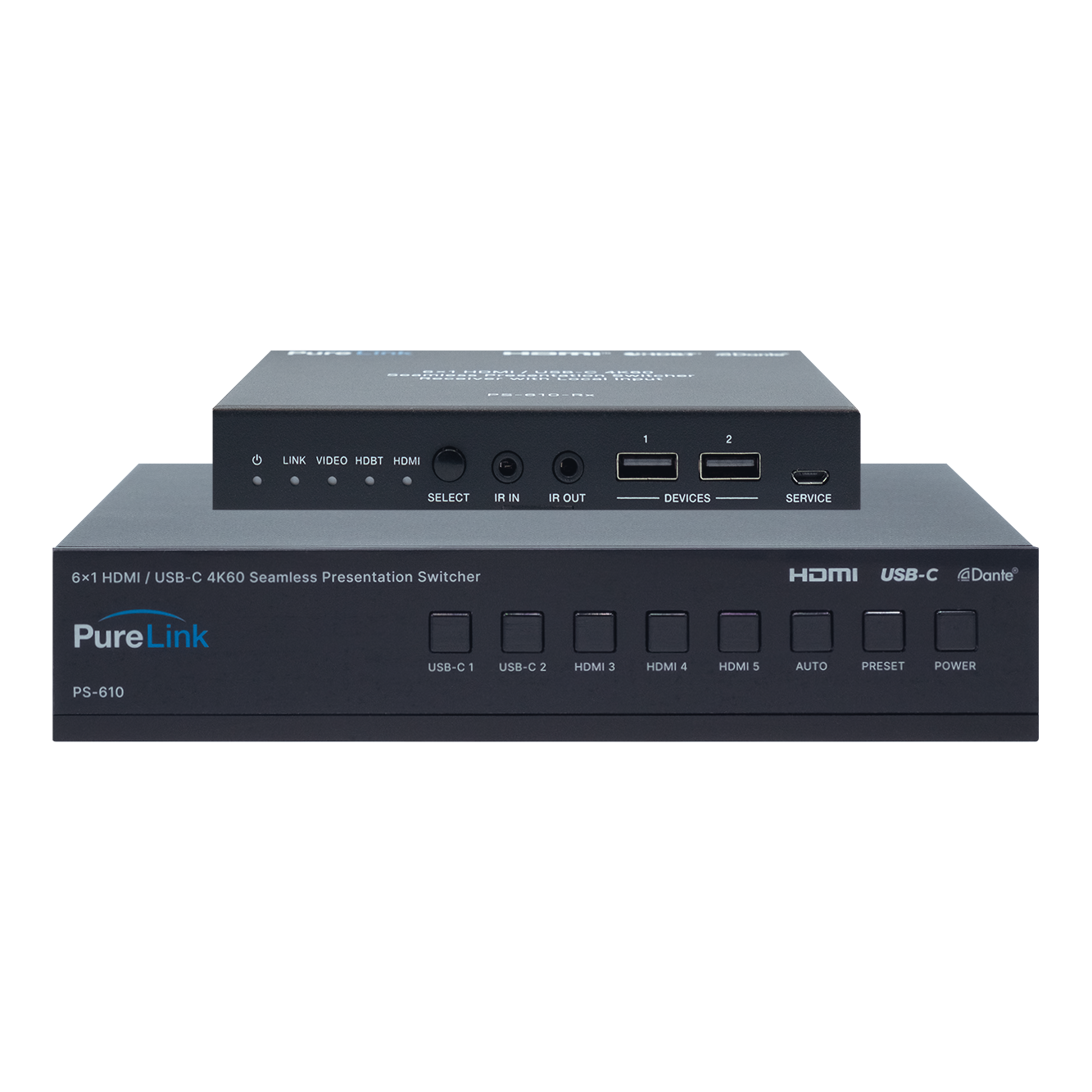

PureLink PS-610 6×1 HDMI/USB-C 4K60 Presentation Switcher
| Standards & Compliance |
|
| Signal Standards |
HDMI 2.0b, DisplayPort 1.2 |
| Matrix Connector Types |
|
| HDMI Inputs |
3 × HDMI IN (Type A, 19-pin female) |
| HDMI Output |
1 × HDMI OUT (Type A, 19-pin female) |
| USB-C Inputs |
2 × USB-C IN (24-pin female) |
| IR In |
1 × 3.5mm TRS |
| IR Out |
1 × 3.5mm TRS |
| RS-232 |
1 × 3-pin 3.5mm Phoenix |
| Audio In |
1 × 5-pin Phoenix |
| Audio Out |
1 × 5-pin Phoenix |
| HDBaseT |
1 × LAN (RJ45) |
| TCP/IP |
1 × LAN (RJ45) |
| Dante |
1 × LAN (RJ45) |
| USB Host |
1 × USB-B |
| USB Devices |
2 × USB-A |
| HDBaseT Receiver Connector Types |
|
| HDMI Input - RX |
1 × HDMI IN (Type A, 19-pin female) |
| HDMI Output - RX |
1 × HDMI OUT (Type A, 19-pin female) |
| HDBaseT - RX |
1 × LAN (RJ45) |
| USB Host - RX |
1 × USB-B |
| USB Devices - RX |
2 × USB-A |
| Audio Out - RX |
1 × 5-pin Phoenix |
| IR In - RX |
1 × 3.5mm TRS |
| IR Out - RX |
1 × 3.5mm TRS |
| Service - RX |
1 × Micro USB |
| RS-232 - RX |
1 × 3-pin 3.5mm Phoenix |
| Performance |
|
| CATx Transmission Distance |
4K2K@60Hz: 40 m; 4K2K@30Hz: 70 m; 1080p@60Hz: 70 m |
| Transport |
HDBaseT 3.0 |
| Max Video Resolution |
4K60 (4:4:4) |
| HDR |
Input supports HDR; output does not support HDR |
| HDCP |
HDCP 2.2 |
| USB-C Charging Port |
60W max |
| RS-232 Support |
Yes |
| Network Bandwidth |
100 Mbps |
| Power Transmitter |
|
| Power Input |
DC 24V/8A |
| Power Supply |
AC 100–240V, 50/60Hz |
| Power Consumption |
150W max |
| Power Receiver |
|
| Power Supply - RX |
AC 100–240V, 50/60Hz |
| Environment |
|
| Operating Temperature |
32° to 104°F / 0° to 40°C |
| Storage Temperature |
-4° to 140°F / -20° to 60°C |
| Relative Humidity |
20–90% |
| Enclosure |
|
| Product Dimensions (W × D × H) |
Matrix: 8.66 in × 5.91 in × 1.73 in / 220mm × 150mm × 44mm; RX: 5.51 in × 4.13 in × 0.85 in / 140mm × 105mm × 21.5mm |
| Weight |
Matrix: 2.67 lbs / 1.21kg; RX: 0.93 lbs / 424g |
| Warranty |
|
| Parts |
3 Years |
| Labor |
3 Years |

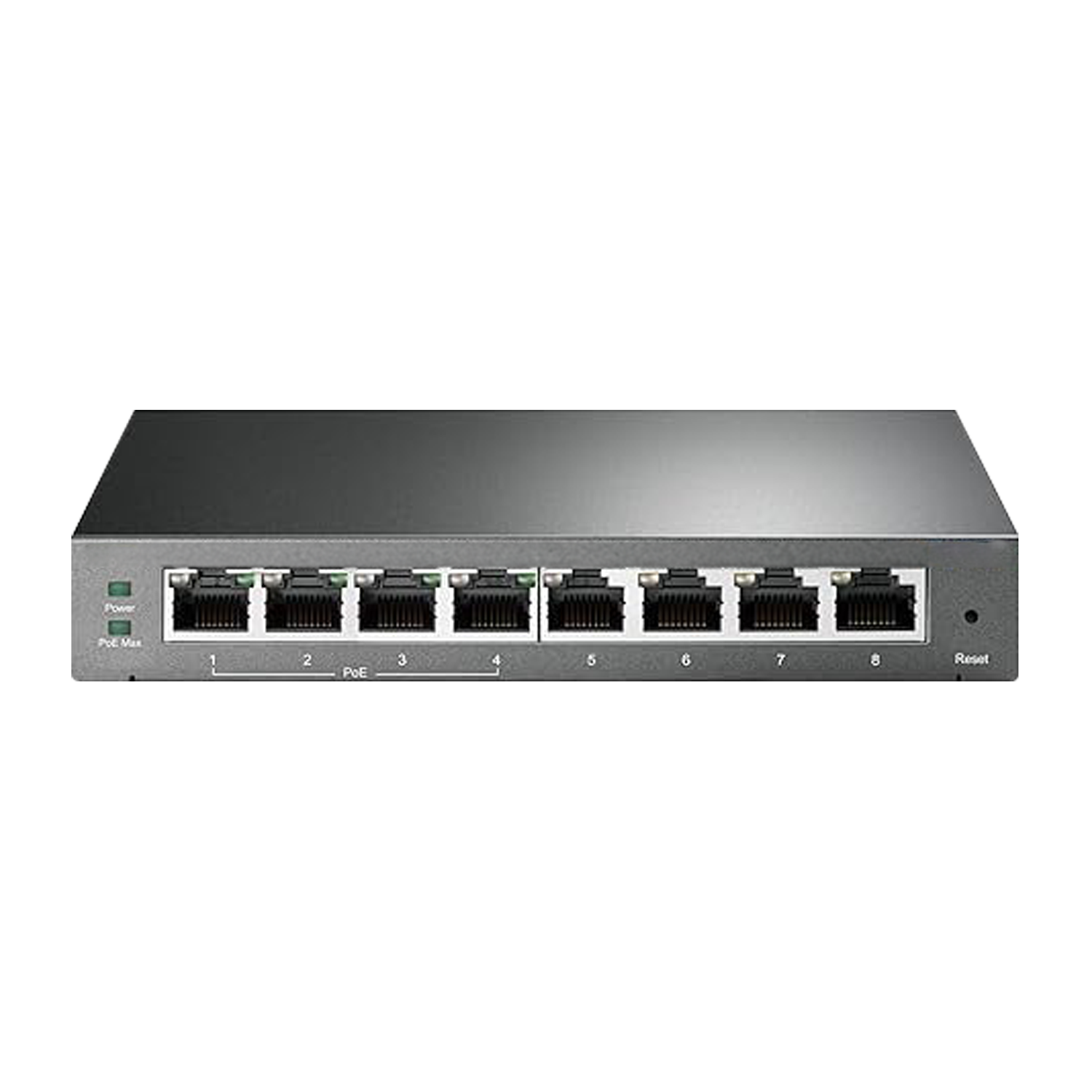

TL-SG108PE 8-Port Network Switch
| Connector Types & Features |
|
| Ports |
4 × PoE+ ports, 8 × Gigabit RJ45 ports |
| Switching Capacity |
16 Gbps |
| Packet Forwarding Rate |
11.9 Mpps |
| Packet Buffer Memory |
1.5 Mb |
| Jumbo Frame |
15 KB |
| Power |
|
| Power Consumption |
74.27W max |
| Enclosure |
|
| Product Dimensions (W × D × H) |
6.2 in × 4.0 in × 1.0 in / 158mm × 101mm × 25mm |
| Warranty |
|
| Parts |
3 Years |
| Labor |
3 Years |
