PushGo Taos transforms shared workspaces, classrooms, and creative studios into fully equipped BYOD collaborative environments with a complete all-in-one meeting system. Designed as a “meeting space system in a box,” PushGo Taos combines video, audio, control, switching, and multi-user connectivity into one flexible solution for dynamic collaboration.
Delivered pre-configured and pre-programmed, PushGo Taos arrives ready for same-day installation, so teams can collaborate immediately. Once connected, Taos delivers high-quality 4K video and balanced audio for smooth, productive sessions. Its advanced multi-viewer supports up to eight simultaneous connections via HDMI, USB-C, VGA, or wireless input, allowing multiple users to share screens side by side or spotlight individual content.

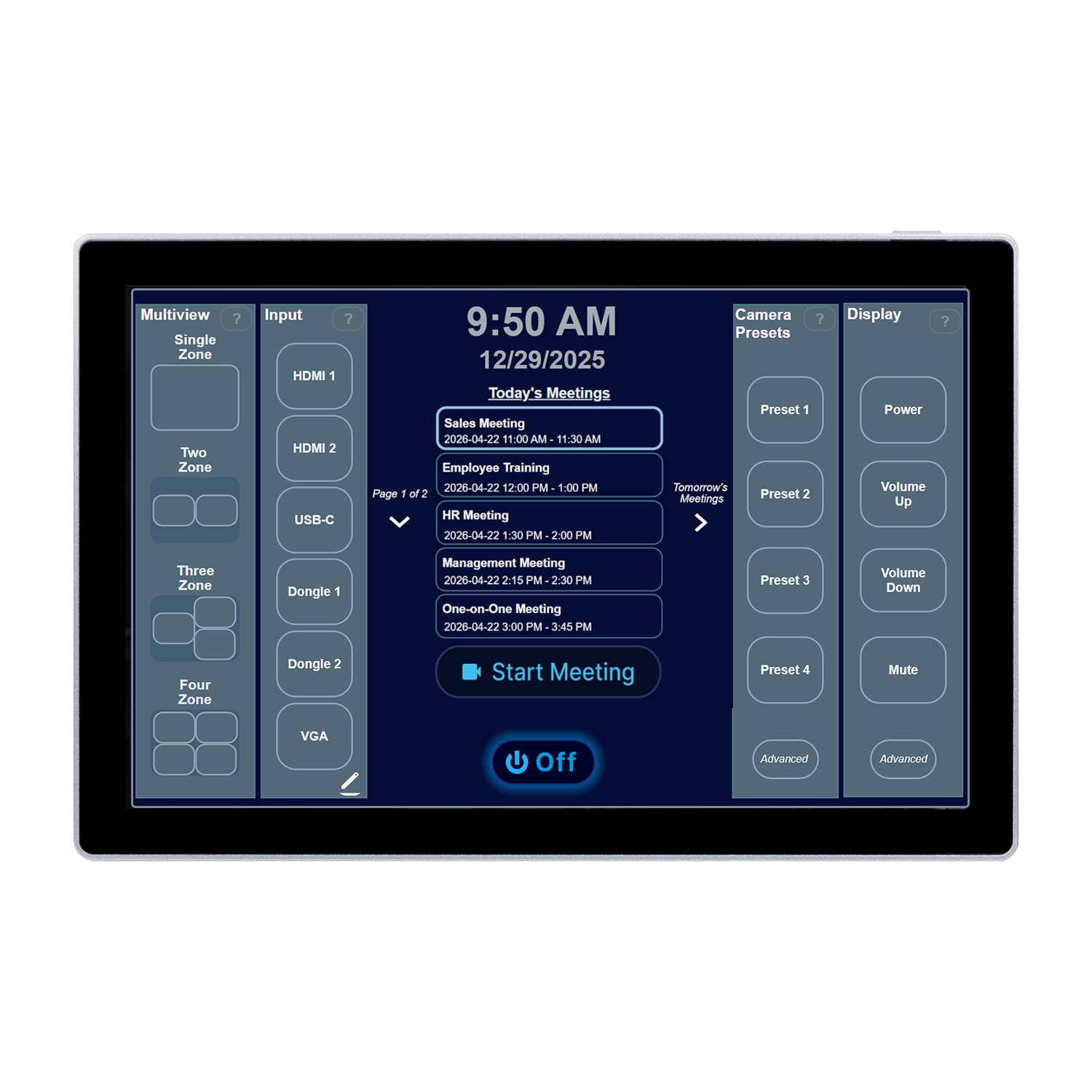

From the sleek 10” touchscreen, you can control layouts, sources, display modes, connected devices, and room settings such as lights or shades—all from one intuitive interface.

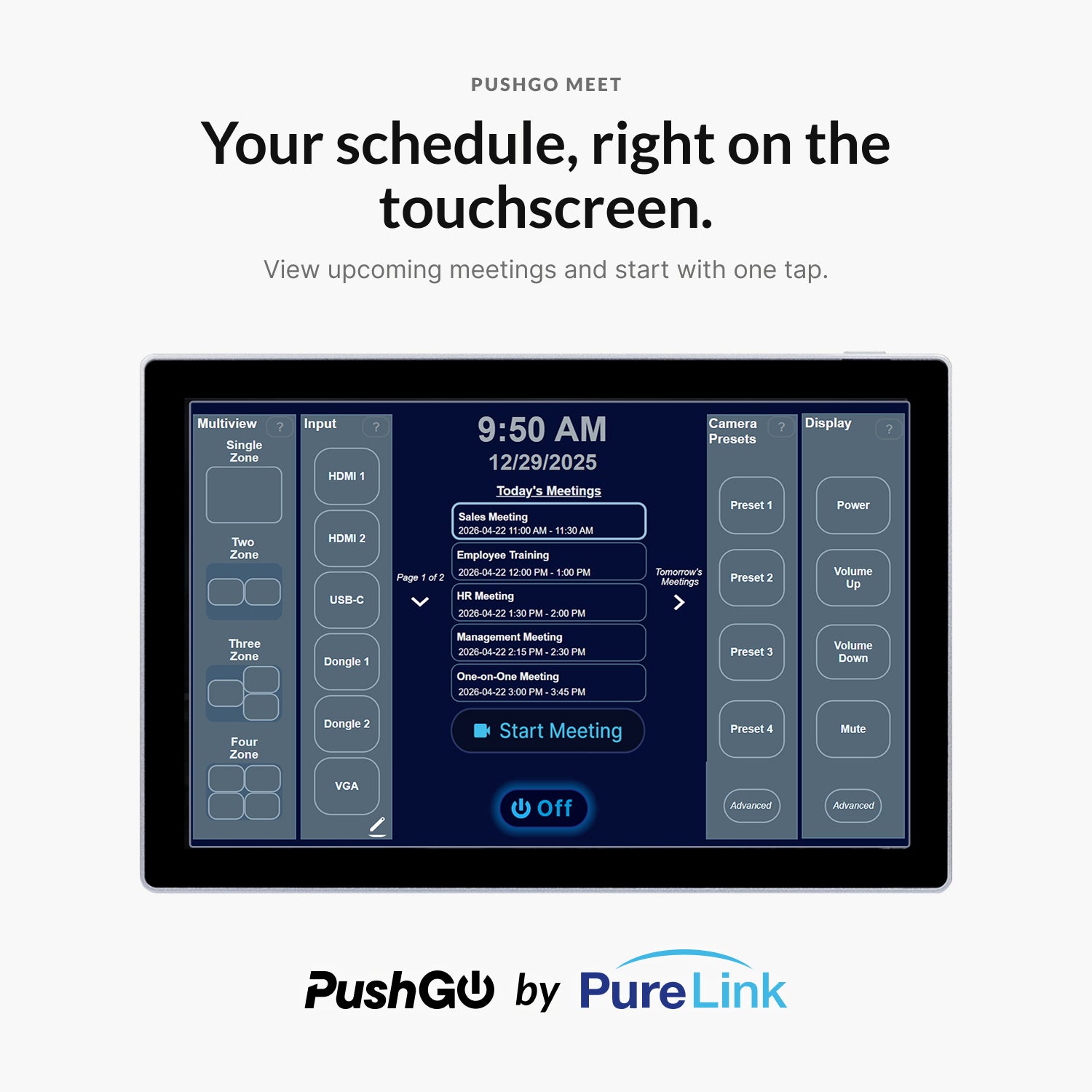

With PushGo Meet now built in, Taos also brings your daily meeting schedule directly to the touchscreen. Once connected to your Outlook or Google Calendar account, your meetings appear directly on the PushGo touchscreen so you can start sessions with a single tap, stay aligned with real-time updates, and move through your day without interruption.
By combining multi-user connectivity, flexible screen sharing, touchscreen control, and built-in scheduling awareness, PushGo Taos turns any workspace into a hub for intelligent, connected collaboration.
Customization Available: Each PushGo package can be tailored to your specific needs, including interface or hardware options. Contact us for more details on how to customize your system.
Key Features
- Fully pre-configured and ready to perform
- Plug-and-play design for same-day setup
- Premium 10” touchscreen control for layouts, sources, display modes, and room settings
- High-quality 4K video and balanced audio output
- Supports up to eight HDMI, USB-C, or VGA devices
- Wired and wireless BYOD connectivity for laptops and phones
- Multi-view layouts for sharing multiple screens at once
- Built-in calendar-connected meeting control with PushGo Meet
- Connects with Outlook and Google Calendar after account setup
- Daily meeting schedule displayed directly on the PushGo touchscreen
- One-touch meeting start from the touchscreen
- Real-time schedule updates for newly added, moved, or canceled meetings
- View current and upcoming meetings at a glance
- Compatible with Zoom, Microsoft Teams, Google Meet, GoToMeeting, and more
- Includes all essential hardware and cables
- Complimentary logo branding on touchscreen
- Ideal for huddle rooms, classrooms, collaborative workspaces, and creative studios
Specifications
PureLink iCON-T10 Tabletop Touchscreen Controller
| Standards & Compliance |
|
| Compliance |
TAA |
| Regulatory Certifications |
CE, FCC, RoHS, UL |
| Communications & Control |
|
| Programming |
iCON EZControl IDE |
| Control Protocol |
LAN (TCP/IP), RS-485 (bidirectional) |
| Control Ports |
LAN, RS-485 |
| Control Connector Type |
RJ45, 3.81mm Phoenix connector (3-pin) |
| Mechanical Features |
|
| Touch Panel Size |
10 in |
| Touch Panel Resolution |
1280 × 800 |
| Network Port |
1 × LAN (RJ45) |
| RS-232/485 Port |
1 × 3.81mm Phoenix connector (3-pin) |
| Debug |
1 × Micro USB |
| Power |
|
| Power Input |
PoE (IEEE 802.3af), DC 24V/1A via 2-pin Phoenix |
| Power Supply |
Alternative Power: AC 100–240V |
| Power Consumption |
6W max |
| Environment |
|
| Operating Temperature |
32° to 104°F / 0° to 40°C |
| Relative Humidity |
10–90% RH, non-condensing |
| Enclosure |
|
| Mounting Option |
Table |
| Product Dimensions (W × D × H) |
9.66 in × 6.46 in × 1.06 in / 245.4mm × 164mm × 27mm |
| Weight |
1.96 lbs / 887g |
| Warranty |
|
| Parts |
1 Year |
| Labor |
1 Year |
PureLink iCON-E1 Control Expander
| Standards & Compliance |
|
| Compliance |
TAA |
| Regulatory Certifications |
FCC, CE, RoHS, UKCA |
| Communications & Control |
|
| Programming |
iCON EZControl IDE |
| Control Protocol |
LAN (TCP/IP), RS-232 (bidirectional), RS-485 (bidirectional), IR, I/O, Relay |
| Control Ports |
LAN, RS-232, RS-485, IR, I/O |
| Control Connector Type |
RJ45, 3.81mm Mini Phoenix, 5-pin 3.81mm Mini Phoenix, 2-pin 3.81mm Mini Phoenix |
| Power |
|
| Power Input |
PoE (IEEE 802.3af), DC 12–24V/1A via 2-pin Phoenix |
| Power Supply |
AC 100–240V, 50/60Hz |
| Power Consumption |
0.48W max |
| Environment |
|
| Operating Temperature |
32° to 104°F / 0° to 40°C |
| Storage Temperature |
4° to 140°F / 0° to 60°C |
| Relative Humidity |
20–90% RH, non-condensing |
| Enclosure |
|
| Rack Mounting Option |
No |
| Product Dimensions (W × D × H) |
5.79 in × 5.12 in × 1.65 in / 147mm × 130mm × 42mm |
| Weight |
1.48 lbs / 673g |
| Warranty |
|
| Parts |
3 Years |
| Labor |
3 Years |

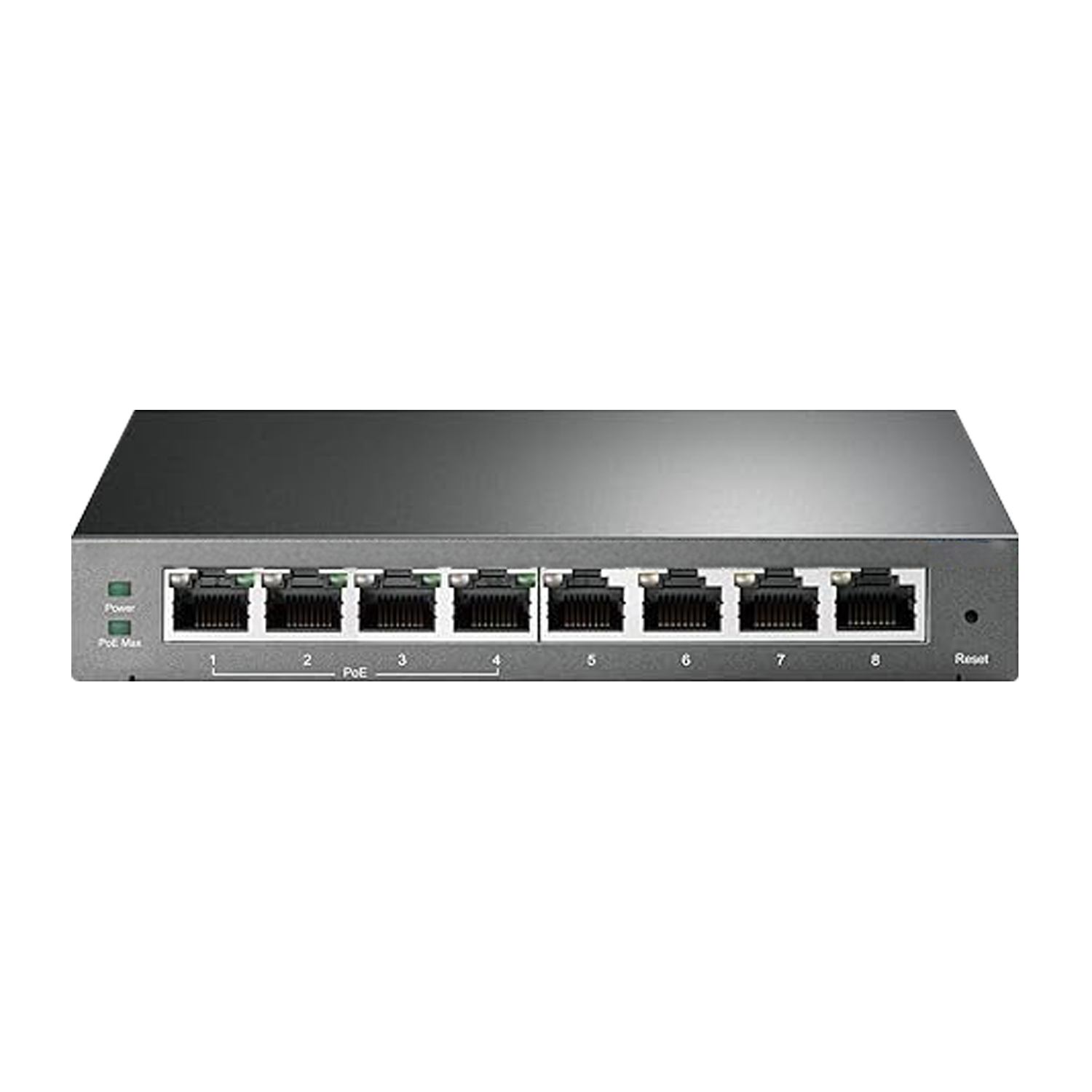

TL-SG108PE 8-Port Network Switch
| Connector Types & Features |
|
| Ports |
4 × PoE+ ports, 8 × Gigabit RJ45 ports |
| Switching Capacity |
16 Gbps |
| Packet Forwarding Rate |
11.9 Mpps |
| Packet Buffer Memory |
1.5 Mb |
| Jumbo Frame |
15 KB |
| Power |
|
| Power Consumption |
74.27W max |
| Enclosure |
|
| Product Dimensions (W × D × H) |
6.2 in × 4.0 in × 1.0 in / 158mm × 101mm × 25mm |
| Warranty |
|
| Parts |
3 Years |
| Labor |
3 Years |
PureLink Collabora 8 4K Multiviewer Collaboration Hub
| Standards & Compliance |
|
| Signal Standards |
HDMI 2.0 |
| Matrix Connector Types |
|
| HDMI Inputs |
2 × HDMI IN (Type A, 19-pin female) |
| HDMI Outputs |
2 × HDMI OUT (Type A, 19-pin female) |
| VGA Input |
1 × 15-pin DE-15 |
| IR In |
1 × 3.5mm TRS |
| IR Out |
1 × 3.5mm TRS |
| RS-232 |
2 × 3.5mm 4-pin Phoenix |
| TCP/IP |
1 × LAN (RJ45) |
| Firmware/Pairing Port |
1 × USB-A |
| USB Hosts |
2 × USB-B |
| USB Devices |
3 × USB-A |
| USB Input |
1 × USB-C IN |
| COLLABORA-8-4K-DONGLE-2 Connector Types |
|
| HDMI Input |
1 × HDMI IN (Type A, 19-pin female) |
| USB Inputs |
1 × USB-C, 1 × USB-A |
| Performance |
|
| Max Video Resolution |
HDMI OUT 1: 4K60 (4:4:4); HDMI OUT 2: 1920 × 1080p60 |
| HDCP |
HDCP 2.2 |
| HDMI Audio Formats |
PCM 2.0, 16-bit, 32/44.1/48kHz |
| Dongle Connections |
Up to 4 dongles per switcher |
| RS-232 Support |
Yes |
| ESD Protection |
Human Body Model: ±8kV air-gap discharge and ±4kV contact discharge |
| Wireless Standard |
IEEE 802.11a/b/g/n/ac |
| Frequency |
Dual-band, 2.4–2.4835GHz and 5.0–5.8GHz |
| Throughput |
867 Mbps |
| Security |
WEP, TKIP, AES, WPA, WPA2 |
| Power Transmitter |
|
| Power Input |
DC 12V/1.0A |
| Power Supply |
AC 100–240V, 50/60Hz |
| Power Consumption |
20W max |
| Environment |
|
| Operating Temperature |
32° to 113°F / 0° to 45°C |
| Storage Temperature |
-4° to 158°F / -20° to 70°C |
| Relative Humidity |
10–90% |
| Enclosure |
|
| Product Dimensions (W × D × H) |
8.46 in × 1.65 in × 5.52 in / 214.88mm × 41.91mm × 140.21mm |
| Weight |
2.2 lbs / 998g |
| Warranty |
|
| Parts |
3 Years |
| Labor |
3 Years |
