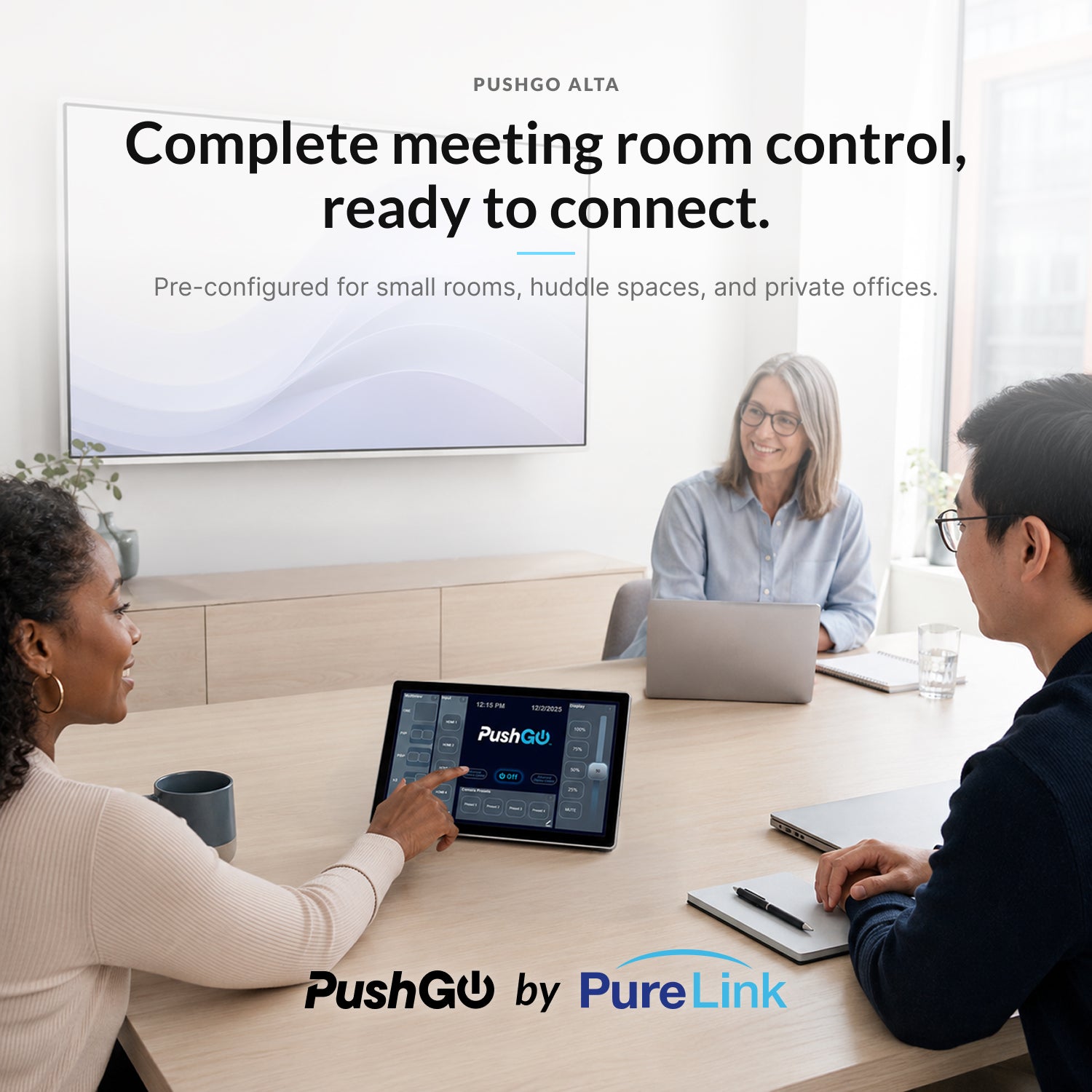

PushGo Alta transforms small collaboration areas and huddle rooms into fully equipped, connected meeting environments with a complete all-in-one meeting system. Designed as a true “meeting space system in a box,” PushGo Alta combines control, video routing, audio, switching, and cabling into a single streamlined solution for professional presentations and collaboration.

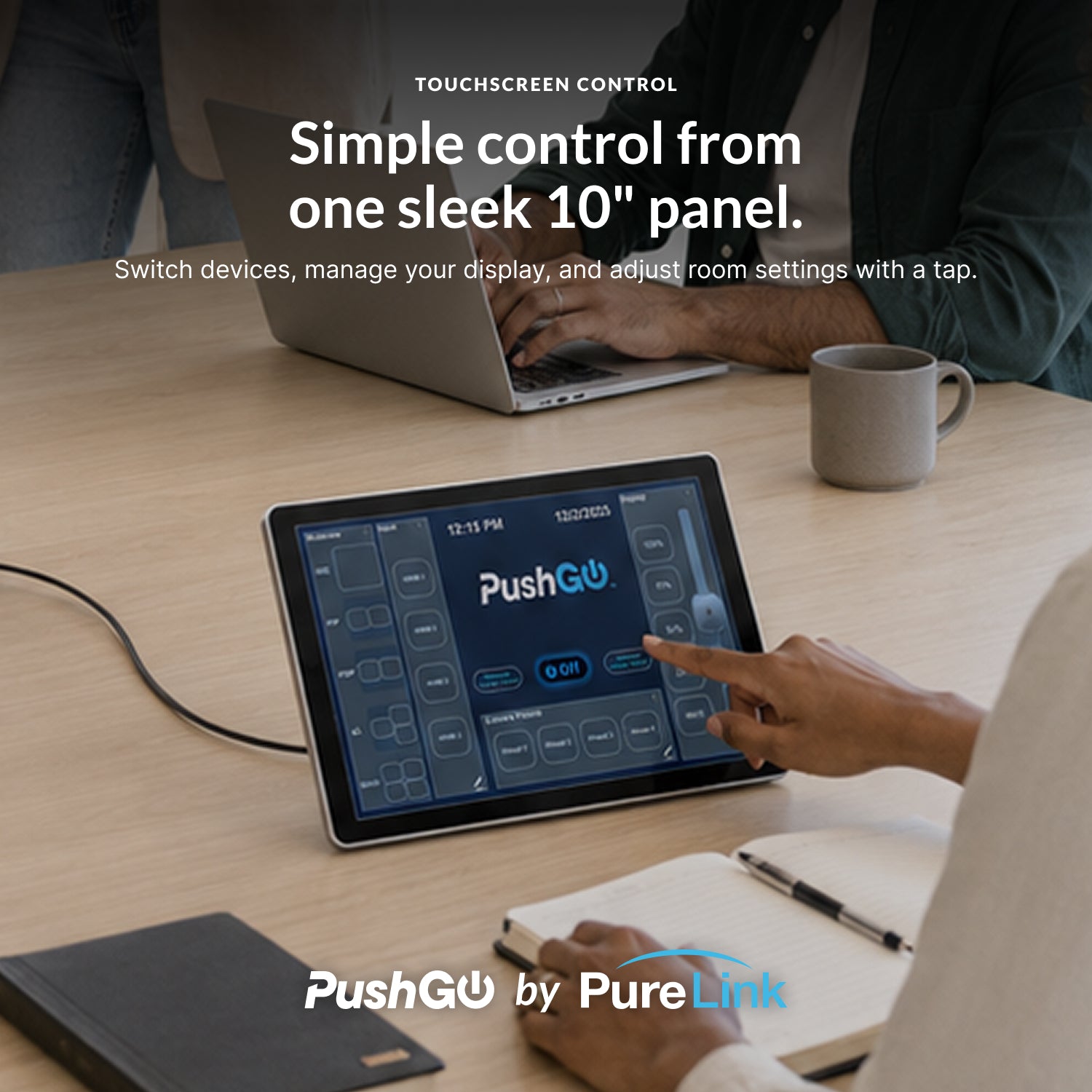

Delivered pre-configured and pre-programmed, PushGo Alta arrives ready for same-day installation, so smaller meeting spaces can be operational quickly with reliable performance. Its 10-inch touchscreen provides intuitive control for switching presentation sources, managing connected devices, and adjusting lighting or shades. Crisp video and clear, balanced audio deliver polished, professional meetings every time.

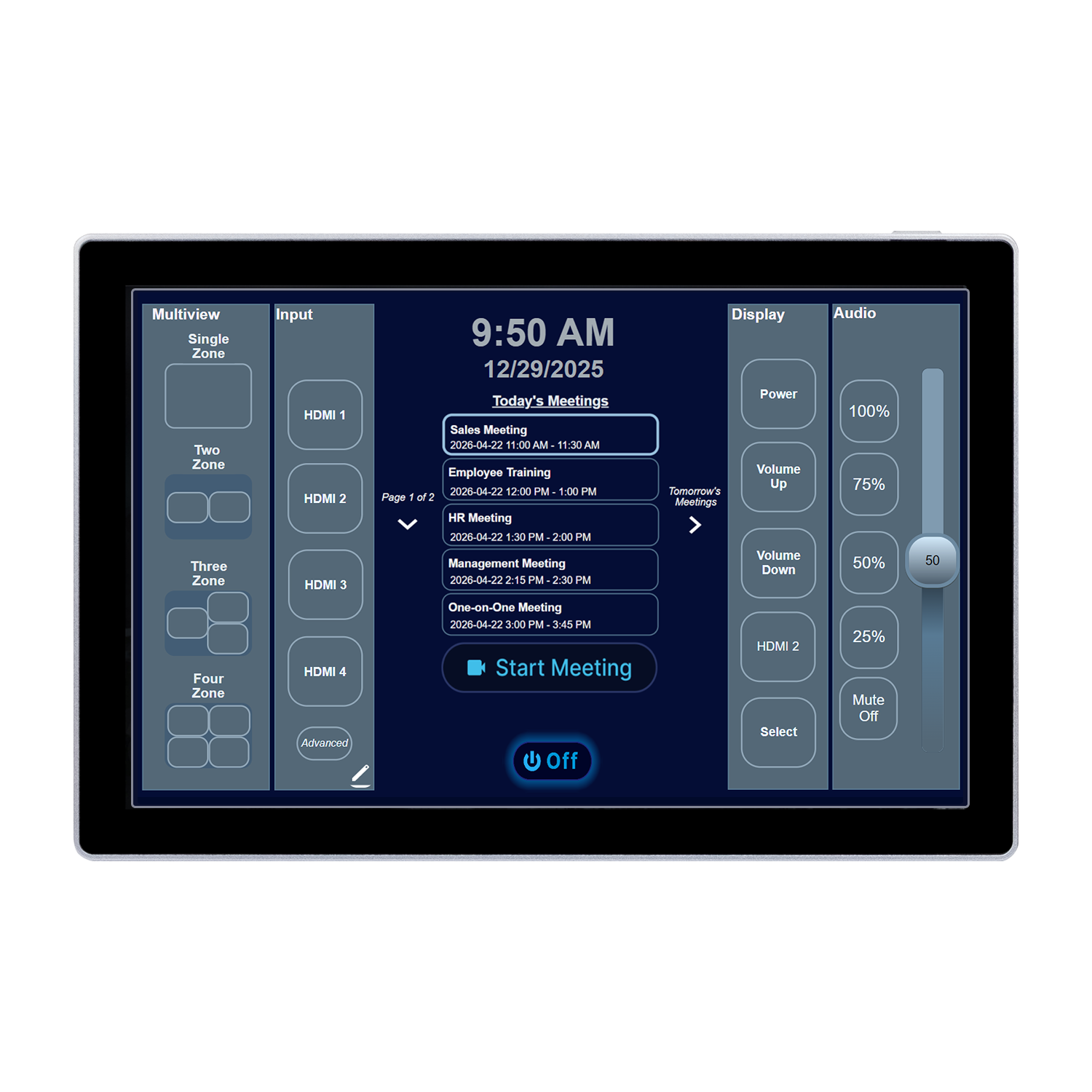

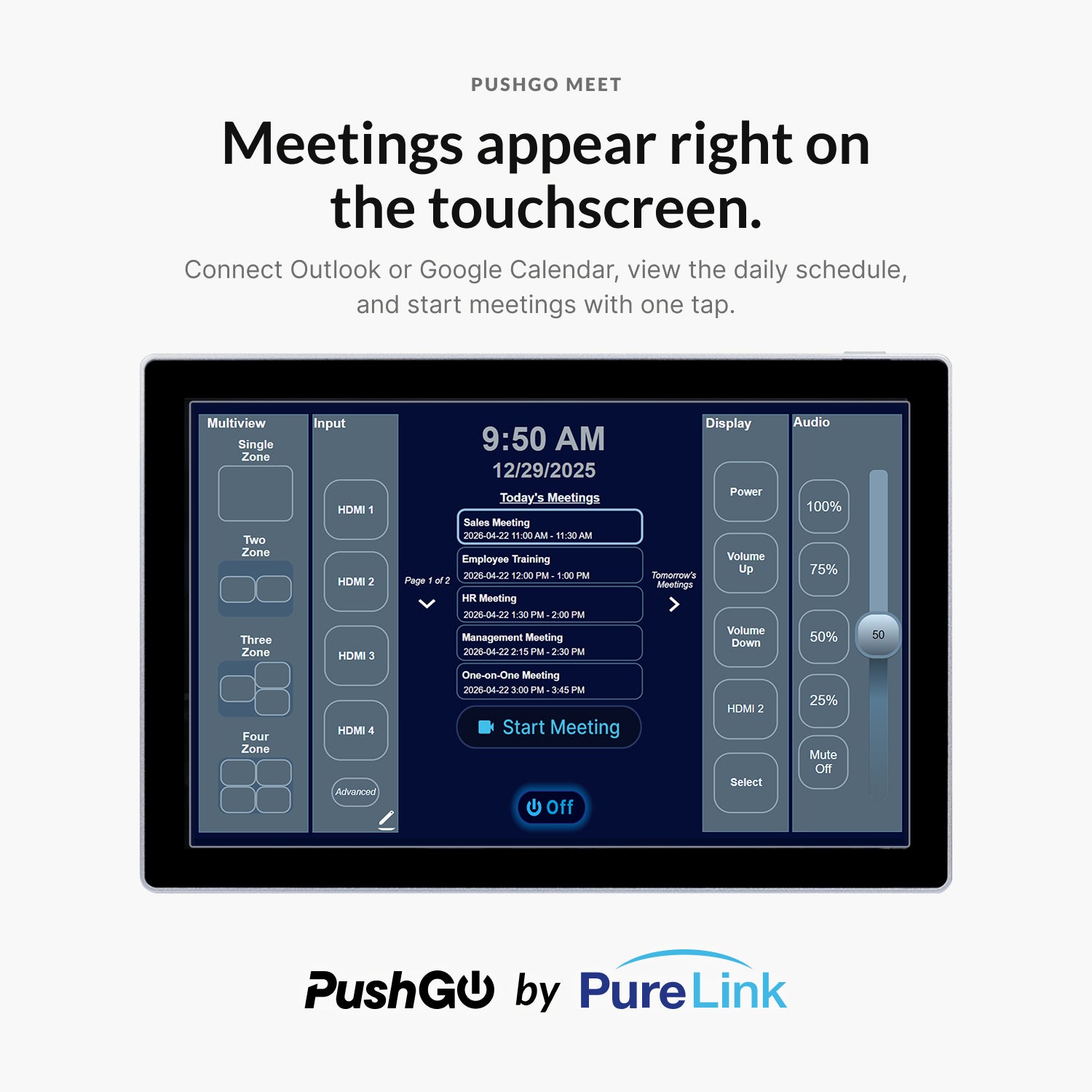

With PushGo Meet now built in, Alta also brings your daily meeting schedule directly to the touchscreen. Once connected to your Outlook or Google Calendar account, your meetings appear directly on the PushGo touchscreen so you can start sessions with a single tap, stay aligned with real-time updates, and move through your day without interruption.
Alta also supports flexible multiview layouts, allowing multiple sources to appear on screen simultaneously for side-by-side comparisons and collaborative discussions.
By combining all-in-one simplicity with essential collaboration capabilities, PushGo Alta delivers seamless, easy-to-use meeting experiences for smaller rooms and everyday workspaces.
Customization Available: Each PushGo package can be tailored to your specific needs, including interface or hardware options. Contact us for more details on how to customize your system.
Key Features
- Fully pre-configured and ready to perform
- Plug-and-play design for same-day setup
- Premium 10” touchscreen control for inputs, sources, and room settings
- Stunning 4K video and high-quality audio output
- Supports up to four HDMI devices
- Flexible multiview layouts for viewing multiple sources at once
- Built-in calendar-connected meeting control with PushGo Meet
- Connects with Outlook and Google Calendar after account setup
- Daily meeting schedule displayed directly on the PushGo touchscreen
- One-touch meeting start from the touchscreen
- Real-time schedule updates for newly added, moved, or canceled meetings
- View current and upcoming meetings at a glance
- Compatible with Zoom, Microsoft Teams, Webex, and more
- Includes all essential hardware and cables

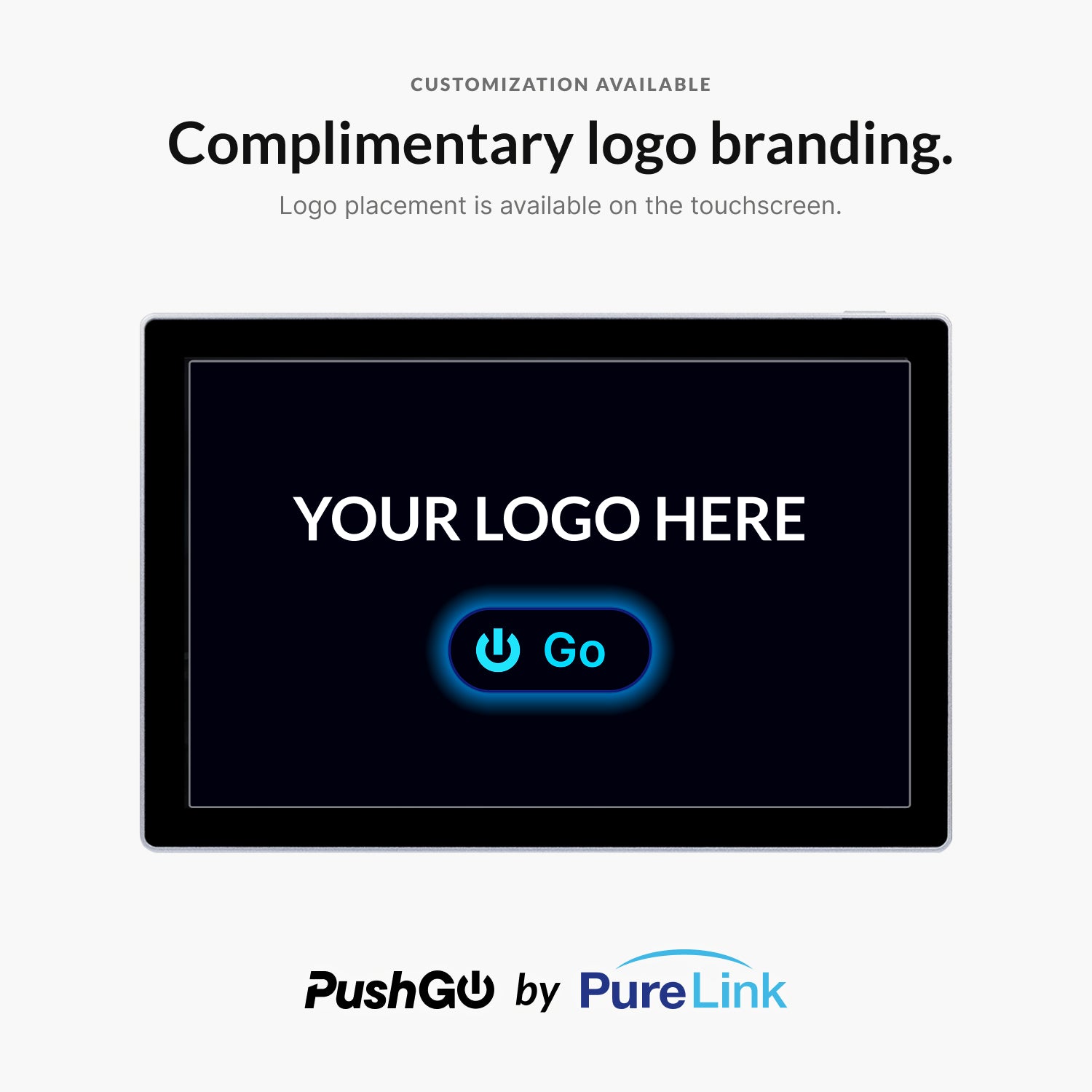

- Complimentary logo branding on touchscreen

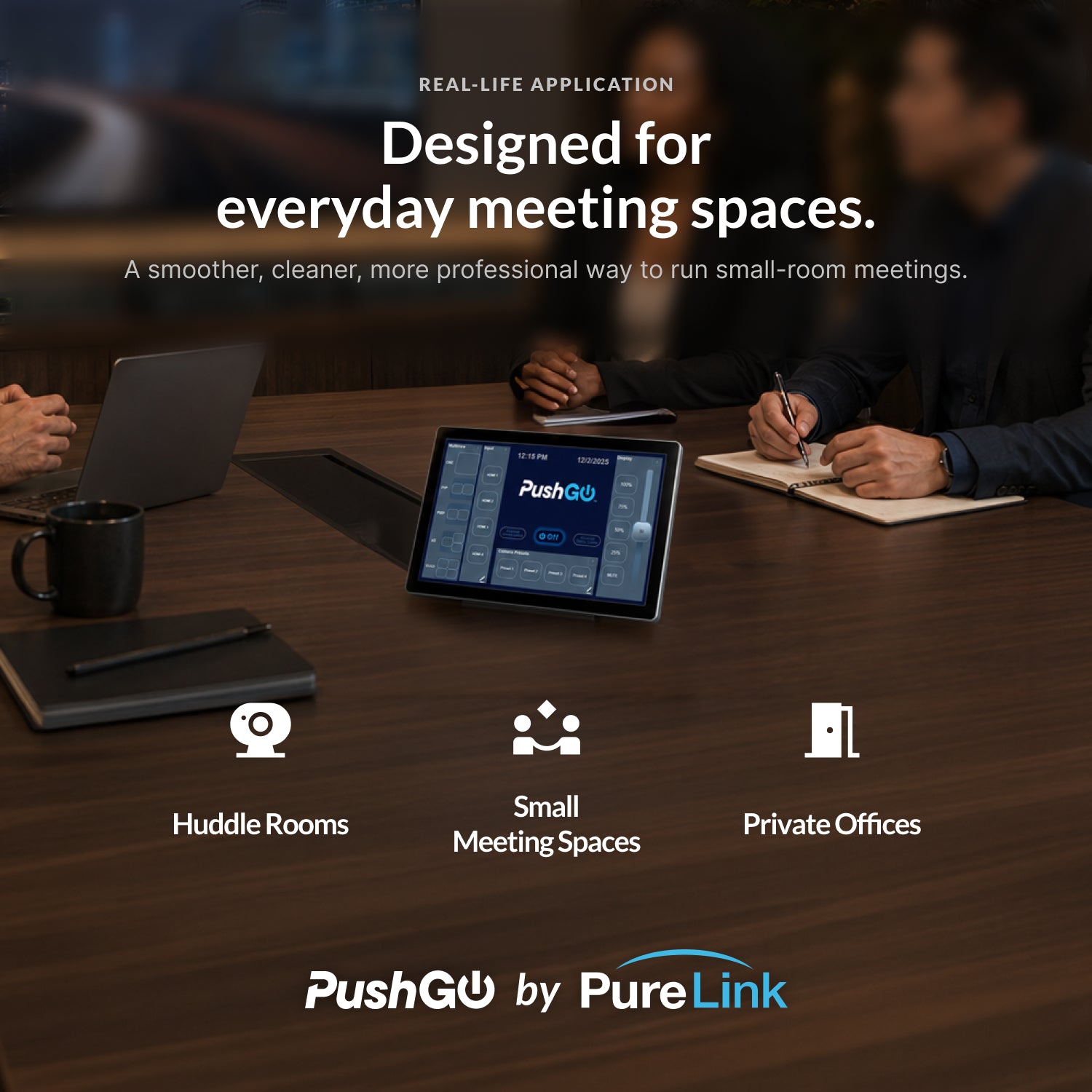

- Ideal for huddle rooms and small meeting spaces
Specifications
PureLink iCON-T10 Tabletop Touchscreen Controller
| Standards & Compliance |
|
| Compliance |
TAA |
| Regulatory Certifications |
CE, FCC, RoHS, UL |
| Communications & Control |
|
| Programming |
iCON EZControl IDE |
| Control Protocol |
LAN (TCP/IP), RS-485 (bidirectional) |
| Control Ports |
LAN, RS-485 |
| Control Connector Type |
RJ45, 3.81mm Phoenix connector (3-pin) |
| Mechanical Features |
|
| Touch Panel Size |
10 in |
| Touch Panel Resolution |
1280 × 800 |
| Network Port |
1 × LAN (RJ45) |
| RS-232/485 Port |
1 × 3.81mm Phoenix connector (3-pin) |
| Debug |
1 × Micro USB |
| Power |
|
| Power Input |
PoE (IEEE 802.3af), DC 24V/1A via 2-pin Phoenix |
| Power Supply |
Alternative Power: AC 100–240V |
| Power Consumption |
6W max |
| Environment |
|
| Operating Temperature |
32° to 104°F / 0° to 40°C |
| Relative Humidity |
10–90% RH, non-condensing |
| Enclosure |
|
| Mounting Option |
Table |
| Product Dimensions (W × D × H) |
9.66 in × 6.46 in × 1.06 in / 245.4mm × 164mm × 27mm |
| Weight |
1.96 lbs / 887g |
| Warranty |
|
| Parts |
1 Year |
| Labor |
1 Year |
PureLink iCON-E1 Control Expander
| Standards & Compliance |
|
| Compliance |
TAA |
| Regulatory Certifications |
FCC, CE, RoHS, UKCA |
| Communications & Control |
|
| Programming |
iCON EZControl IDE |
| Control Protocol |
LAN (TCP/IP), RS-232 (bidirectional), RS-485 (bidirectional), IR, I/O, Relay |
| Control Ports |
LAN, RS-232, RS-485, IR, I/O |
| Control Connector Type |
RJ45, 3.81mm Mini Phoenix, 5-pin 3.81mm Mini Phoenix, 2-pin 3.81mm Mini Phoenix |
| Power |
|
| Power Input |
PoE (IEEE 802.3af), DC 12–24V/1A via 2-pin Phoenix |
| Power Supply |
AC 100–240V, 50/60Hz |
| Power Consumption |
0.48W max |
| Environment |
|
| Operating Temperature |
32° to 104°F / 0° to 40°C |
| Storage Temperature |
4° to 140°F / 0° to 60°C |
| Relative Humidity |
20–90% RH, non-condensing |
| Enclosure |
|
| Rack Mounting Option |
No |
| Product Dimensions (W × D × H) |
5.79 in × 5.12 in × 1.65 in / 147mm × 130mm × 42mm |
| Weight |
1.48 lbs / 673g |
| Warranty |
|
| Parts |
3 Years |
| Labor |
3 Years |

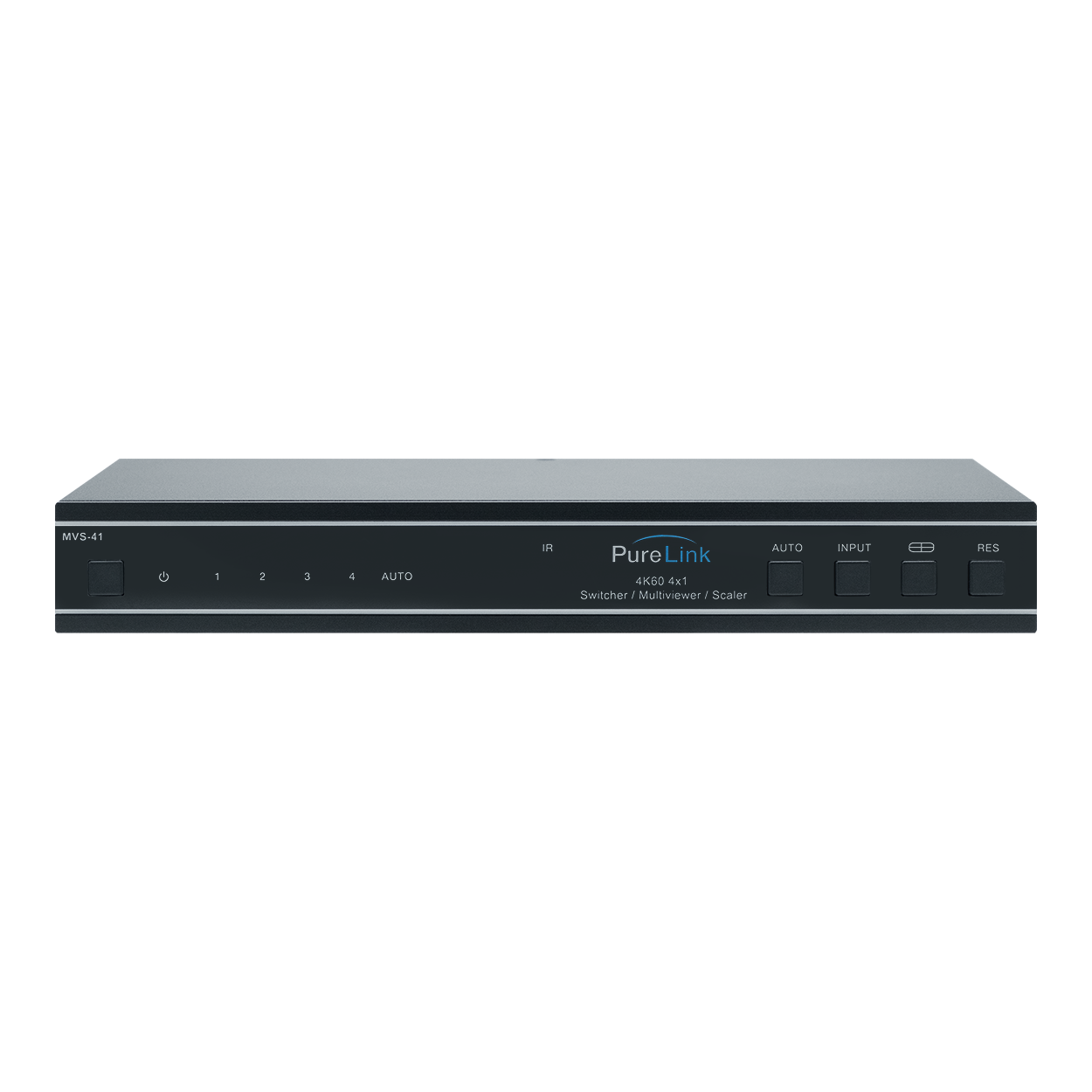

PureLink MVS-41 4K HDMI Switch
| Standards & Compliance |
|
| Signal Standards |
HDMI 2.0b |
| Connector Types |
|
| HDMI Inputs |
4 × HDMI IN (Type A, 19-pin female) |
| HDMI Output |
1 × HDMI OUT (Type A, 19-pin female) |
| IR In |
1 × 3.5mm TRS |
| RS-232 |
1 × 3.81mm 3-pin Phoenix |
| Optical Output |
1 × S/PDIF |
| Performance |
|
| Max Video Resolution |
4K60 (4:4:4) |
| HDR |
HDR10, HDR10+, HLG |
| HDCP |
HDCP 2.2 |
| HDMI Audio Formats |
Dolby Digital Plus, DTS, DTS High Resolution, PCM 2.0, PCM 5.1, PCM 7.1 |
| Optical Audio Formats |
PCM 2.0, Dolby Digital, DTS 5.1 |
| Analog Balanced Audio Formats |
PCM 2.0 Ch |
| Power |
|
| Power Input |
DC 12V/2.5A |
| Power Supply |
AC 100–240V, 50/60Hz |
| Power Consumption |
10W max |
| Environment |
|
| Operating Temperature |
32° to 104°F / 0° to 40°C |
| Storage Temperature |
-4° to 140°F / -20° to 60°C |
| Relative Humidity |
20–90% |
| Enclosure |
|
| Product Dimensions (W × D × H) |
8.66 in × 3.94 in × 1.18 in / 220mm × 100mm × 30mm |
| Weight |
1.37 lbs / 620g |
| Warranty |
|
| Parts |
3 Years |
| Labor |
3 Years |

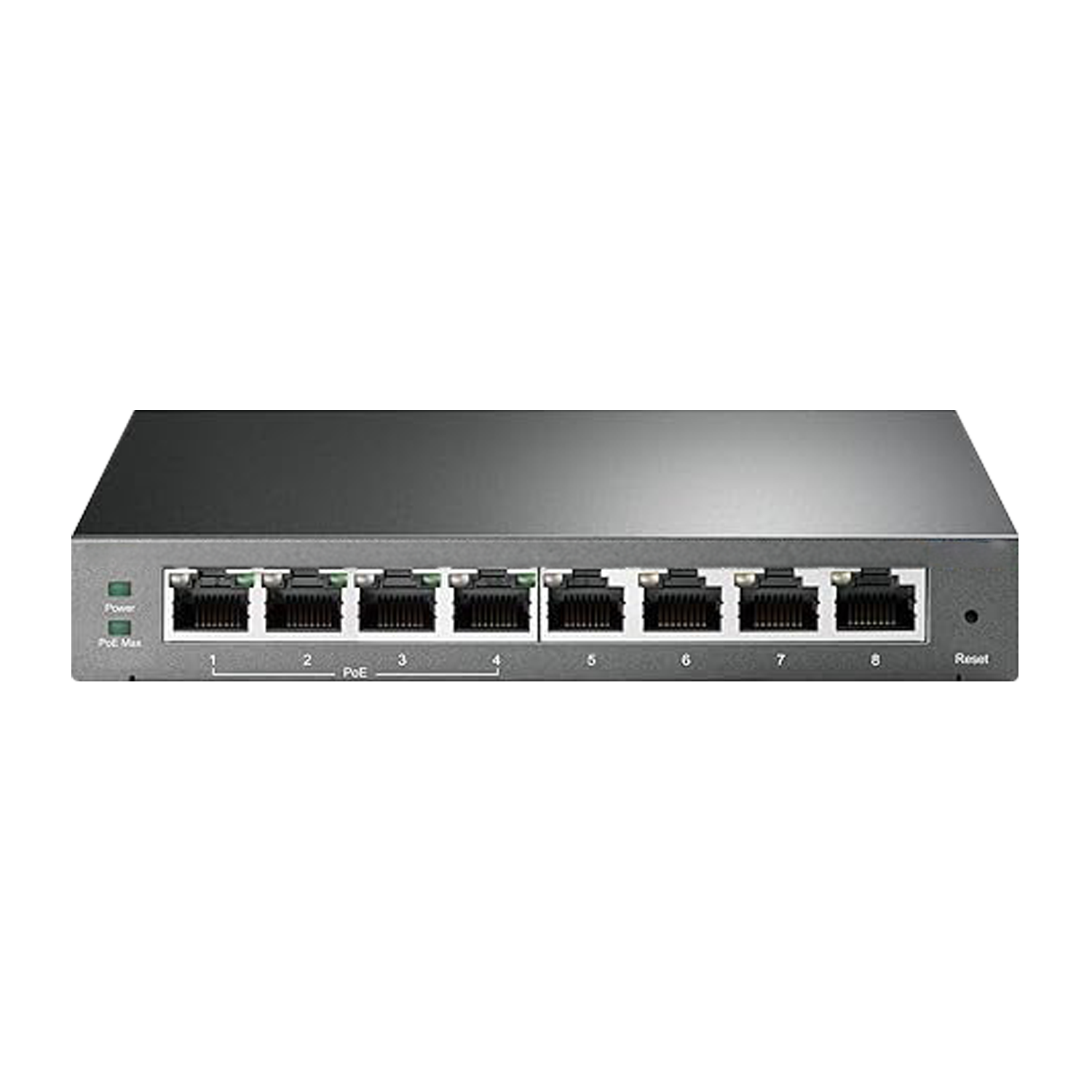

TL-SG108PE 8-Port Network Switch
| Connector Types & Features |
|
| Ports |
4 × PoE+ ports, 8 × Gigabit RJ45 ports |
| Switching Capacity |
16 Gbps |
| Packet Forwarding Rate |
11.9 Mpps |
| Packet Buffer Memory |
1.5 Mb |
| Jumbo Frame |
15 KB |
| Power |
|
| Power Consumption |
74.27W max |
| Enclosure |
|
| Product Dimensions (W × D × H) |
6.2 in × 4.0 in × 1.0 in / 158mm × 101mm × 25mm |
| Warranty |
|
| Parts |
3 Years |
| Labor |
3 Years |
