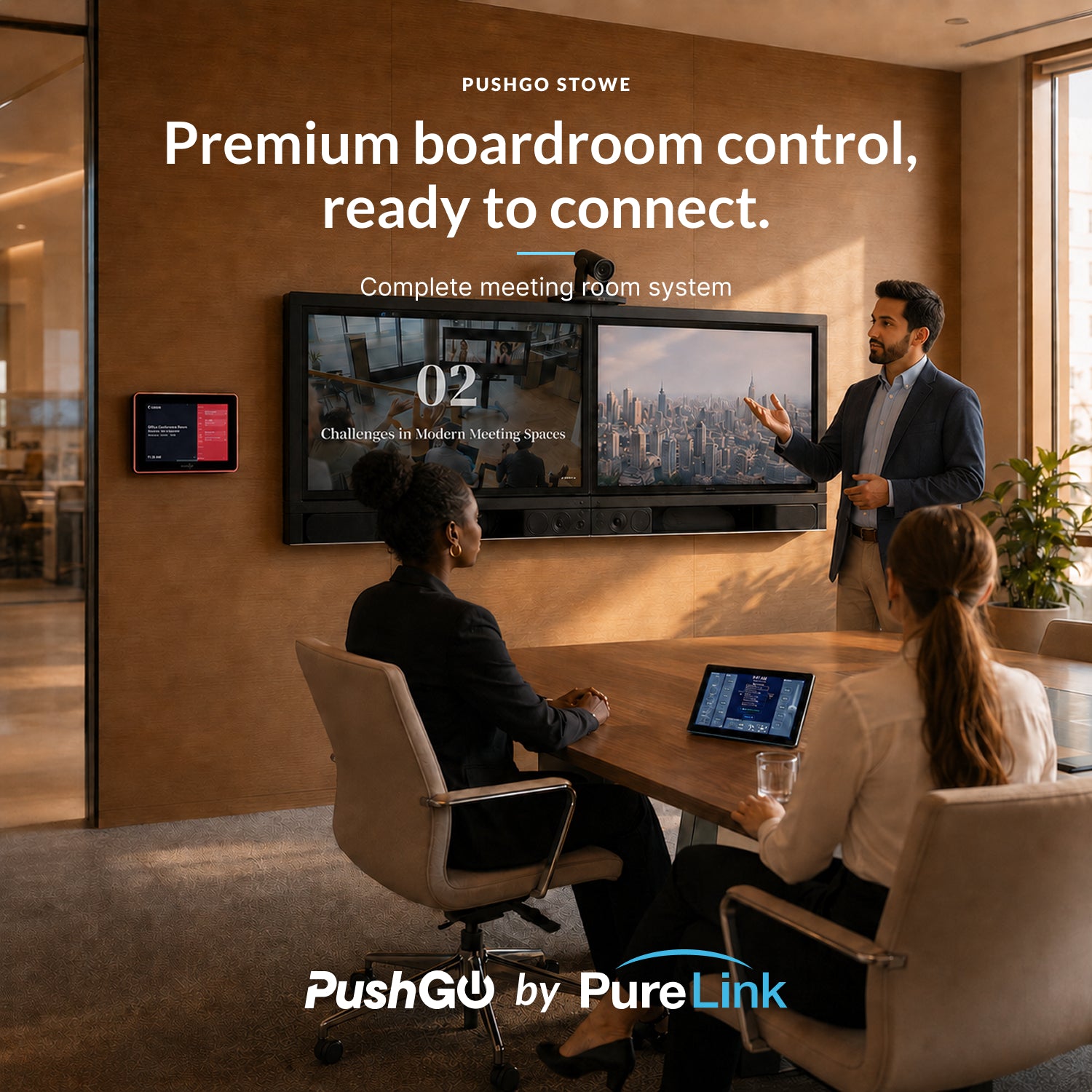

PushGo Stowe transforms executive boardrooms and large collaboration spaces into fully equipped, connected meeting environments with a complete all-in-one meeting system. Engineered as a “meeting space system in a box,” PushGo Stowe delivers professional-grade video, audio, control, switching, and scheduling in a single solution for high-performance meetings.
Delivered pre-configured and pre-programmed, PushGo Stowe arrives ready for same-day installation, providing reliable operation from day one. Once connected, Stowe’s professional PTZ camera captures every participant in sharp, true-to-life detail, while integrated Dante audio and DSP fill the room with clean, natural sound.

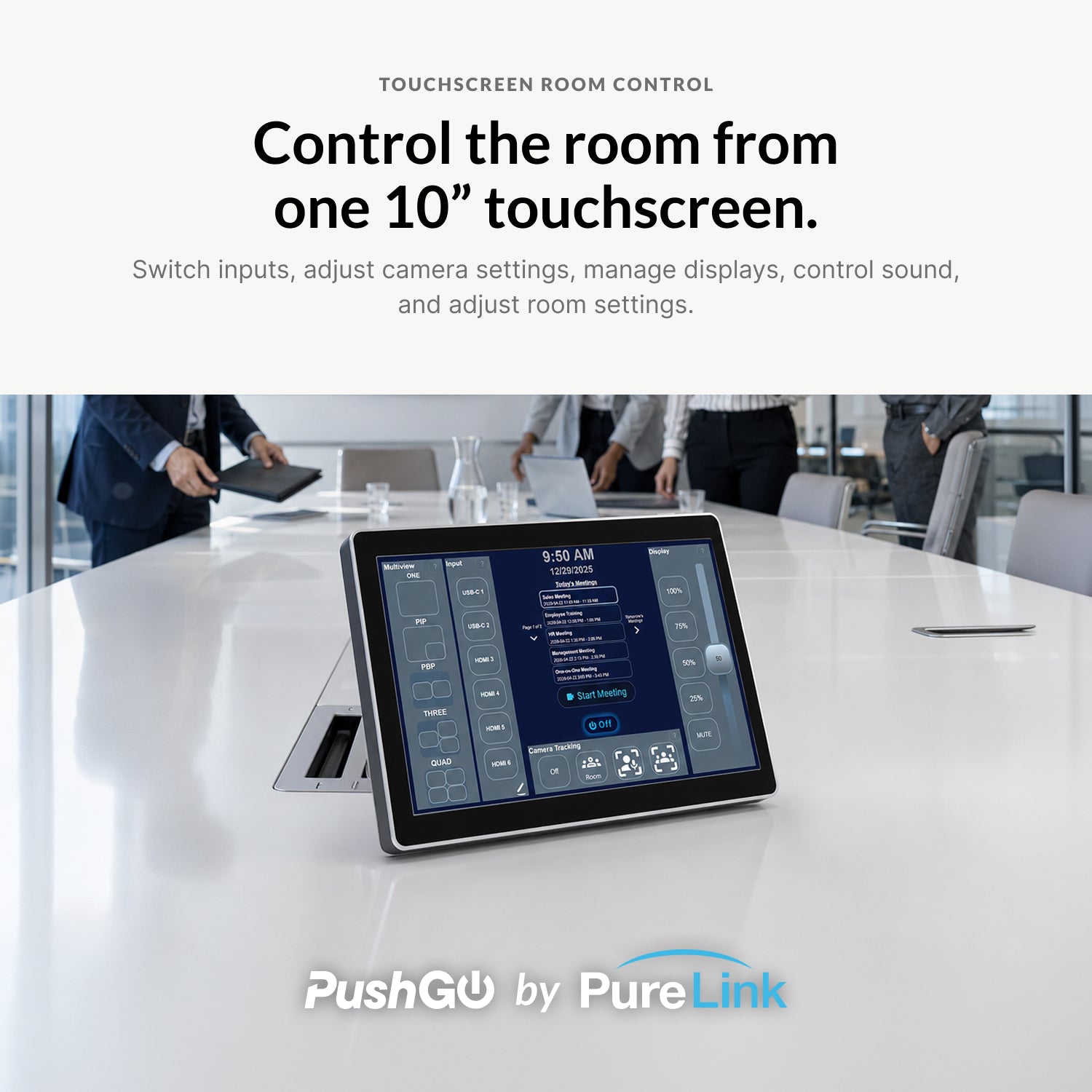

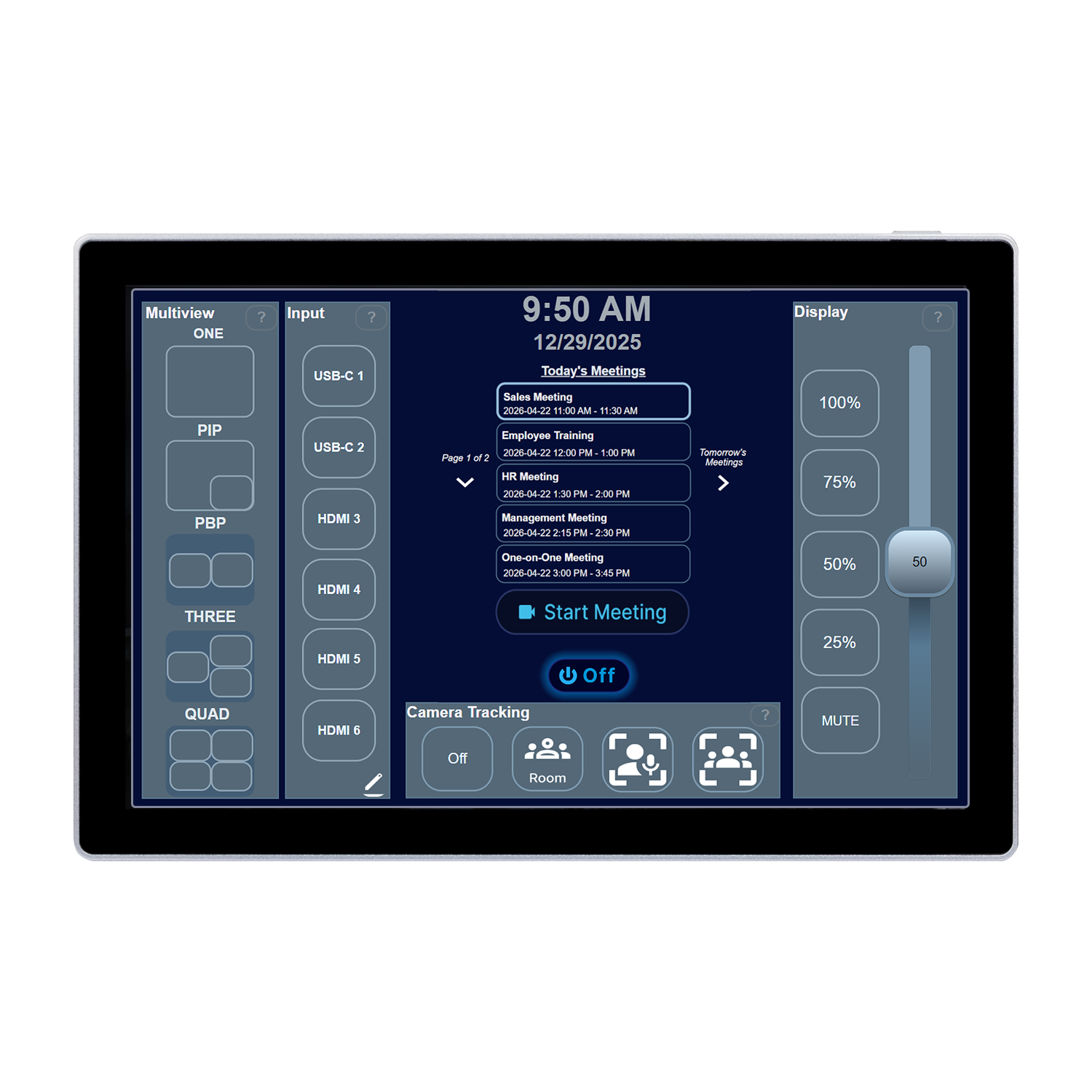

From the sleek 10” touchscreen, you can control switching, camera settings, displays, audio, and room settings such as lights or shades—all from one intuitive interface.

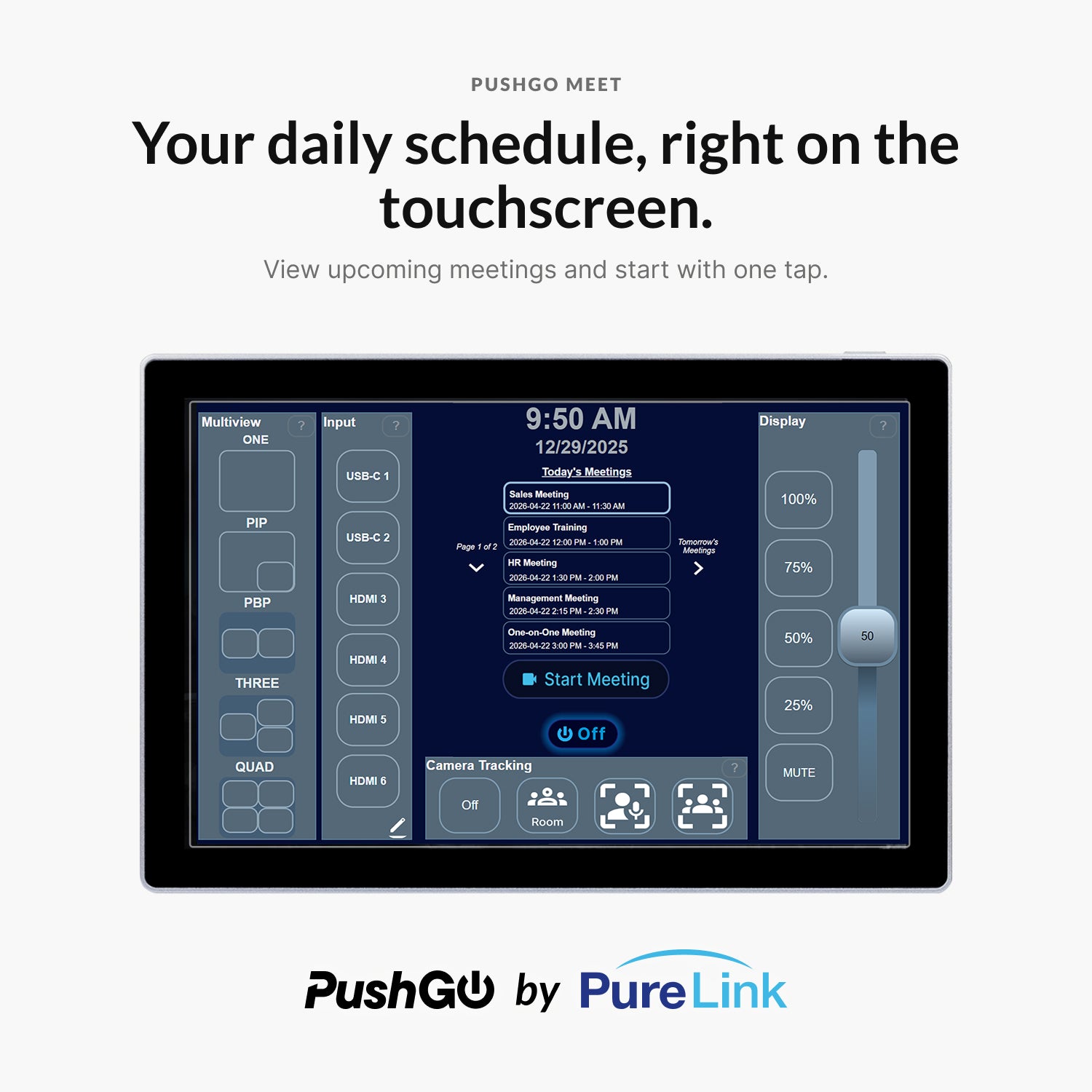

With PushGo Meet now built in, Stowe brings your daily meeting schedule directly to the touchscreen. Once connected to your Outlook or Google Calendar account, your meetings appear directly on the PushGo touchscreen so you can start sessions with a single tap, stay aligned with real-time updates, and move through your day without interruption.

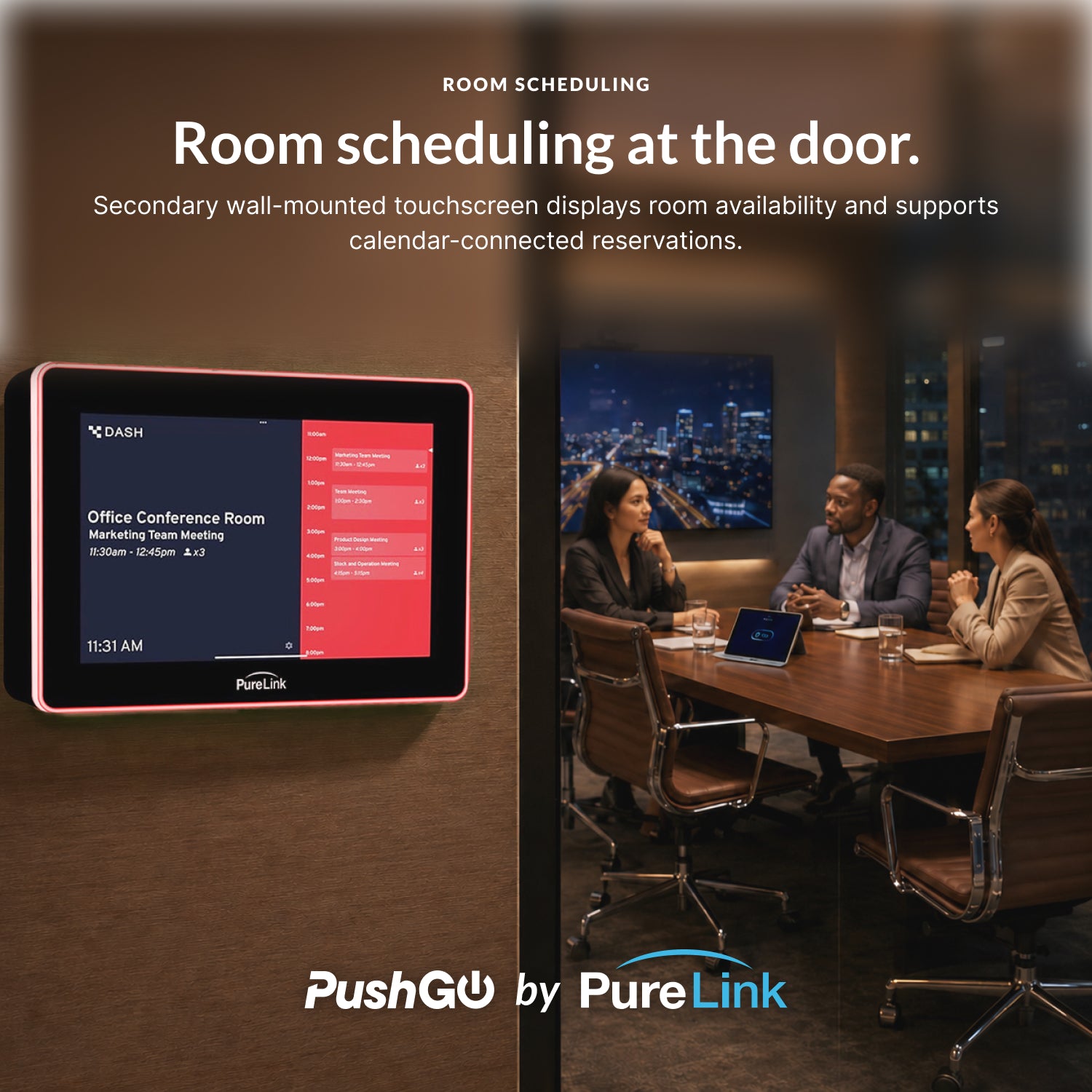

A secondary wall-mounted scheduling panel also provides clear room visibility and easy calendar-connected room management.
By combining professional-grade video, integrated Dante audio, touchscreen control, and built-in scheduling awareness, PushGo Stowe delivers polished, reliable, and high-performance meeting experiences for executives and large teams.
Customization Available: Each PushGo package can be tailored to your specific needs, including interface or hardware options. Contact us for more details on how to customize your system.
Key Features
- Fully pre-configured and ready to perform
- Plug-and-play design for same-day setup
- Premium 10” touchscreen control for switching, camera, displays, audio, and room settings

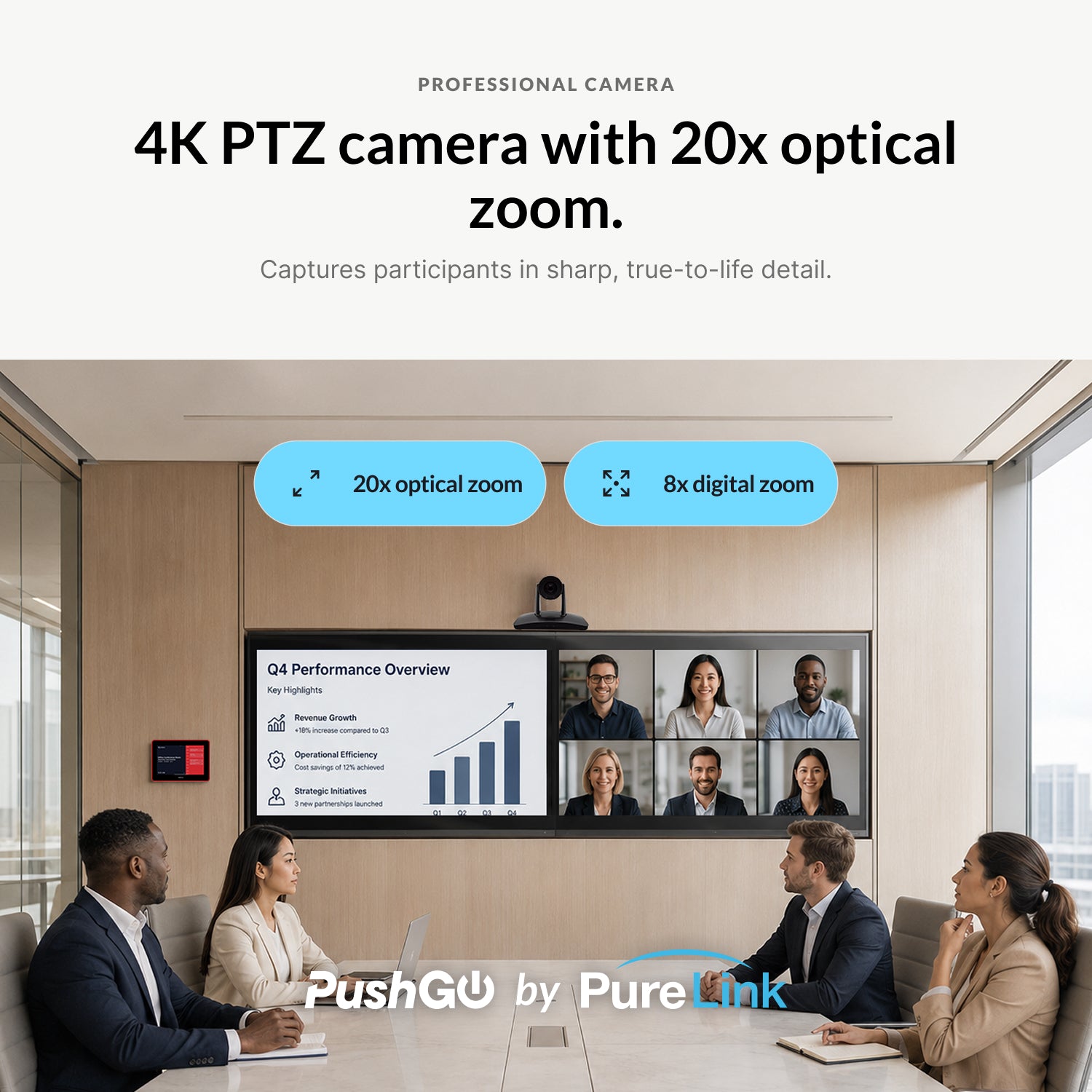

- Professional PTZ camera with optical zoom

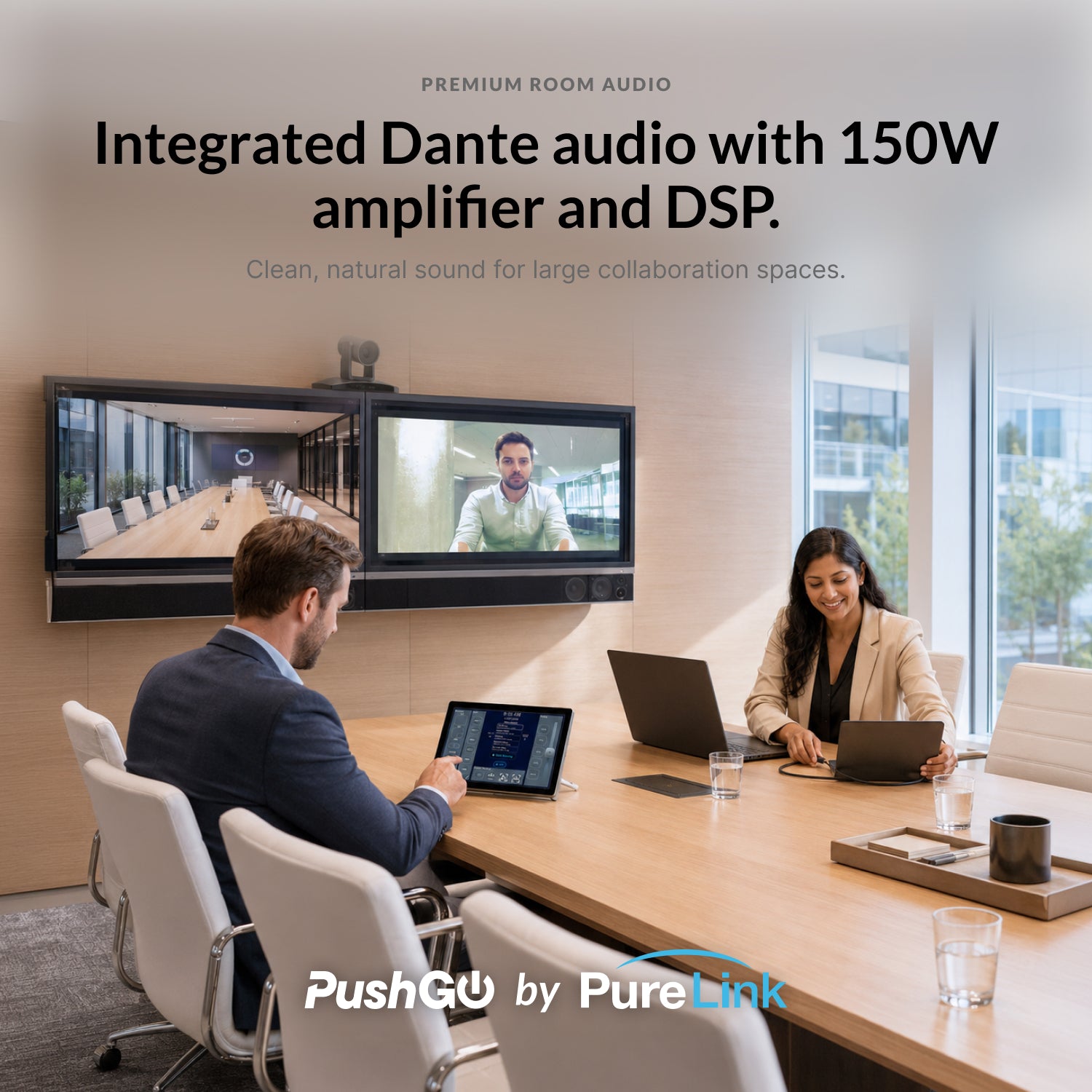

- Integrated Dante audio with DSP
- Flexible multiview layouts for simultaneous screen sharing

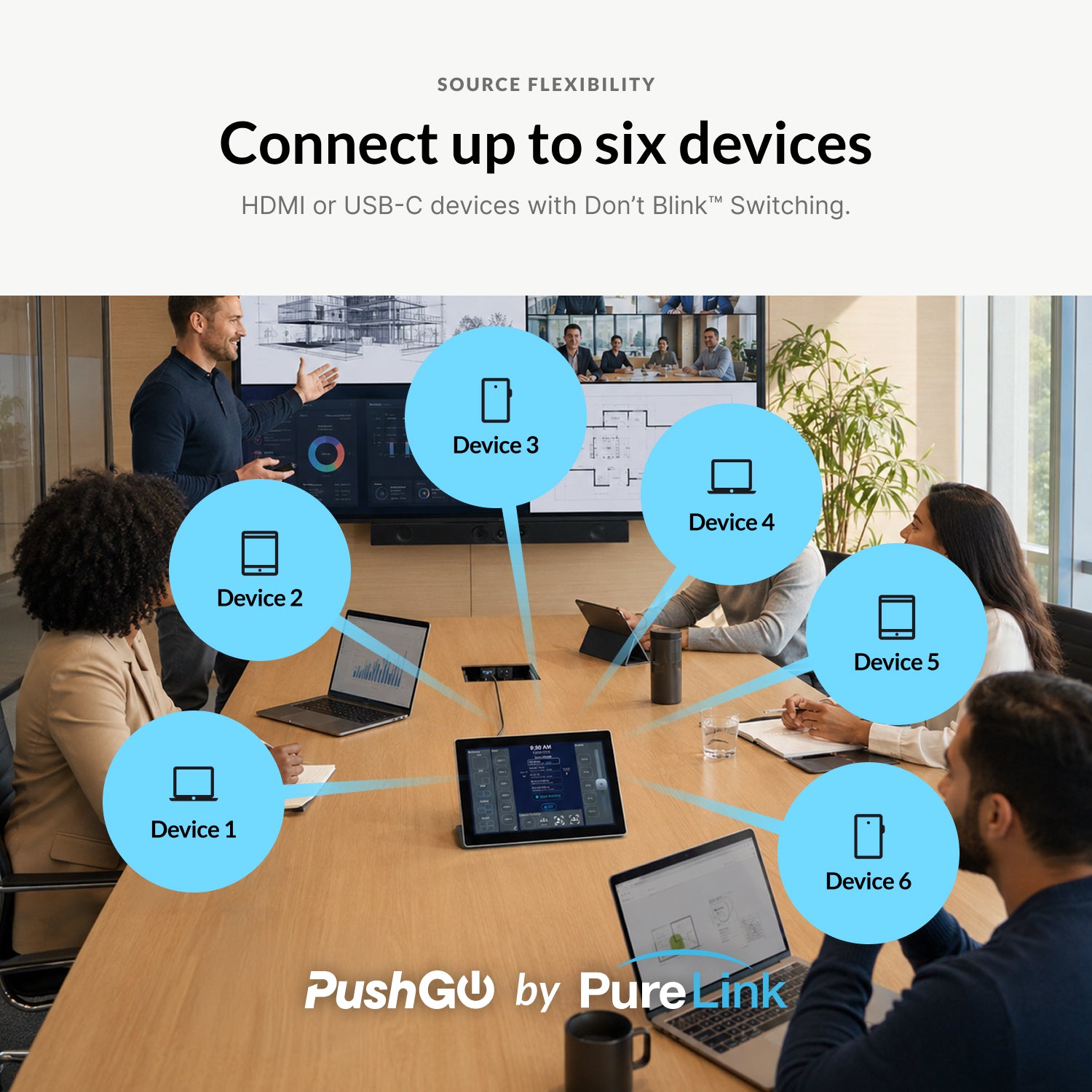

- Supports up to six HDMI or USB-C devices
- Built-in calendar-connected meeting control with PushGo Meet
- Connects with Outlook and Google Calendar after account setup
- Daily meeting schedule displayed directly on the PushGo touchscreen
- One-touch meeting start from the touchscreen
- Real-time schedule updates for newly added, moved, or canceled meetings
- View current and upcoming meetings at a glance
- Secondary room scheduling touchscreen with calendar integration
- Don’t Blink™ Switching for seamless, instant source transitions
- Compatible with Zoom, Microsoft Teams, Webex, Google Meet, and more
- Includes all essential hardware and cables

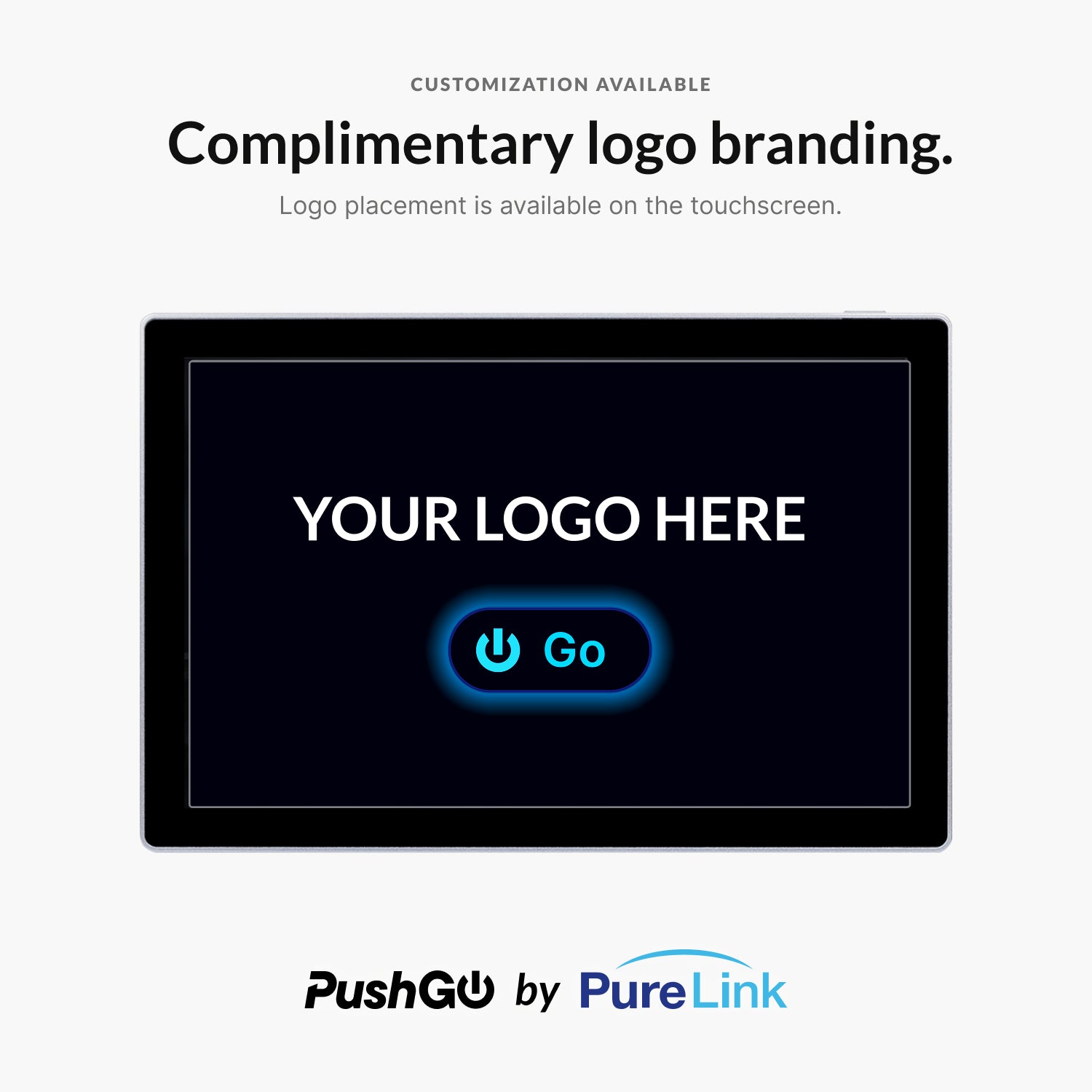

- Complimentary logo branding on touchscreen
- Ideal for executive offices, boardrooms, and training spaces
Specifications
PureLink iCON-T10 Tabletop Touchscreen Controller
| Standards & Compliance |
|
| Compliance |
TAA |
| Regulatory Certifications |
CE, FCC, RoHS, UL |
| Communications & Control |
|
| Programming |
iCON EZControl IDE |
| Control Protocol |
LAN (TCP/IP), RS-485 (bidirectional) |
| Control Ports |
LAN, RS-485 |
| Control Connector Type |
RJ45, 3.81mm Phoenix connector (3-pin) |
| Mechanical Features |
|
| Touch Panel Size |
10 in |
| Touch Panel Resolution |
1280 × 800 |
| Network Port |
1 × LAN (RJ45) |
| RS-232/485 Port |
1 × 3.81mm Phoenix connector (3-pin) |
| Debug |
1 × Micro USB |
| Power |
|
| Power Input |
PoE (IEEE 802.3af), DC 24V/1A via 2-pin Phoenix |
| Power Supply |
Alternative Power: AC 100–240V |
| Power Consumption |
6W max |
| Environment |
|
| Operating Temperature |
32° to 104°F / 0° to 40°C |
| Relative Humidity |
10–90% RH, non-condensing |
| Enclosure |
|
| Mounting Option |
Table |
| Product Dimensions (W × D × H) |
9.66 in × 6.46 in × 1.06 in / 245.4mm × 164mm × 27mm |
| Weight |
1.96 lbs / 887g |
| Warranty |
|
| Parts |
1 Year |
| Labor |
1 Year |
PureLink iCON-E1 Control Expander
| Standards & Compliance |
|
| Compliance |
TAA |
| Regulatory Certifications |
FCC, CE, RoHS, UKCA |
| Communications & Control |
|
| Programming |
iCON EZControl IDE |
| Control Protocol |
LAN (TCP/IP), RS-232 (bidirectional), RS-485 (bidirectional), IR, I/O, Relay |
| Control Ports |
LAN, RS-232, RS-485, IR, I/O |
| Control Connector Type |
RJ45, 3.81mm Mini Phoenix, 5-pin 3.81mm Mini Phoenix, 2-pin 3.81mm Mini Phoenix |
| Power |
|
| Power Input |
PoE (IEEE 802.3af), DC 12–24V/1A via 2-pin Phoenix |
| Power Supply |
AC 100–240V, 50/60Hz |
| Power Consumption |
0.48W max |
| Environment |
|
| Operating Temperature |
32° to 104°F / 0° to 40°C |
| Storage Temperature |
4° to 140°F / 0° to 60°C |
| Relative Humidity |
20–90% RH, non-condensing |
| Enclosure |
|
| Rack Mounting Option |
No |
| Product Dimensions (W × D × H) |
5.79 in × 5.12 in × 1.65 in / 147mm × 130mm × 42mm |
| Weight |
1.48 lbs / 673g |
| Warranty |
|
| Parts |
3 Years |
| Labor |
3 Years |

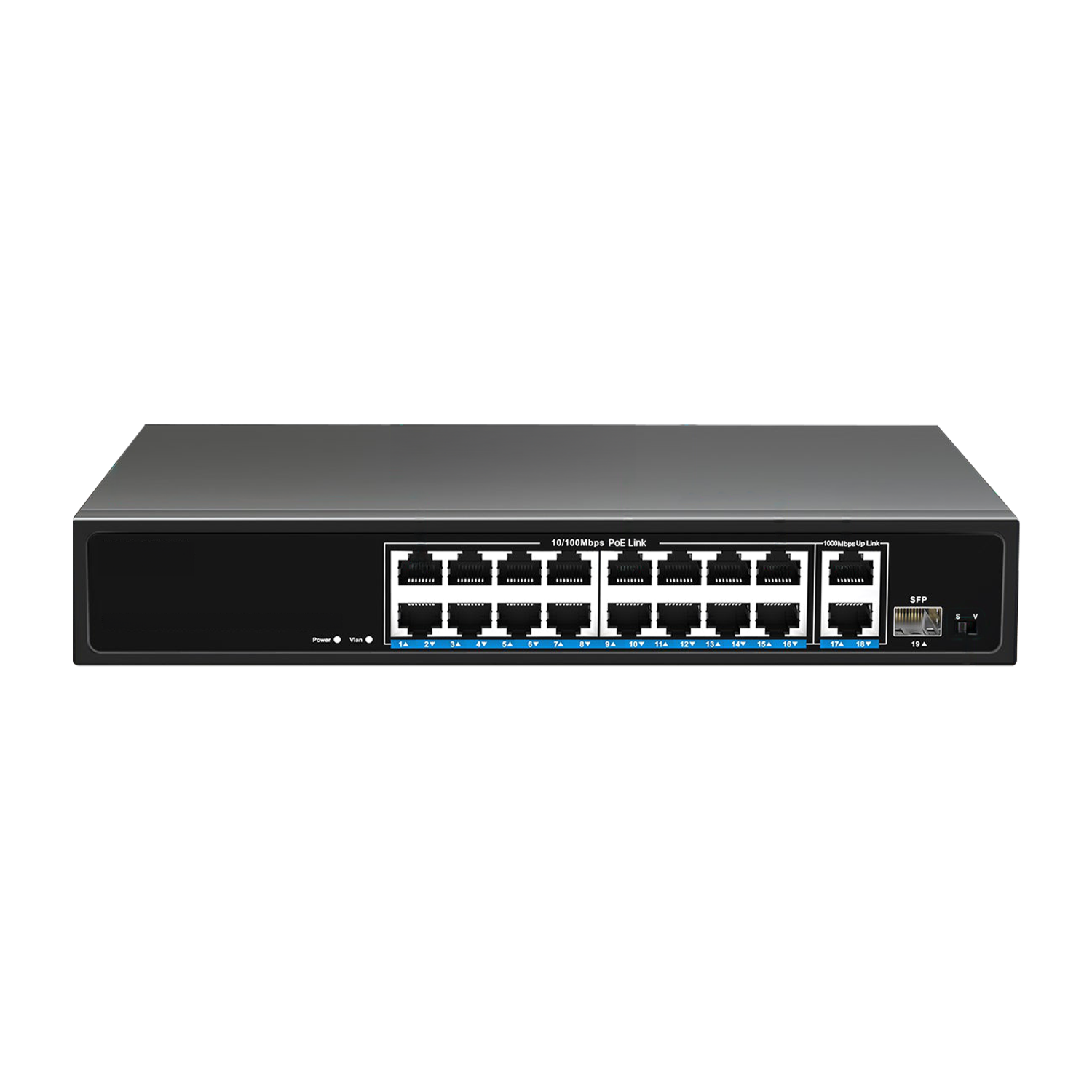

NICGIGA 16-Port PoE Network Switch
| Standards & Compliance |
|
| Network Protocol |
IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab |
| Connector Types & Features |
|
| Switch Type |
Unmanaged, plug-and-play |
| Ports |
16 × 10/100Mbps RJ45 PoE ports, 2 × 10/100/1000Mbps uplink ports, 1 × SFP 1000Mbps uplink port |
| Switching Capacity |
12 Gbps |
| PoE Port |
30W max |
| Packet Forwarding Rate |
10BASE-TX: 14,880 pps/port; 100BASE-TX: 148,800 pps/port; 1000BASE-TX: 1,488,000 pps/port |
| Power |
|
| Power Consumption |
250W max |
| Environment |
|
| Operating Temperature |
14° to 131°F / -10° to 55°C |
| Enclosure |
|
| Product Dimensions (W × D × H) |
10.63 in × 7.13 in × 1.73 in / 270mm × 181mm × 44mm |
| Weight |
3.20 lbs / 1.45kg |
| Warranty |
|
| Parts |
1 Year |
| Labor |
1 Year |

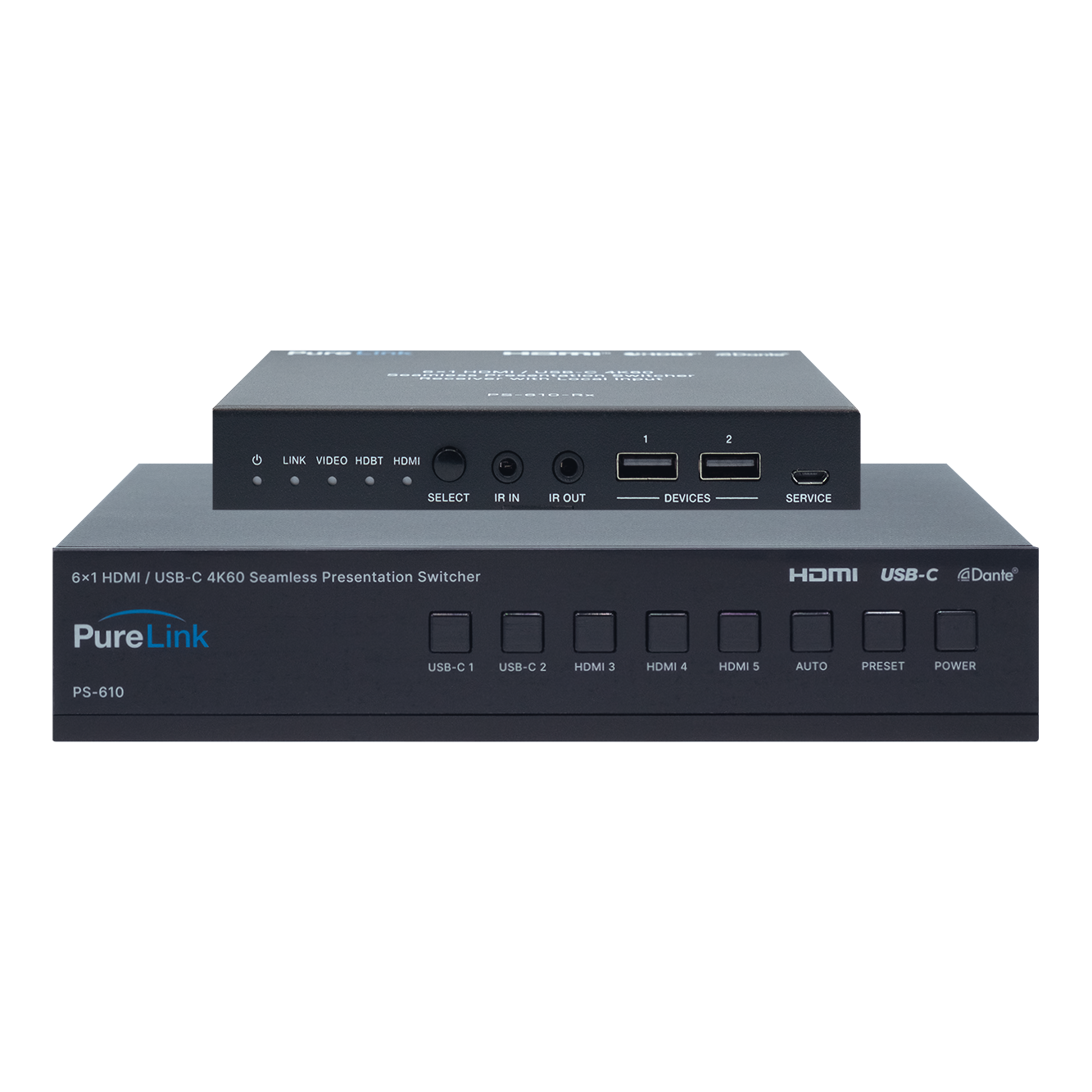

PureLink PS-610 6×1 HDMI/USB-C 4K60 Presentation Switcher
| Standards & Compliance |
|
| Signal Standards |
HDMI 2.0b, DisplayPort 1.2 |
| Matrix Connector Types |
|
| HDMI Inputs |
3 × HDMI IN (Type A, 19-pin female) |
| HDMI Output |
1 × HDMI OUT (Type A, 19-pin female) |
| USB-C Inputs |
2 × USB-C IN (24-pin female) |
| IR In |
1 × 3.5mm TRS |
| IR Out |
1 × 3.5mm TRS |
| RS-232 |
1 × 3-pin 3.5mm Phoenix |
| Audio In |
1 × 5-pin Phoenix |
| Audio Out |
1 × 5-pin Phoenix |
| HDBaseT |
1 × LAN (RJ45) |
| TCP/IP |
1 × LAN (RJ45) |
| Dante |
1 × LAN (RJ45) |
| USB Host |
1 × USB-B |
| USB Devices |
2 × USB-A |
| HDBaseT Receiver Connector Types |
|
| HDMI Input - RX |
1 × HDMI IN (Type A, 19-pin female) |
| HDMI Output - RX |
1 × HDMI IN (Type A, 19-pin female) |
| HDBaseT - RX |
1 × LAN (RJ45) |
| USB Host - RX |
1 × USB-B |
| USB Devices - RX |
2 × USB-A |
| Audio Out - RX |
1 × 5-pin Phoenix |
| IR In - RX |
1 × 3.5mm TRS |
| IR Out - RX |
1 × 3.5mm TRS |
| Service - RX |
1 × Micro USB |
| RS-232 - RX |
1 × 3-pin 3.5mm Phoenix |
| Performance |
|
| CATx Transmission Distance |
4K2K@60Hz: 40 m; 4K2K@30Hz: 70 m; 1080p@60Hz: 70 m |
| Transport |
HDBaseT 3.0 |
| Max Video Resolution |
4K60 (4:4:4) |
| HDR |
Input supports HDR; output does not support HDR |
| HDCP |
HDCP 2.2 |
| USB-C Charging Port |
60W max |
| RS-232 Support |
Yes |
| Network Bandwidth |
100 Mbps |
| Power Transmitter |
|
| Power Input |
DC 24V/8A |
| Power Supply |
AC 100–240V, 50/60Hz |
| Power Consumption |
150W max |
| Power Receiver |
|
| Power Supply - RX |
AC 100–240V, 50/60Hz |
| Environment |
|
| Operating Temperature |
32° to 104°F / 0° to 40°C |
| Storage Temperature |
-4° to 140°F / -20° to 60°C |
| Relative Humidity |
20–90% |
| Enclosure |
|
| Product Dimensions (W × D × H) |
Matrix: 8.66 in × 5.91 in × 1.73 in / 220mm × 150mm × 44mm; RX: 5.51 in × 4.13 in × 0.85 in / 140mm × 105mm × 21.5mm |
| Weight |
Matrix: 2.67 lbs / 1.21kg; RX: 0.93 lbs / 424g |
| Warranty |
|
| Parts |
3 Years |
| Labor |
3 Years |

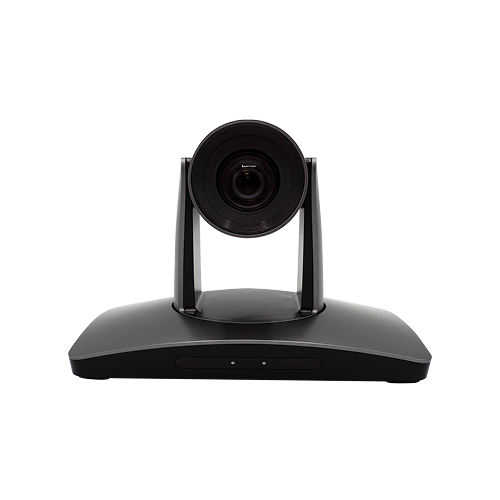

PureLink VIP-CAM-30-20X HD PTZ Camera
| Standards & Compliance |
|
| Signal Standards |
HDMI 1.3, USB 2.0 |
| HDCP |
HDCP 1.4, HDCP 2.2 |
| Regulatory Certifications |
CE, FCC, RoHS |
| Connector Types |
|
| HDMI Output |
1 × HDMI OUT (Type A, 19-pin female) |
| USB Device |
1 × USB-B |
| RS-232 Input |
1 × 8-pin mini-DIN connector |
| RS-232 Output |
1 × 8-pin mini-DIN connector |
| LAN |
1 × RJ45 |
| Line In |
1 × 3.5mm TRS |
| Performance |
|
| Max Video Resolution |
1920 × 1080p60 |
| PTZ |
MPT, ePTZ |
| Sensor |
1/2.8 in CMOS, 2.14MP |
| Lens |
Pan Angle: -170° to +170°; Tilt Angle: -30° to +90°; Pan Speed: 0.1°/s to 120°/s; Tilt Speed: 0.1°/s to 80°/s |
| Preset Number |
256 |
| Digital Noise Reduction |
2D and 3D Digital Noise Reduction |
| Video S/N |
≥50 dB |
| Image Flip |
Supported |
| OSD |
Supported |
| Backlight Compensation |
Supported |
| Video Compression |
H.264, H.265 |
| Audio Compression |
AAC |
| Focal Length |
3.9mm to 46.8mm |
| Protocols |
TCP, UDP, RTSP, ONVIF |
| Control Protocols |
VISCA and daisy-chain support, PELCO-P, PELCO-D |
| Iris |
F1.6 to F2.8 |
| Zoom |
20× optical, 8× digital |
| Wide Dynamic Range |
Yes |
| Horizontal View Angle |
72.5° to 6.3° |
| Focus System |
Auto, Manual, PTZ Trigger, One-Push Trigger |
| Shutter Speed |
1/50s to 1/10,000s |
| White Balance |
Auto, One Push, Manual, Static |
| Exposure Control |
Auto, Manual, Shutter Priority, Iris, Bright |
| Minimum Illumination |
0.5 Lux |
| PoE Support |
IEEE 802.3af |
| Power |
|
| Power Input |
DC 12V/1.2A |
| Power Consumption |
18W max |
| Environment |
|
| Operating Temperature |
32° to 104°F / 0° to 40°C |
| Storage Temperature |
-4° to 140°F / -20° to 60°C |
| Relative Humidity |
Operating: 10–90%; Storage: 10–95% |
| Enclosure |
|
| Mounting Option |
Wall, ceiling |
| Product Dimensions (W × D × H) |
9.57 in × 5.71 in × 6.42 in / 243mm × 145mm × 163mm |
| Weight |
2.65 lbs / 1200g |
| Warranty |
|
| Parts |
3 Years |
| Labor |
3 Years |
PureLink DIO-AMP150 Dante 150W Class D Amplifier with DSP
| Standards & Compliance |
|
| Signal Standards |
Dante, AES67 |
| Amplifier Type |
Class D |
| Connector Types |
|
| Line In |
1 × 5-pin 3.81mm Phoenix connector |
| Line Out |
1 × 5-pin 3.81mm Phoenix connector |
| 4/8Ω AMP OUT |
1 × MSTB 2.5-GF-5.08, 4-pin locking Phoenix, 5.08mm |
| 70V/100V AMP OUT |
1 × MSTB 2.5-GF-5.08, 4-pin locking Phoenix, 5.08mm |
| Dante |
1 × LAN (RJ45) |
| LAN |
1 × LAN (RJ45) |
| RS-232 |
1 × 5-pin 3.81mm Phoenix connector |
| Performance |
|
| Amplifier Output |
150W single-channel, 75W two-channel |
| Audio Format |
LINE IN: Analog audio, balanced 2CH, max input level 2Vrms; LINE OUT: Analog audio, balanced 2CH, max output level 2Vrms; Dante: Digital audio 2 × 2 in/out, PCM 2CH, 44.1–96kHz, 16/24-bit; AMP OUT: Analog audio, balanced 2CH, max output level 24.5Vrms; 70V/100V AMP OUT: Analog audio, unbalanced 1CH, max output level 70V/100Vrms |
| Input Sensitivity |
Full power at 0.775V (0dBu) |
| Maximum Voltage Gain |
27–30dB SE / 39–42dB BTL |
| Dante Port |
Single |
| Frequency Response |
20Hz–20kHz at ±3dB |
| Signal-to-Noise Ratio |
87dB, 20Hz–10kHz |
| THD+N |
0.04% at 1kHz/1W |
| ESD Protection |
Human Body Model: ±8kV air-gap discharge and ±4kV contact discharge |
| DSP |
Yes |
| Communications & Control |
|
| Control Ports |
LAN, RS-232 |
| Network |
Dante, AES67 |
| Control Connector Type |
RJ45, 3.81mm Mini Phoenix |
| Power |
|
| Amplifier Output Configuration |
2 × 75W at 4Ω/8Ω, 1 × 150W at 8Ω, 1 × 150W at 70V/100V |
| Power Supply |
AC 100–240V, 50/60Hz |
| Power Consumption |
150W max |
| Environment |
|
| Operating Temperature |
32° to 104°F / 0° to 40°C |
| Storage Temperature |
-4° to 140°F / -20° to 60°C |
| Relative Humidity |
20–90% |
| Enclosure |
|
| Product Dimensions (W × D × H) |
9.45 in × 8.27 in × 1.73 in / 240mm × 210mm × 44mm |
| Weight |
4.14 lbs / 1880g |
| Warranty |
|
| Parts |
3 Years |
| Labor |
3 Years |

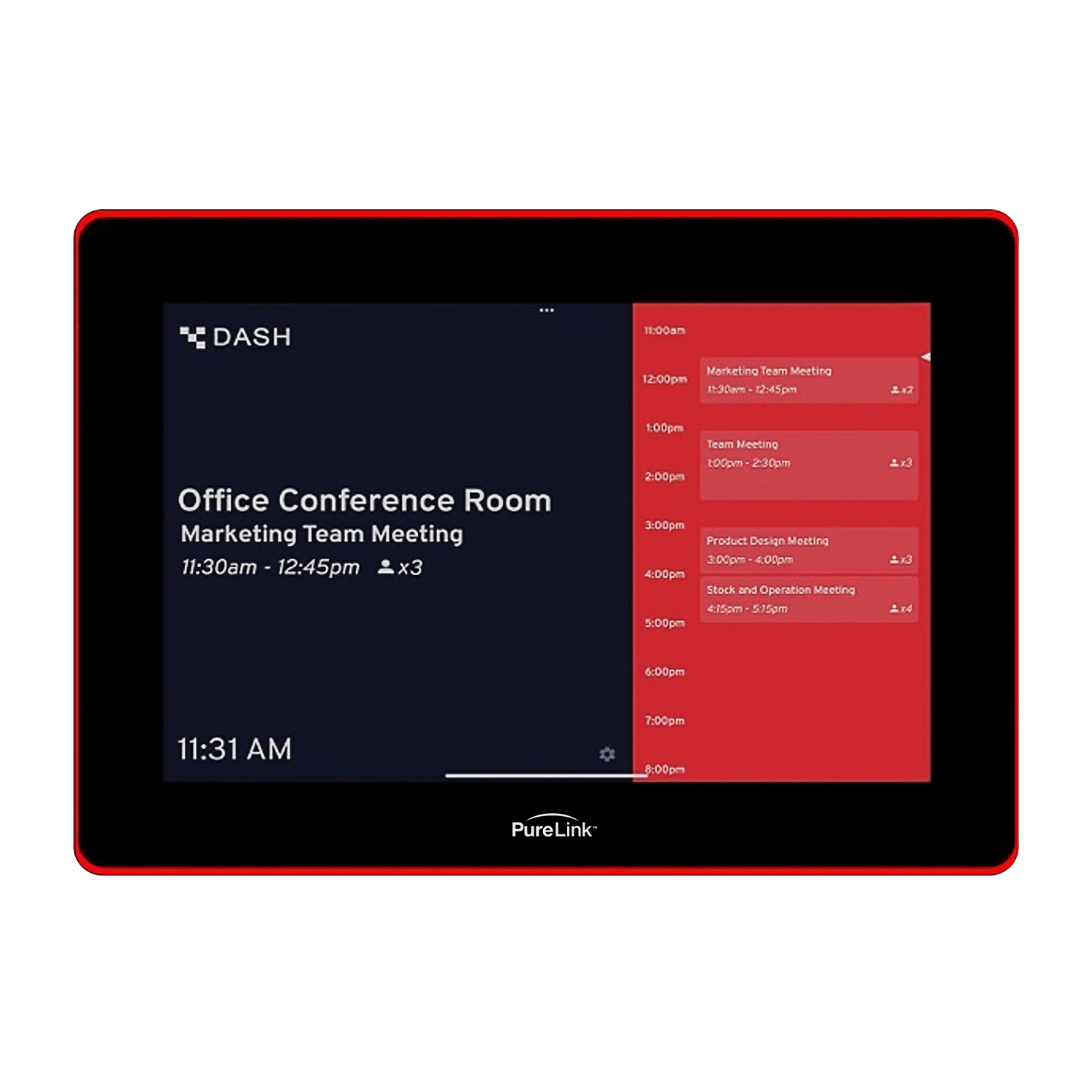

PureLink RoomView-110W Wall-Mount Room Scheduling Touchscreen
| Standards & Compliance |
|
| Signal Standards |
USB 2.0, USB 3.0 |
| Mechanical Features |
|
| Touch Panel Size |
10.1 in |
| Touch Panel Resolution |
1280 × 800 |
| Touch Type |
Capacitive touchscreen |
| CPU |
RK3566 Quad-Core 64-bit Cortex-A55, up to 1.8GHz |
| RAM |
2GB |
| ROM |
16GB |
| Operating System |
Android 11 |
| Wi-Fi |
802.11b/g/n |
| Bluetooth |
Bluetooth 5 |
| Ethernet |
100Mbps Ethernet |
| USB |
USB 2.0, USB 3.0 |
| Control |
LAN (RJ45) |
| Power |
|
| Power Input |
PoE, DC 12V/2A |
| Enclosure |
|
| Mounting Option |
Wall |
| Warranty |
|
| Parts |
3 Years |
| Labor |
3 Years |
