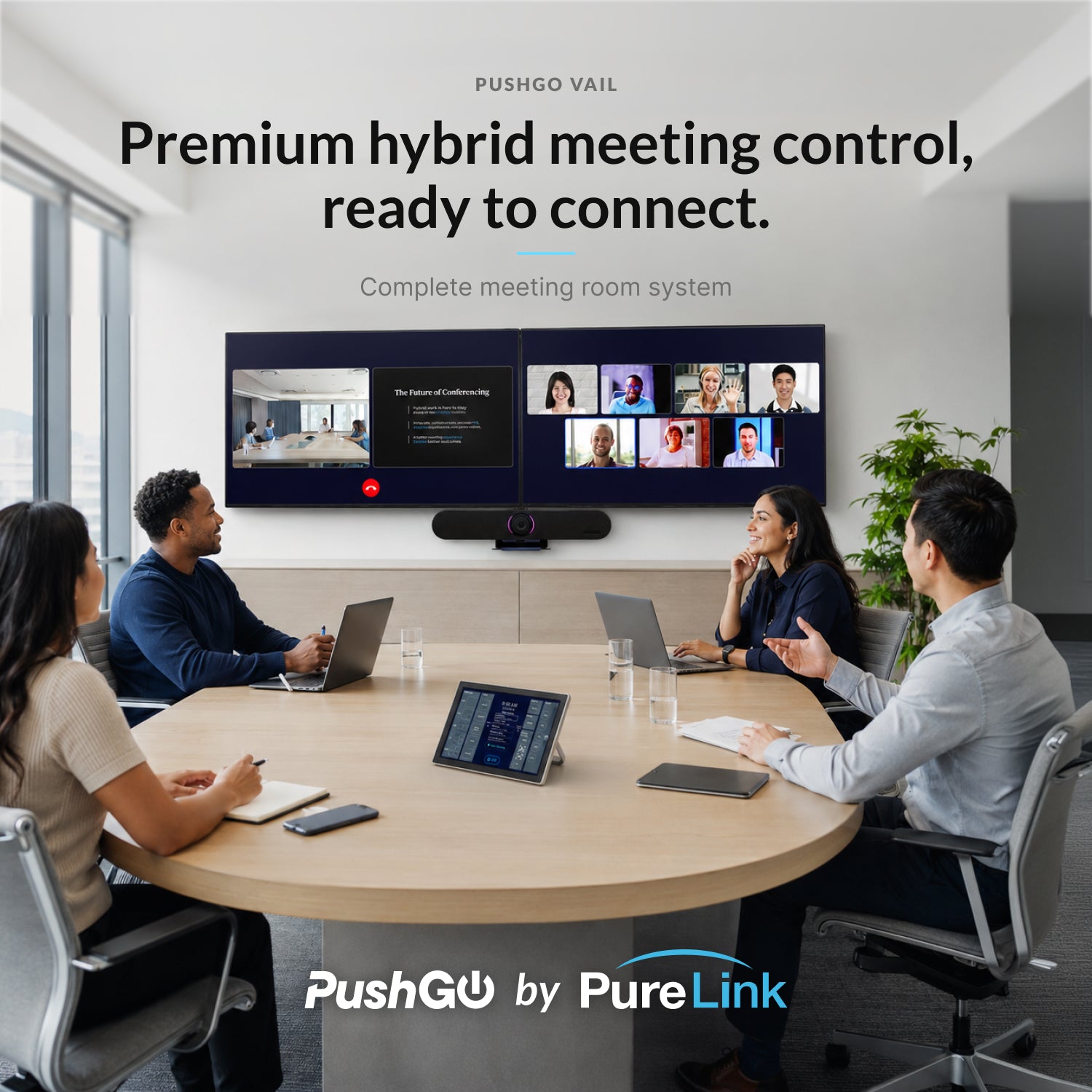

PushGo Vail transforms hybrid meeting rooms and executive spaces into fully equipped, connected meeting environments with a complete all-in-one meeting system. Built as a “meeting space system in a box,” PushGo Vail combines professional video, audio, control, switching, and cabling into one streamlined solution for seamless remote collaboration.
Delivered pre-configured and pre-programmed, PushGo Vail arrives ready for same-day installation, allowing remote meeting spaces to be operational immediately. Its 4K PTZ camera, beamforming microphone array, and integrated soundbar automatically track active speakers, while Smart Gallery mode creates individual video tiles for each participant, providing professional-grade clarity and presence.

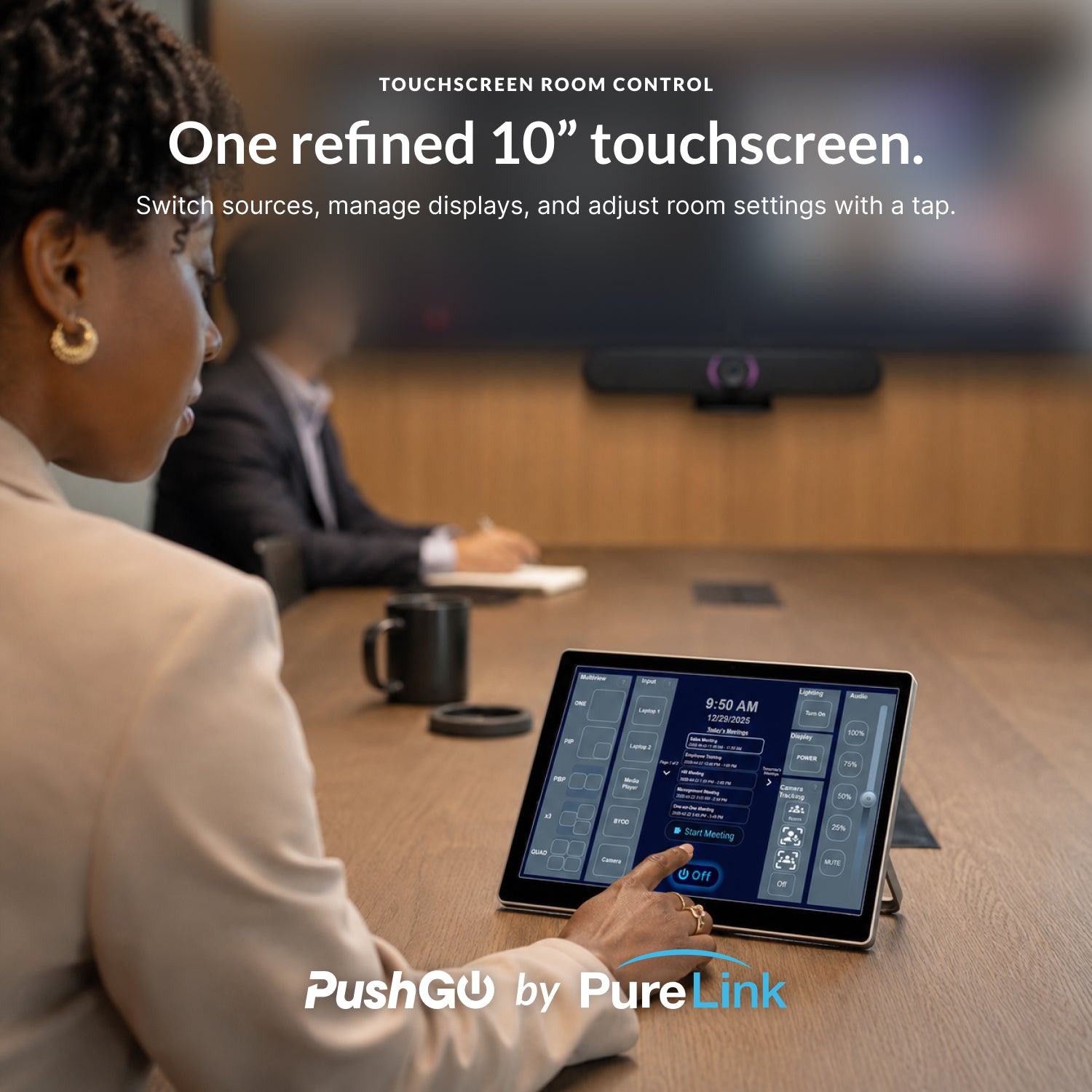

The 10-inch touchscreen provides intuitive control over camera angles, audio levels, and lighting. Compatible with Zoom, Microsoft Teams, and Google Meet, PushGo Vail ensures every virtual meeting feels natural and unified.

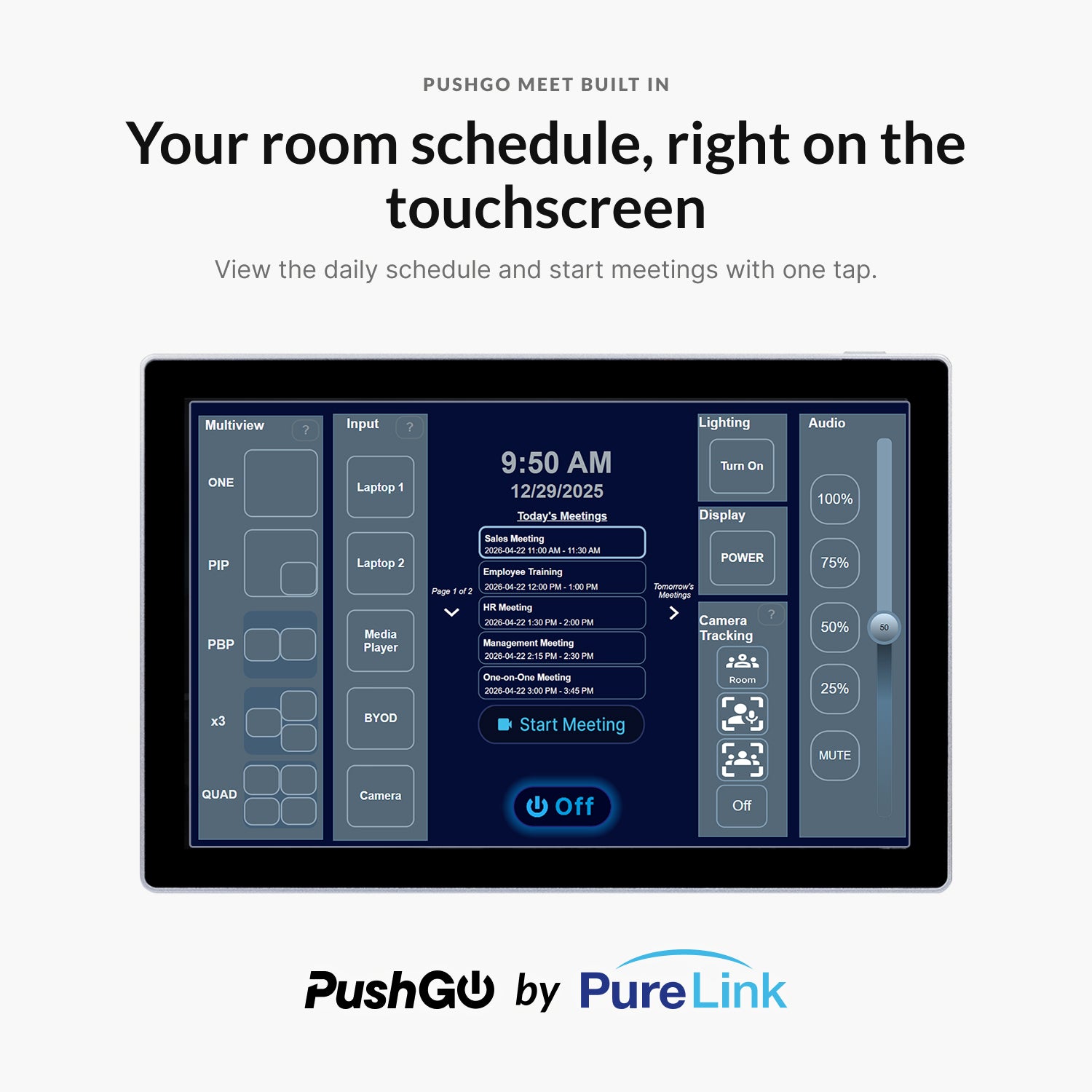

With PushGo Meet now built in, Vail also brings your daily meeting schedule directly to the touchscreen. Once connected to your Outlook or Google Calendar account, your meetings appear directly on the PushGo touchscreen so you can start sessions with a single tap, stay aligned with real-time updates, and move through your day without interruption.
By combining intelligent video, high-quality audio, touchscreen control, and built-in scheduling awareness, PushGo Vail delivers polished, efficient, and professional remote meeting experiences.
Customization Available: Each PushGo package can be tailored to your specific needs, including interface or hardware options. Contact us for more details on how to customize your system.
Key Features
- Fully pre-configured and ready to perform
- Plug-and-play design for same-day setup

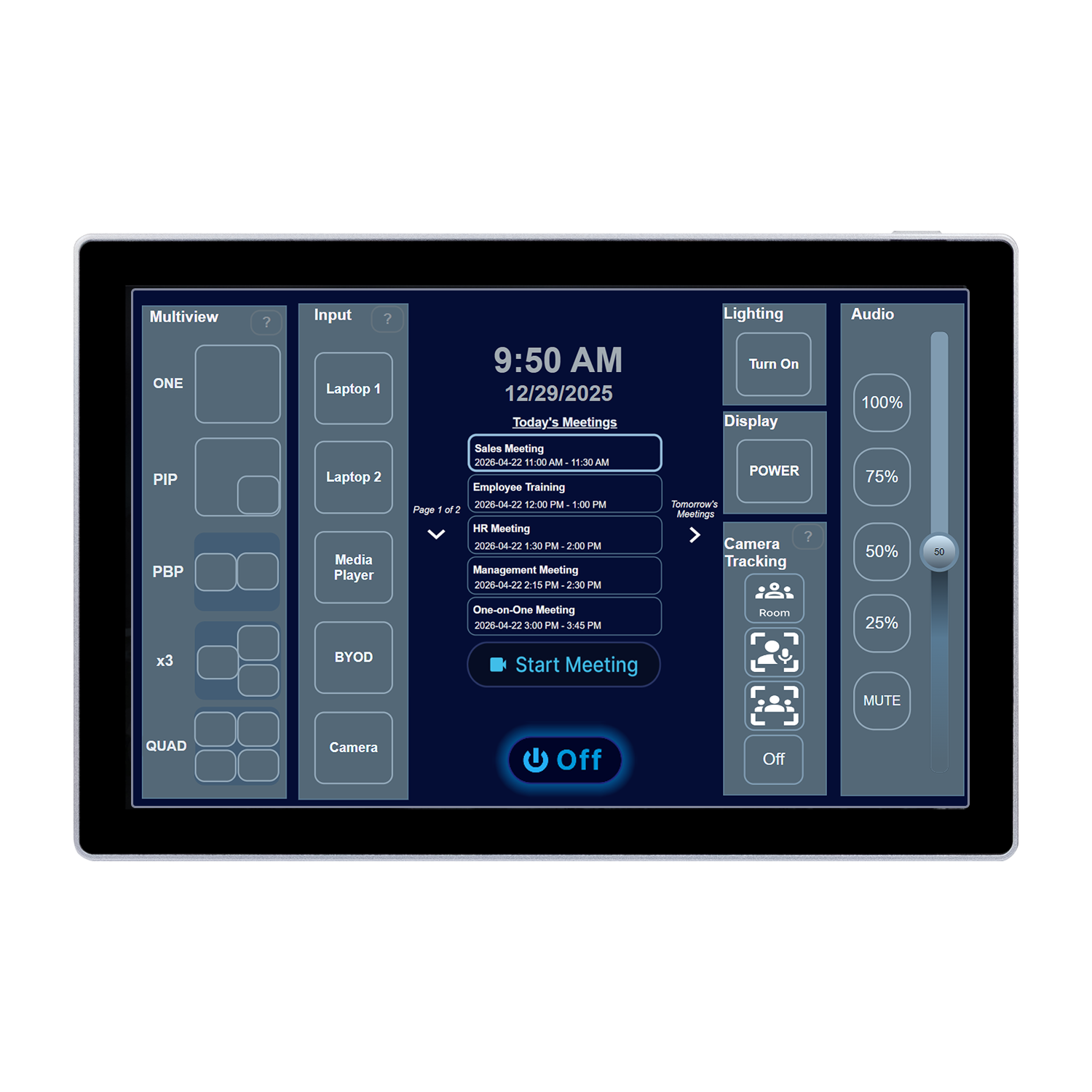

- Premium 10” touchscreen control for camera, audio, sources, and room settings
- All-in-one 4K PTZ camera, microphone, and soundbar

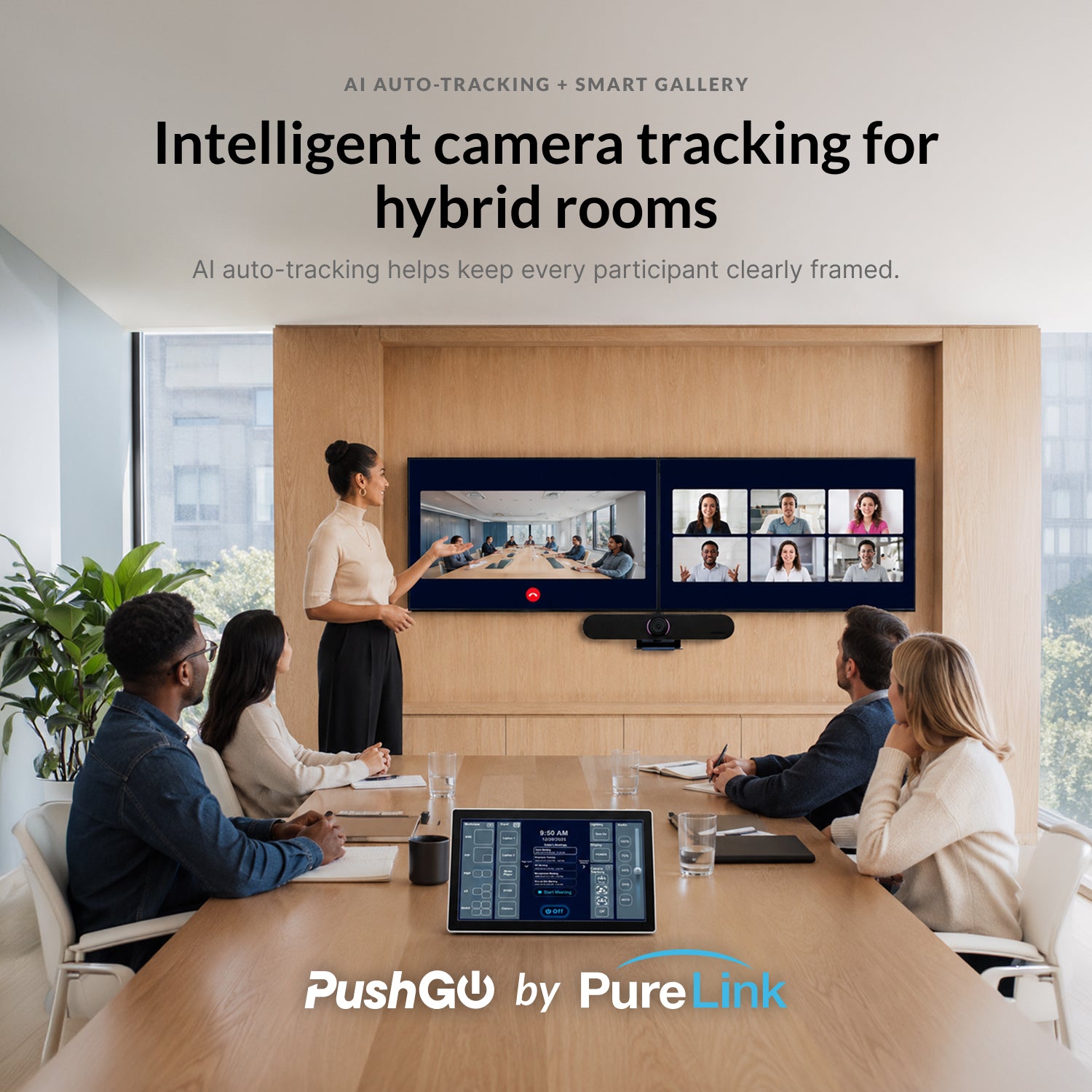

- AI auto-tracking and Smart Gallery view
- Flexible multiview layouts for simultaneous screen sharing
- Supports up to six HDMI or USB-C devices
- Don’t Blink™ Switching for seamless, instant source transitions
- Built-in calendar-connected meeting control with PushGo Meet
- Connects with Outlook and Google Calendar after account setup
- Daily meeting schedule displayed directly on the PushGo touchscreen
- One-touch meeting start from the touchscreen
- Real-time schedule updates for newly added, moved, or canceled meetings
- View current and upcoming meetings at a glance
- Compatible with Zoom, Microsoft Teams, Google Meet, GoToMeeting, and more
- Includes all essential hardware and cables
- Complimentary logo branding on touchscreen
- Ideal for hybrid meeting rooms, executive offices, and small conference spaces
Specifications
PureLink iCON-T10 Tabletop Touchscreen Controller
| Standards & Compliance |
|
| Compliance |
TAA |
| Regulatory Certifications |
CE, FCC, RoHS, UL |
| Communications & Control |
|
| Programming |
iCON EZControl IDE |
| Control Protocol |
LAN (TCP/IP), RS-485 (bidirectional) |
| Control Ports |
LAN, RS-485 |
| Control Connector Types |
RJ45, 3.81mm Phoenix connector (3-pin) |
| Mechanical Features |
|
| Touch Panel Size |
10 in |
| Touch Panel Resolution |
1280 × 800 |
| Network Port |
1 × LAN (RJ45) |
| RS-232/485 Port |
1 × 3.81mm Phoenix connector (3-pin) |
| Debug |
1 × Micro USB |
| Power |
|
| Power Input |
PoE (IEEE 802.3af), DC 24V/1A via 2-pin Phoenix |
| Power Supply |
Alternative Power: AC 100–240V |
| Power Consumption |
6W max |
| Environment |
|
| Operating Temperature |
32° to 104°F / 0° to 40°C |
| Relative Humidity |
10–90% RH, non-condensing |
| Enclosure |
|
| Mounting Option |
Table |
| Product Dimensions (W × D × H) |
9.66 in × 6.46 in × 1.06 in / 245.4mm × 164mm × 27mm |
| Weight |
1.96 lbs / 887g |
| Warranty |
|
| Parts |
1 Year |
| Labor |
1 Year |
PureLink iCON-E1 Control Expander
| Standards & Compliance |
|
| Compliance |
TAA |
| Regulatory Certifications |
FCC, CE, RoHS, UKCA |
| Communications & Control |
|
| Programming |
iCON EZControl IDE |
| Control Protocol |
LAN (TCP/IP), RS-232 (bidirectional), RS-485 (bidirectional), IR, I/O, Relay |
| Control Ports |
LAN, RS-232, RS-485, IR, I/O |
| Control Connector Types |
RJ45, 3.81mm Mini Phoenix, 5-pin 3.81mm Mini Phoenix, 2-pin 3.81mm Mini Phoenix |
| Power |
|
| Power Input |
PoE (IEEE 802.3af), DC 12–24V/1A via 2-pin Phoenix |
| Power Supply |
AC 100–240V, 50/60Hz |
| Power Consumption |
0.48W max |
| Environment |
|
| Operating Temperature |
32° to 104°F / 0° to 40°C |
| Storage Temperature |
4° to 140°F / 0° to 60°C |
| Relative Humidity |
20–90% RH, non-condensing |
| Enclosure |
|
| Rack Mounting Option |
No |
| Product Dimensions (W × D × H) |
5.79 in × 5.12 in × 1.65 in / 147mm × 130mm × 42mm |
| Weight |
1.48 lbs / 673g |
| Warranty |
|
| Parts |
3 Years |
| Labor |
3 Years |

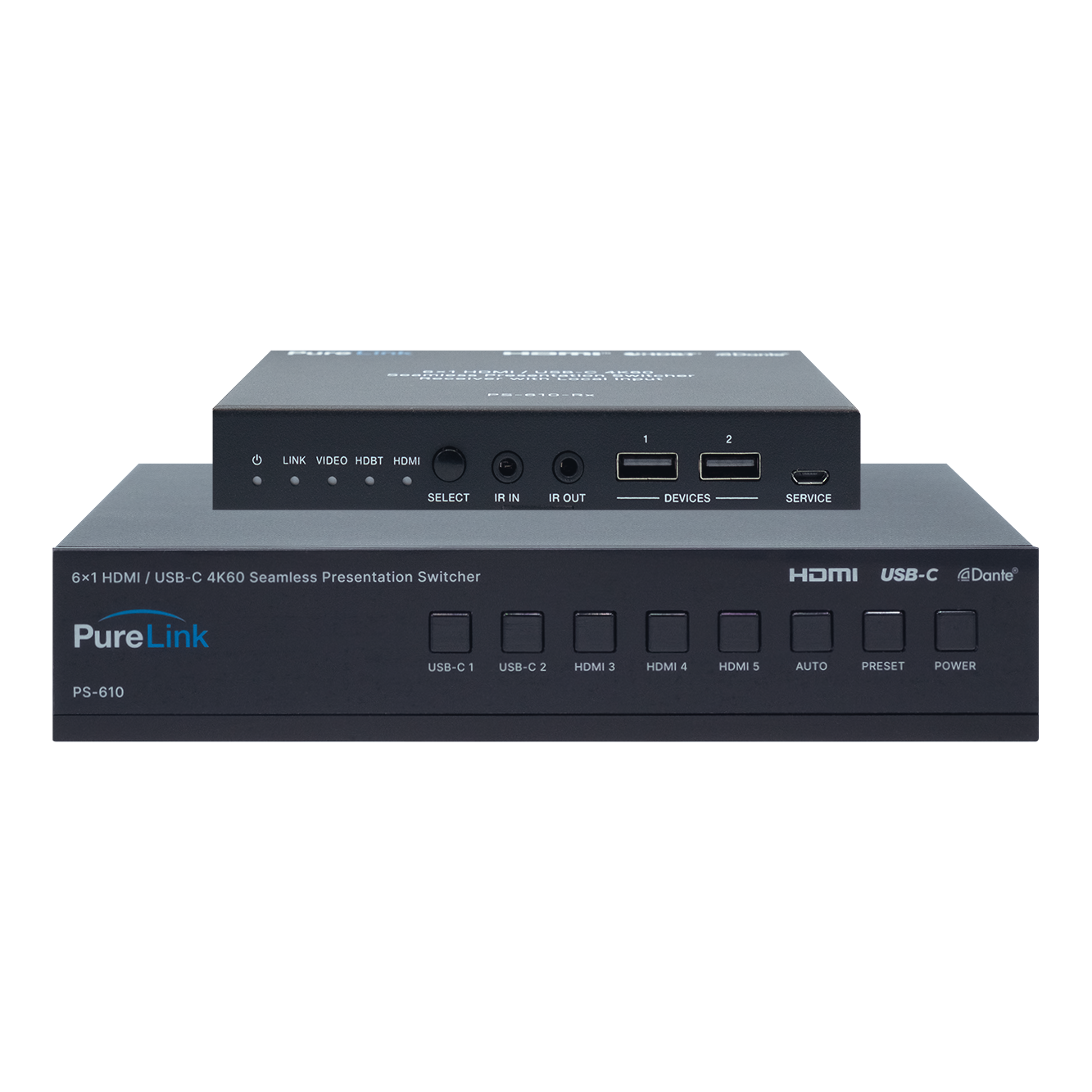

PureLink PS-610 6×1 HDMI/USB-C 4K60 Presentation Switcher
| Standards & Compliance |
|
| Signal Standards |
HDMI 2.0b, DisplayPort 1.2 |
| Matrix Connector Types |
|
| HDMI Inputs |
3 × HDMI IN (Type A, 19-pin female) |
| HDMI Output |
1 × HDMI OUT (Type A, 19-pin female) |
| USB-C Inputs |
2 × USB-C IN (24-pin female) |
| IR In |
1 × 3.5mm TRS |
| IR Out |
1 × 3.5mm TRS |
| RS-232 |
1 × 3-pin 3.5mm Phoenix |
| Audio In |
1 × 5-pin Phoenix |
| Audio Out |
1 × 5-pin Phoenix |
| HDBaseT |
1 × LAN (RJ45) |
| TCP/IP |
1 × LAN (RJ45) |
| Dante |
1 × LAN (RJ45) |
| USB Host |
1 × USB-B |
| USB Devices |
2 × USB-A |
| HDBaseT Receiver Connector Types |
|
| HDMI Input - RX |
1 × HDMI IN (Type A, 19-pin female) |
| HDMI Output - RX |
1 × HDMI OUT (Type A, 19-pin female) |
| HDBaseT - RX |
1 × LAN (RJ45) |
| USB Host - RX |
1 × USB-B |
| USB Devices - RX |
2 × USB-A |
| Audio Out - RX |
1 × 5-pin Phoenix |
| IR In - RX |
1 × 3.5mm TRS |
| IR Out - RX |
1 × 3.5mm TRS |
| Service - RX |
1 × Micro USB |
| RS-232 - RX |
1 × 3-pin 3.5mm Phoenix |
| Performance |
|
| CATx Transmission Distance |
4K2K@60Hz: 40 m; 4K2K@30Hz: 70 m; 1080p@60Hz: 70 m |
| Transport |
HDBaseT 3.0 |
| Max Video Resolution |
4K60 (4:4:4) |
| HDR |
Input supports HDR; output does not support HDR |
| HDCP |
HDCP 2.2 |
| USB-C Charging Port |
60W max |
| RS-232 Support |
Yes |
| Network Bandwidth |
100 Mbps |
| Power Transmitter |
|
| Power Input |
DC 24V/8A |
| Power Supply |
AC 100–240V, 50/60Hz |
| Power Consumption |
150W max |
| Power Receiver |
|
| Power Supply - RX |
AC 100–240V, 50/60Hz |
| Environment |
|
| Operating Temperature |
32° to 104°F / 0° to 40°C |
| Storage Temperature |
-4° to 140°F / -20° to 60°C |
| Relative Humidity |
20–90% |
| Enclosure |
|
| Product Dimensions (W × D × H) |
Matrix: 8.66 in × 5.91 in × 1.73 in / 220mm × 150mm × 44mm; RX: 5.51 in × 4.13 in × 0.85 in / 140mm × 105mm × 21.5mm |
| Weight |
Matrix: 2.67 lbs / 1.21kg; RX: 0.93 lbs / 424g |
| Warranty |
|
| Parts |
3 Years |
| Labor |
3 Years |
TL-SG108PE 8-Port Network Switch
| Connector Types & Features |
|
| Ports |
4 × PoE+ ports, 8 × Gigabit RJ45 ports |
| Switching Capacity |
16 Gbps |
| Packet Forwarding Rate |
11.9 Mpps |
| Packet Buffer Memory |
1.5 Mb |
| Jumbo Frame |
15 KB |
| Power |
|
| Power Consumption |
74.27W max |
| Enclosure |
|
| Product Dimensions (W × D × H) |
6.2 in × 4.0 in × 1.0 in / 158mm × 101mm × 25mm |
| Warranty |
|
| Parts |
3 Years |
| Labor |
3 Years |

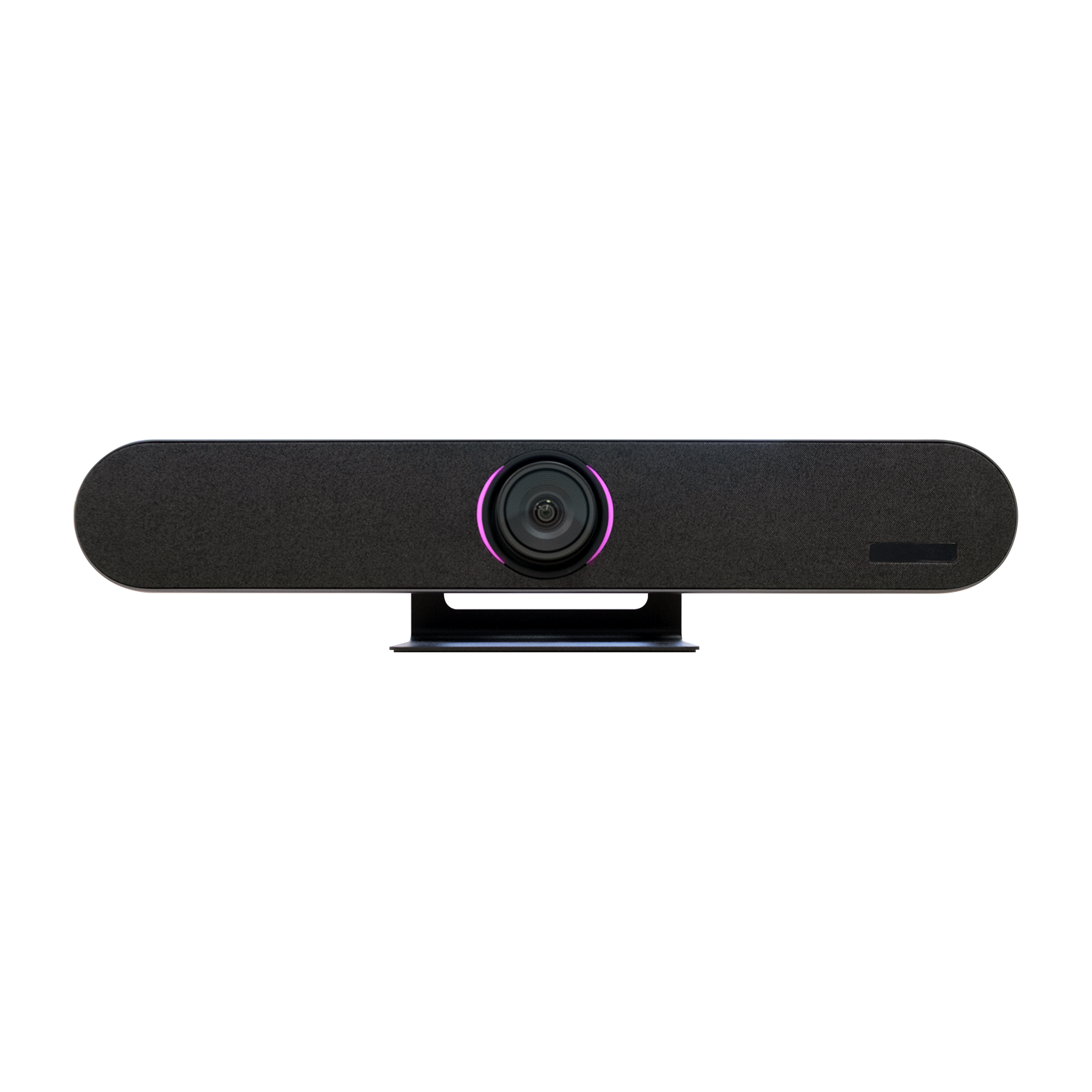

PureLink HUDDLE-CAM-500 All-in-One 4K Auto-Tracking PTZ Camera, Soundbar and Microphone
| Standards & Compliance |
|
| Signal Standards |
HDMI 1.4b, USB-C (DP Alt Mode), USB 3.0, USB 2.0 |
| HDCP |
HDCP 1.4, HDCP 2.2 |
| Regulatory Certifications |
CE, FCC, RoHS |
| Connector Types |
|
| HDMI Output |
1 × HDMI OUT (Type A, 19-pin female) |
| USB Output |
1 × USB-C (DP Alt Mode) |
| USB Devices |
1 × USB-A |
| LAN |
1 × RJ45 |
| EXT |
1 × RJ45 |
| Performance |
|
| Max Video Resolution |
4K30 |
| AI Auto-Tracking |
Smart Gallery, Single-Speaker Framing, Group-Speaker Framing |
| PTZ |
MPT, ePTZ |
| Sensor |
1/1.8 in CMOS, 20MP |
| Lens |
120° DFOV, 110° HFOV, 5× Digital Zoom, Pan/Tilt ±15° |
| Digital Noise Reduction |
2D and 3D Digital Noise Reduction |
| Focal Length |
f=2.8mm, F1.8 |
| Video S/N |
≥55 dB |
| Backlight Compensation |
Supported |
| Full-Frequency Speaker |
96 dB SPL at 0.5 m |
| Microphone Array |
Beamforming microphone, pickup distance up to 6 m |
| Extended Microphone |
Supported, optional |
| Video Compression |
H.264, MJPEG |
| Pixel Format |
YUY2 |
| Audio 3A Algorithm |
AI-powered AEC, ANC and AGC |
| Sampling Rate |
Microphone: 48kHz; Speaker: 48kHz |
| USB Audio |
32kHz sampling rate, UAC 1.0 |
| USB Communication Protocol |
UVC 1.1 |
| UVC PTZ Control |
Compatible |
| PoE Support |
IEEE 802.3at |
| Power |
|
| Power Input |
DC 12V/5A |
| Environment |
|
| Operating Temperature |
32° to 104°F / 0° to 40°C |
| Storage Temperature |
-40° to 140°F / -40° to 60°C |
| Enclosure |
|
| Mounting Option |
Wall, table |
| Product Dimensions (W × D × H) |
23.6 in × 5.3 in × 4.53/4.6 in / 600mm × 135mm × 115/117mm |
| Weight |
1.96 lbs / 887g |
| Warranty |
|
| Parts |
3 Years |
| Labor |
3 Years |
